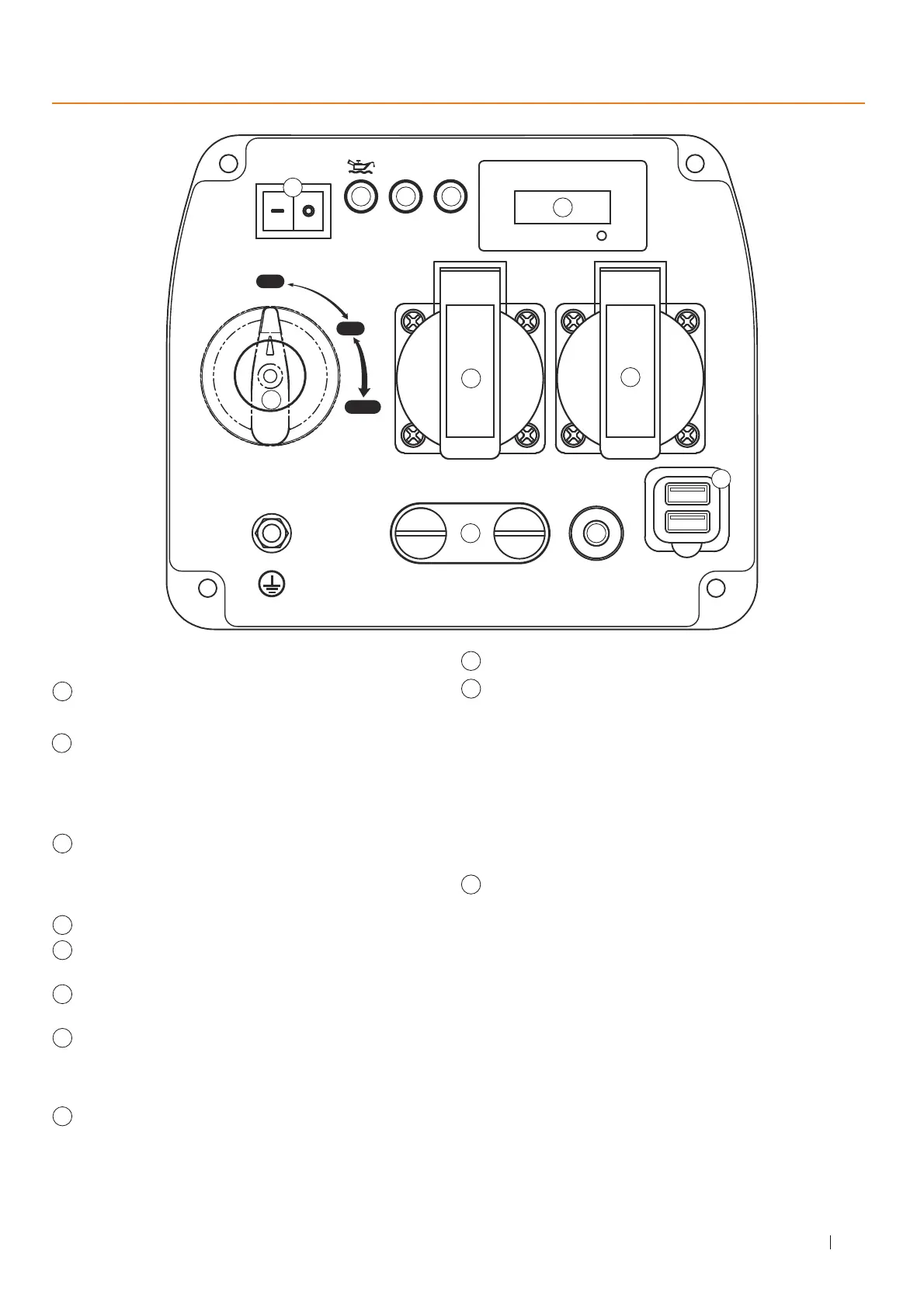

CONTROL PANEL FEATURES MXR2300
230 volts, 16-amp EU Outlet: The outlet is
capable of carrying a maximum of 16 amps.
AC Reset: If the inverter is overloaded, the
reset breaker trips. The engine continues to
run, but the inverter does not output any
power. Unplug the devices and reduce the
load. Push in the reset breaker to reset it.
Efficiency Mode Switch: When turned to
the ON position, the engine will sense the
load needed and run at a slower RMP to
save fuel.
Low Oil LED: Indicates low oil level.
Overload LED: Indicates the inverter is
overloaded.
Output Ready LED: Indicates the inverter
Engine Control Switch: Turn position to
is ready to be used.
Ground terminal: The ground terminal is
for external grounding of the inverter.
USB duplex: 5V DC with 1 amp and 2.1 amp.
Parallel Connectors: To increase AC power
output, the connector sockets are used to
connect two same type generator with
special paralleling cods. The connector
sockets are only used for communication
between the inverters, they can not be
used for AC power output. The special
paralleling cords are required to be
purchased separately and verified by
the certification body.
Multifunction Digital Display Meter:
Rolling display mode, respectively display
accumulative running time, output voltage,
frequency rolling display mode.
1
2
3
4
5
6
7
8
9
10
11
ECO SW.
OVERLOAD AC
ON
OFF
V. HZ . H
OUTPUT
AC 230V
AC RESET
USB
1A
2.1A
PARALLEL CONNECTORS
OFF
RUN
CHOKE
1
1
2
3
4
5
6
7
8
9
10
11
CHOKE to start the engine and turn to RUN
position once the engine is running. Switch
to OFF to stop inverter.
