MAXPEEDINGRODS MXR3500S - Control Panel Features

9
MAXPEEDINGRODS

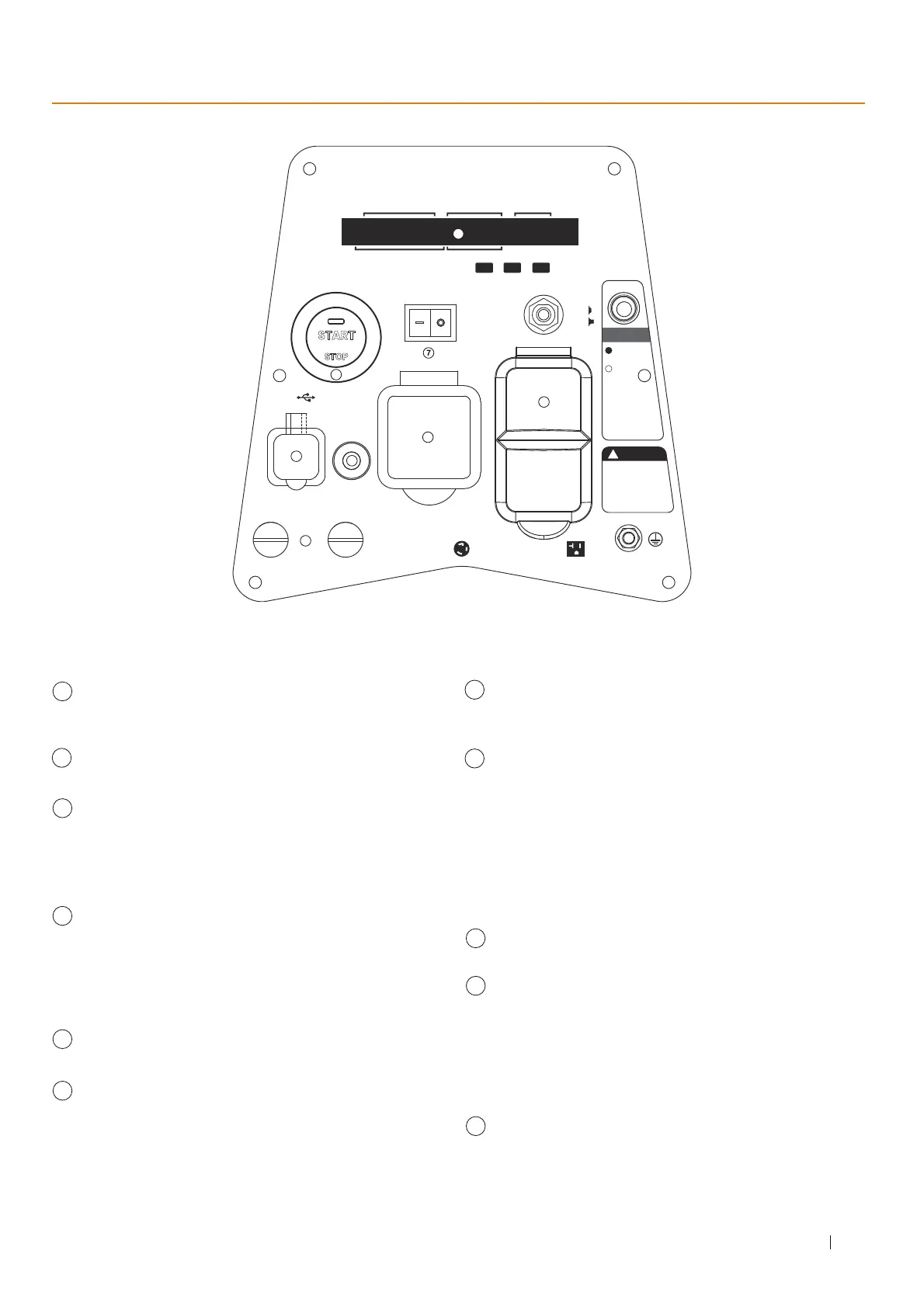

CONTROL RANEL FEATURES MXR3500S
FEATURES
120-Volt, 20-AMP Duplex Outlet (NEMA 5-20R):
The outlet is capable of carrying a maximum
of 20 amps.
USB Duplex: 5V DC that come in 1 amps and
2.1 amps.
AC Reset: If the inverter is overloaded, the
reset breaker will trip. The engine will continue
to run, but there will be no output from the
inverter. Unplug the devices and reduce the
load. Push in the reset breaker to reset it.
One Push Start: Press this button, the engine
can start and stop Press this button for 3-5
seconds until the green light is on, and then
press the ON/OFF button on the remote
control key until the light is off. At this time,
the remote control matches successfully.
Ground Terminal: The ground terminal is
used to externally ground the inverter.
Multifunctional LED Digital Display Meter:
Red light ( LOW OIL ) means that the amount
of oil is too low, red light (OVERLOAD) means
that the machine overload, green light (POWER)
means normal operation. LED Digital Display
shows time, voltage, power, frequency and fuel
level; Time: scrolling display of single running
time and accumulated running time.
Efficiency Mode Switch: When turned to the
ON position, the engine will sense the load
needed and run at a slower RPM to save fuel.
Parallel Connectors: To increase AC power
output, the connector sockets are used to
connect the two same type generator with
special paralleling cords.The connector
sockets is only used to the communication
between the inverters. they can not used for
AC power output. The special paralleling
cords shall be purchase separately, and they
shall be approved by certification body.
AC Protector: If the inverter is overload, the
AC protector will trip to block current.
CO Alarm: Flashing red light: dangerous
levels of carbon monoxide gas have built up
leave immediately until area has aired out.
Move generator to well-ventilated area
before operation. Flashing yellow light: carbon
monoxide sensor malfunction, sensor
needs service.
1
2
3
4
5
6
7
8
9
10
120-Volt, 30-AMP Outlet (L5-30): The outlet is
capable of carrying a maximum of 30 amps.
11
DIGITAL DISPLAY CENTER
HOURS
GASOLINE FUEL METER FREQUENCY
POWER
START UP
USB
REST
PARALLEL
AC 120V 30A
NEUTRAL BONDED TO FRAME
AC 120V 20A
NEUTRAL BONDED TO FRAME
PUSH TO
SYSTEM BONDED TO FRAME
LOW IDLE
MAINTENANCE
REQUIRED SEE
MANUAL
CARBON
MONOXIDE
DETECTED
This generator
comes equipped with
CO ALERT, advanced
technology to prevent
death or injury from
carbon monoxide
poisoning.
DO NOT CONNECT OR
DISCONNECT PARALLEL
CABLES WHILE UNIT IS
RUNNING TO AVOID
DAMAGE.
20A
ON UN
OFF/R ET
NO OFF
OVERLOAD LOW OIL
VOLTAGE LOAD
CO ALERT
!
CAUTION
6
4
2
3
8
11
1
9
10
5
