Chapter 3 Product Description

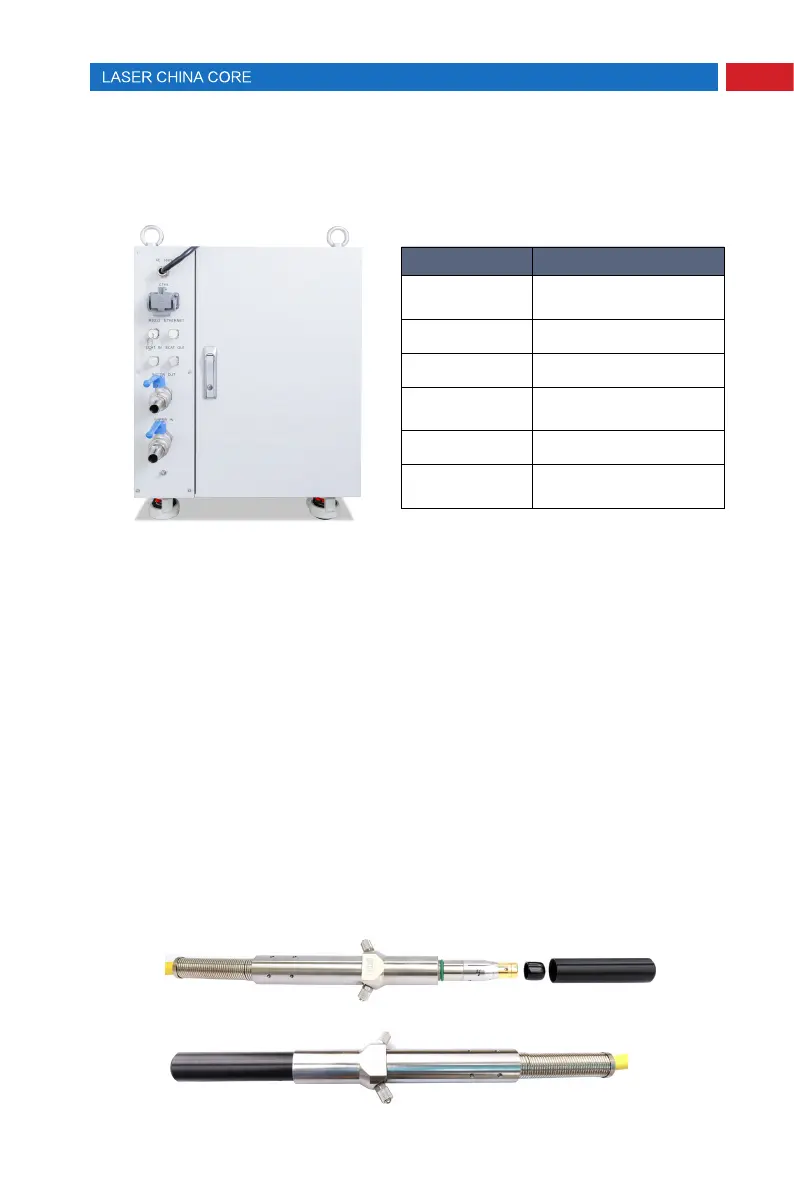

6-Back Panel Description
7-Optical Output Terminal
1、Optical Output Head
The optical output head come with a protective window that can be
replaced if damaged. Make sure that the end cap of the QBH head is
removed prior to use and is usually arranged with the laser.
Please refer to “Fiber Connector Inspection and Cleaning Guide” about
the cleaning method.
Optical Output Head (QBH head)
Items Function Description
CTRL
External control
connector
RS232 RS232 connector
AC380 380V AC power input
WATER OUT
Water cooling output
port
WATER IN Water cooling input port
OPTICAL
OUTPUT
QBH output
