Chapter 6 Operation Guide
card, Maxphotonics adopts the high-quality HARTING terminal and
provides the CTRL interface connectors. The interface definition is shown
in the figure below. CTRL Interface Definition.

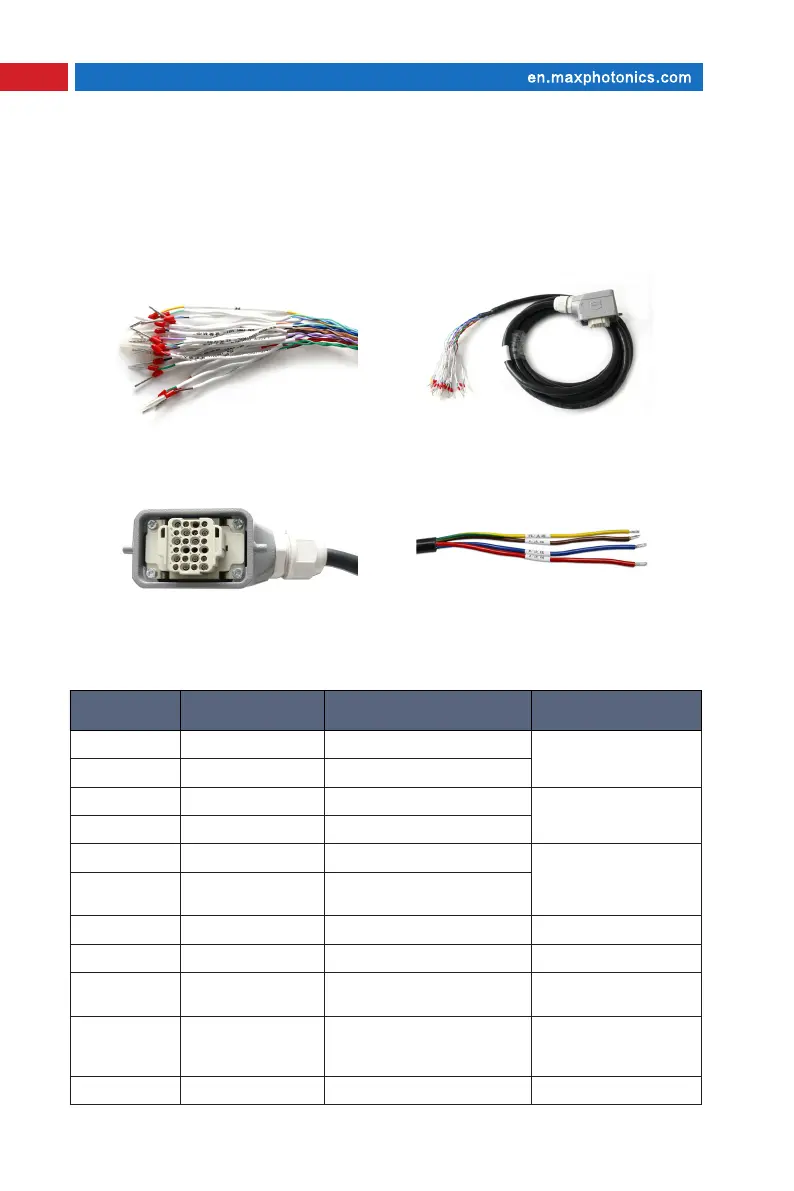

CTRL Interface Definition
Ctrl
Interface Pin
Wire Color Function Description Notes
16 Red Emission enable input +
24VDC high level
voltage valid
3 Red and White Emission enable input -
15 Black Modulation input +
24VDC high level
voltage valid
4 Black and White Modulation input -
6 Yellow External laser output +
7
Black and
Yellow
External laser output -
12 Green DA(0-10V) input + 0-10V analog signal
5 Green and White DA(0-10V) input - control output power
18 Brown Fault output 1
Fault output 1 and 2
off when alarm on
23 Brown and White Fault output 2
Fault output 1 and 2
on when alarm off
Earth-wire Green and Yellow Earth-wire
