Maxum 1900SR3 - Page 29

Chapter 3: Locations
23
2100SC
2200SR3

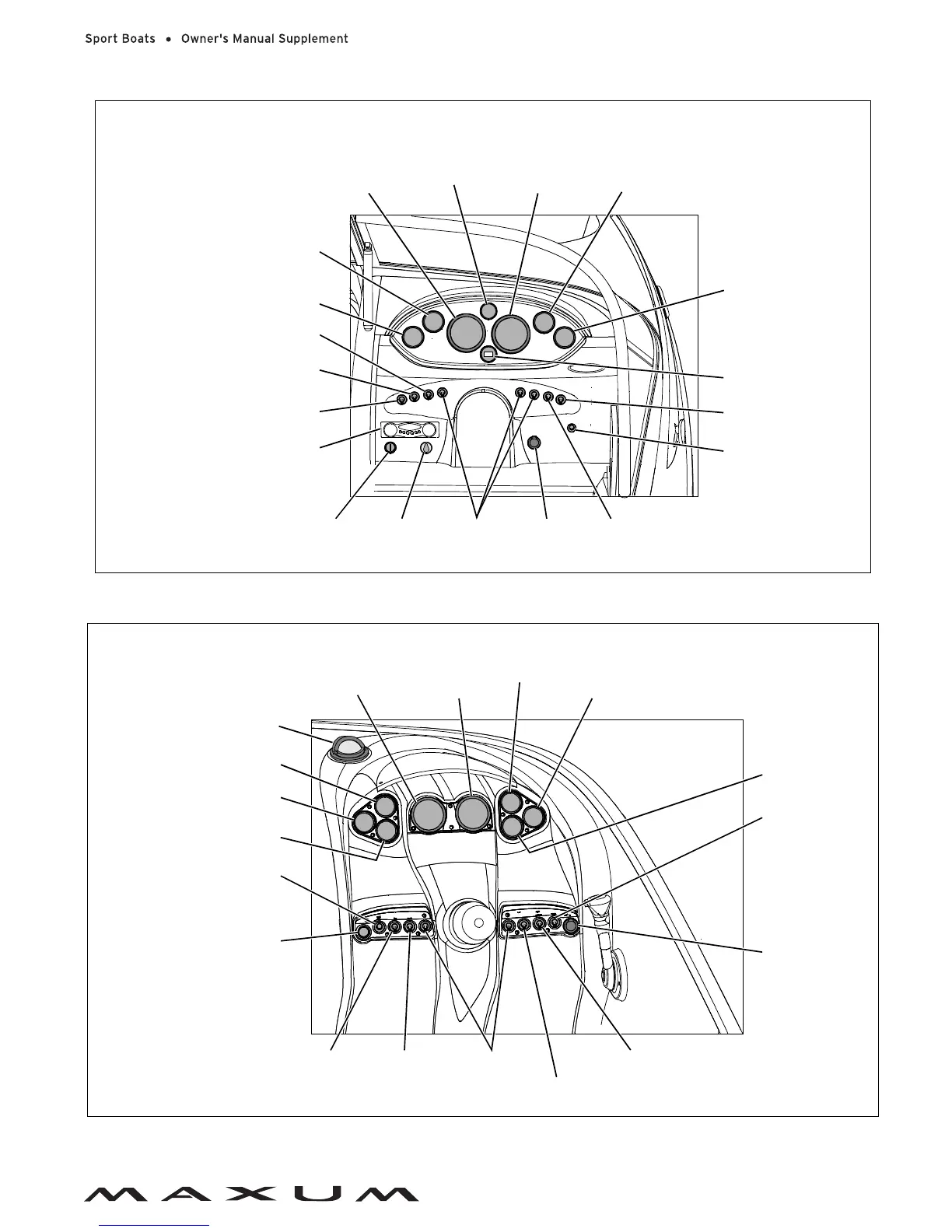

OIL PRESSURE
GAUGE
TEMPERATURE
GAUGE
SPEEDOMETER
TRIM GAUGE
TACHOMETER
DEPTH SOUNDER
(IF EQUIPPED)
HORN SWITCH
VOLTMETER
FUEL GAUGE
IGNITION
SWITCH
BLOWER
SWTICH
12-VOLT
OUTLET
STEREO
COURTESY LIGHT
SWITCH
ACTUAL LAYOUT MAY VARY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
NOTE: TYPICAL HELM LAYOUT SHOWN
BILGE PUMP
SWITCH
ACCESSORY
SWITCHES
ACCESSORY SWITCH
NAVIGATION
LIGHT SWITCH
ANCHOR LIGHT
SWITCH
VOLTMETER
TEMPERATURE
GAUGE
SPEEDOMETER
COMPASS
TACHOMETER
OIL PRESSURE
GAUGE
TRIM GAUGE
12-VOLT OUTLET
HORN SWITCH
WATER PUMP
SWITCH
COURTESY LIGHT
SWITCH
NAVIGATION/ANCHOR
LIGHTS 3-WAY SWITCH
ACCESSORY
SWITCHES
BILGE PUMP
SWITCH
BLOWER
SWITCH
IGNITION SWITCH
DEPTH SOUNDER
(IF EQUIPPED)
FUEL GAUGE
ACTUAL LAYOUT MAY VARY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
NOTE: TYPICAL HELM LAYOUT SHOWN
