Maxum 1900SR3 - Electrical Routings by Model

Chapter 11: Electrical System
76

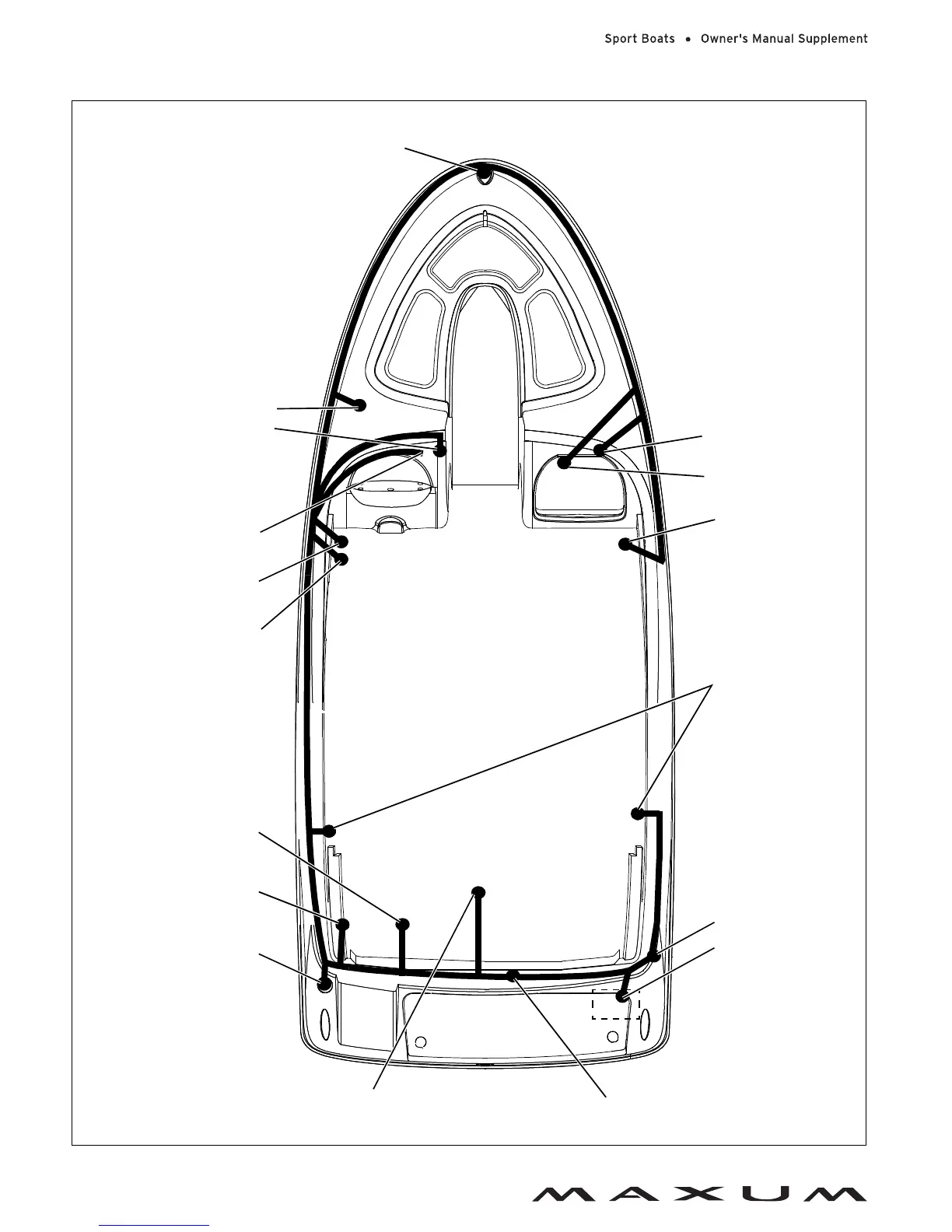

1800SR3, 1900SR3 and 2000SR3 Deck Electrical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
STEREO
SPEAKER
BOW LIGHT
HORN
SPEAKER
KILL SWITCH
SHIFTER &
TRIM PUMP
BILGE PUMP AND
ALL-ROUND LIGHT
FUEL FILL GROUND
ENGINE PLUG &
FUSE BLOCK
BATTERY
DASH HARNESS
SPEEDOMETER PICKUP
BUSS BAR
BLOWER HARNESS
SPEAKERS
(IF EQUIPPED)
12-VOLT OUTLET
