Maxum 1900SR3 - 2200 SR3 Deck Electrical Harness

Chapter 11: Electrical System
78

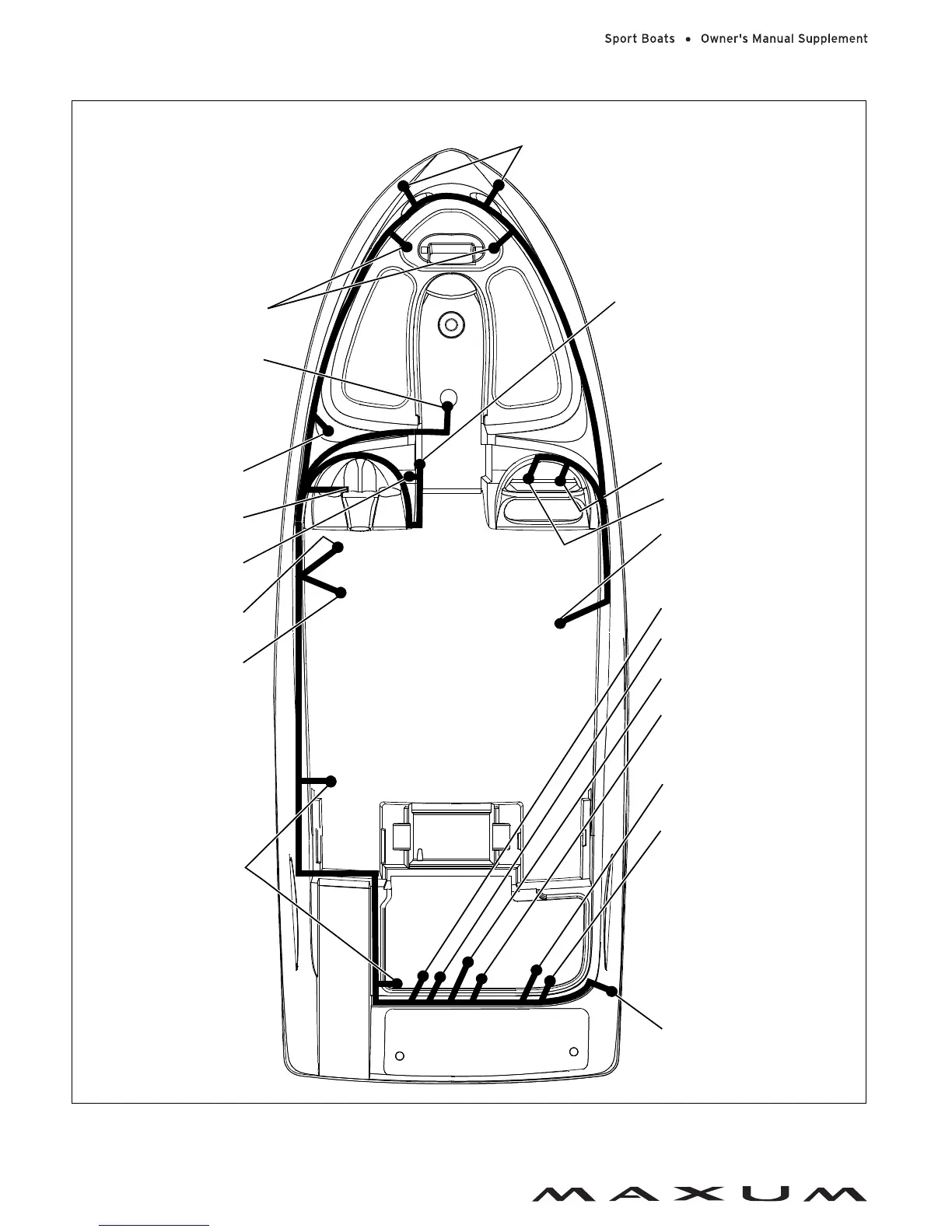

2200SR3 Deck Electrical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
COURTESY LIGHT
SPEAKERS
CABIN LIGHT
FUSE BLOCK
DASH HARNESS
SPEAKER
HORN
STEREO
12-VOLT OULET
SPEAKER
COURTESY LIGHT
FUEL FILL GROUND
WATER PUMP
BATTERY
ALL-ROUND LIGHT
ENGINE PLUG &
ENGINE HARNESS
TRIM PUMP & BLOWER
SHIFTER &
SPEAKER
KILL SWITCH
CABIN LIGHT
SPEEDOMETER PICKUP
BOW LIGHTS
