Chapter 3: Locations
27

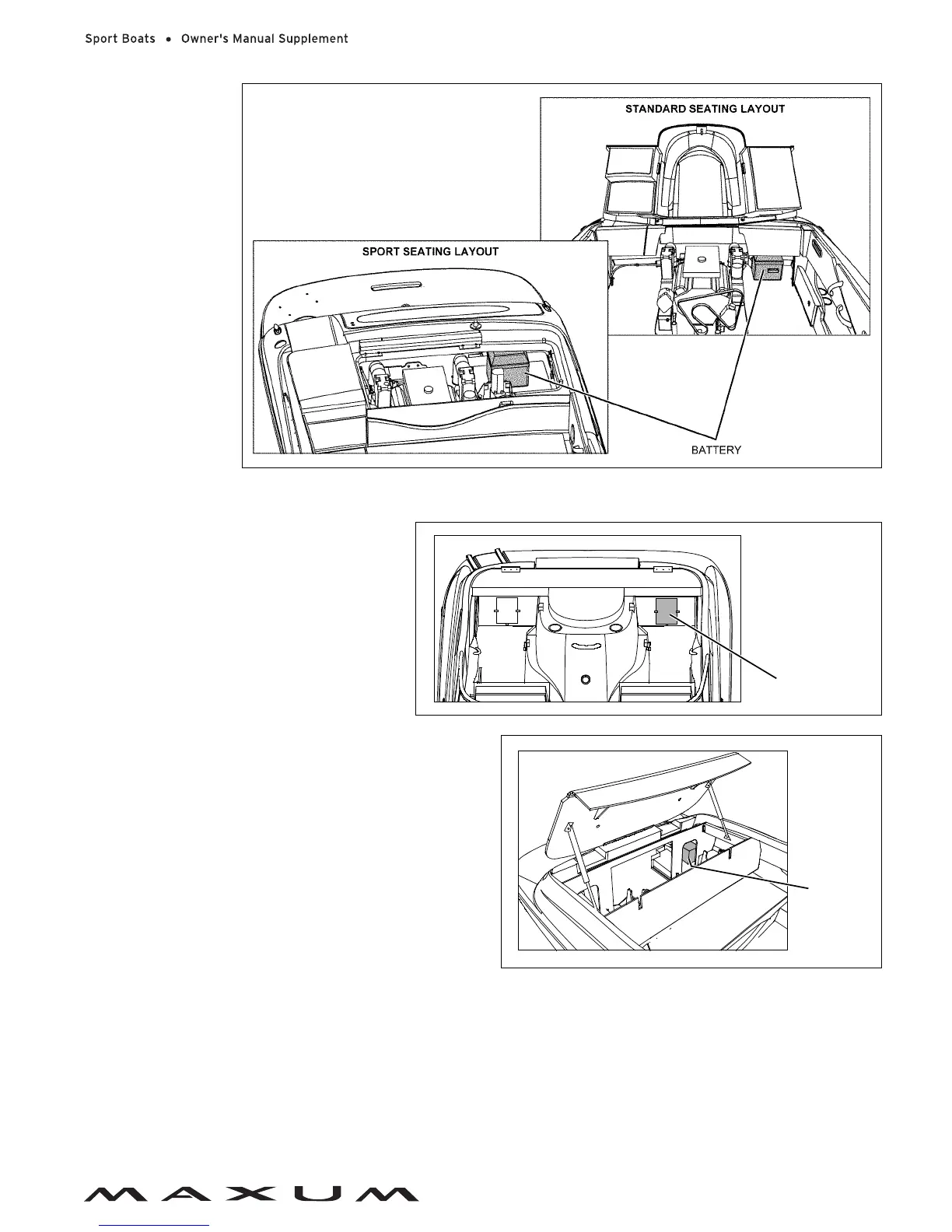

Battery - 1800SR3,
1900SR3, 2000SR3
& 2200SR3: Located
on the port side of the
engine compartment.
Battery 2100SC:
• Standard Seating Layout: Access is
through the hatch under the port jump seat.
• Sport Seating Layout: Located on the port side of the
engine compartment.
ACCESS HATCH
BATTERY
