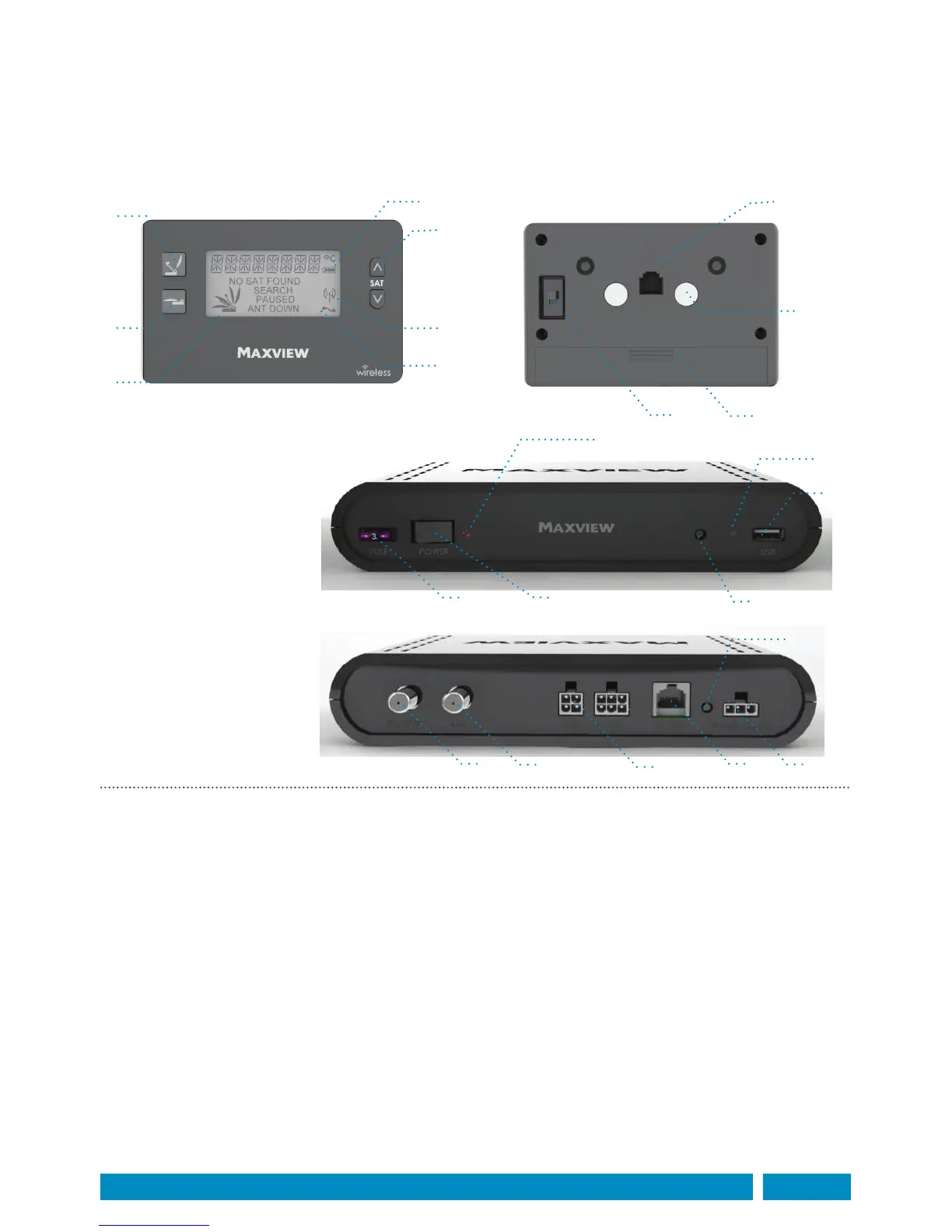

Connections and features:
Control Box:
11. Fuse
12. Power Switch
13. Power LED
14. Sync Button
15. Status LED
16. USB update port
17. RECEIVER
18. LNB IN
19. Antenna Connectors
20. RJ25 Panel Connector
21. Installation Button
22. Power Input
Wireless Control Panel
1. Antenna Search button
2. Antenna Park button
3. Antenna position icon
4. Battery status icon
5. Change Satellite Up. Down buttons
6. Wireless mode icon
7. Cable mode icon
8. ON/OFF switch
9. Battery door
10. RJ25 Socket
11. Magnets



1
2
5
4
6
7
3
10
11 12
13
14
16
15
8 9
11

17 18 19 20 22
21
Product contents:
> Antenna Unit / Control Box / Control Panel
> 65/85cm Antenna (separate carton)
> Accessory Pack
> LNB Park Plate x 1
> Control Box bracket x 2
> Control Panel mount x 1
> RJ25 Cable x 1
> Battery 1.5v AA x 2
> Power Cable x 1
> No.10 Screws x 6
> No.6 Screws x 6
> Cable Clips x 6
> M6 Button Head Screw x 4
> M6 Locking Nut x 4
> 6mm Plastic Washer x 4
> Cable Entry Plate x1
Required tools and equipment (not supplied):
> 32mm hole saw
> 2.5mm twist drill
> Power Drill
> No.2 Phillips screwdriver
> Weather Resistant Elastic Adhesive* and Applicator gun
> Surface Cleaner
> 10mm spanner
> Hexagonal socket key 4mm
> Deburrer/Round File/Emery paper
> Conduit (recommend method for securing cables)
> Automotive 2.5mm² cable
> Electrical connector block
> Flylead (for connection to satellite receiver)
*Maxview recommends the following adhesives:
> Sikaflex®-512 Caravan
> Geocel® Geobond HM
> Sikaflex®-252
