Page 6
Selecting an installation location:
Positioning the Antenna Unit
> Check for obstructions such as roof lights and vents.
> Check for electrical cables beneath screw fixing points.
> Check Antenna Unit cables will reach Control Box
(Maxview can supply extended cables).
> Do not allow the dish to overhang the edge of the vehicle
> Clearance around antenna system when in use is shown with reference I

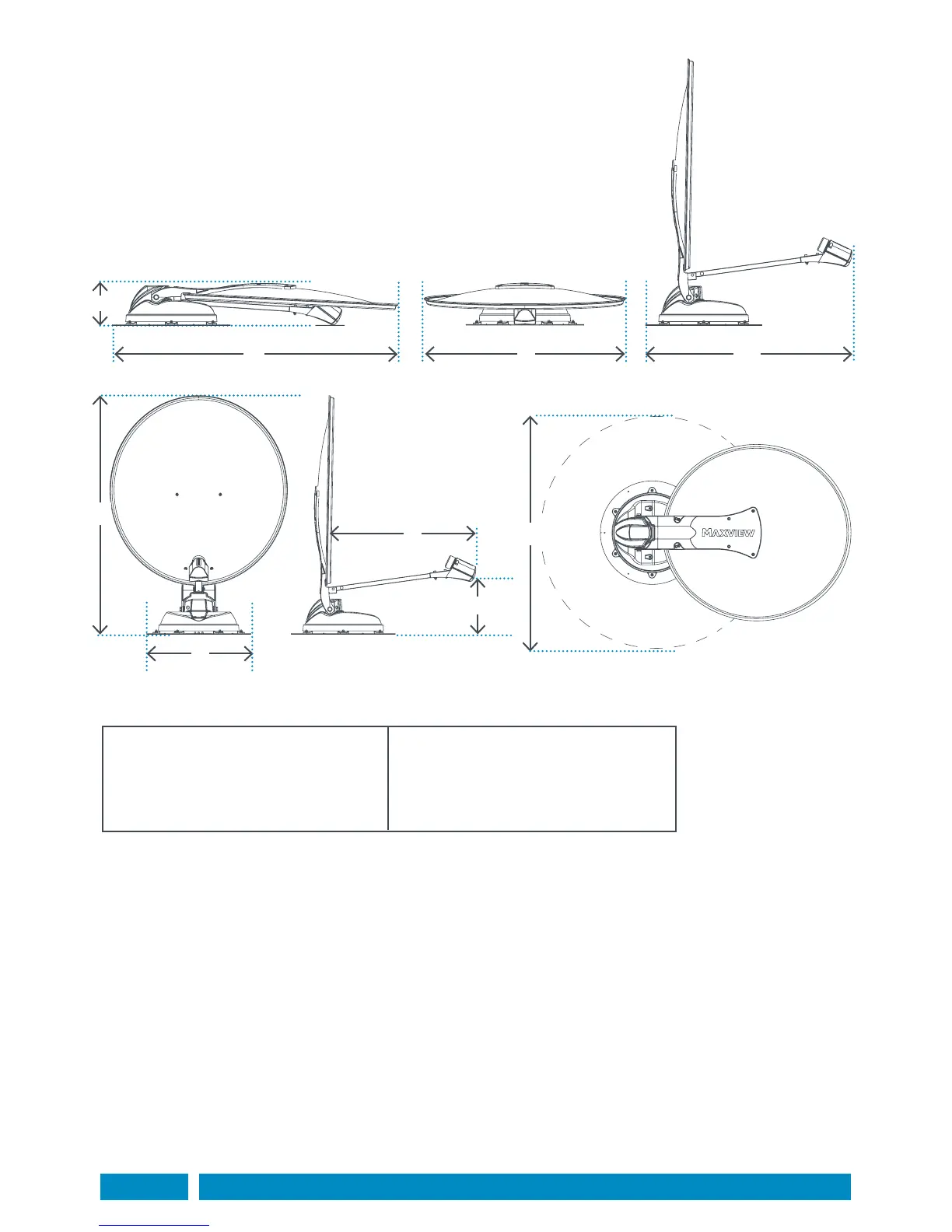

Key dimensions (cm) and weights
65cm Seeker: System weight 10kg
A: 17
B: 100
C: 67
D: 65
E: 96
F: ø43*
85cm Seeker: System weight 11kg
A: 17
B: 117
C: 85
D: 87
E: 113
F: ø43*
E
A
D
B C
H
G
F
I
G: 52
H: 15
I: 110
G: 64
H: 14
I: 125 *Mounting plate
Positioning Control Box:
Site the Control Box in a convenient location where:
> Front and rear connections are accessible.
> Cables can be routed and concealed neatly.
> There is an electrical supply of 12V dc permanent and ignition.
> There is adequate ventilation.
> The Control Box is not encased with metal (if using wireless mode).
> Material construction and thickness is suitable for fixings.
Positioning Control Panel:
The Control Panel is designed to be easily visible in the living area as it displays a clock and thermometer when
in sleep mode.
> Do not place near wet hazard areas such as near sinks or bathroom.
> Do not place near heat sources or in direct sunlight.
> Avoid placing Control Panel next to walk ways where it could easily be knocked.
