Installation
- 18 -
3.2.1.2 Prepare electrical installation (SP5 C, SP5 S-SP5 S-MS)

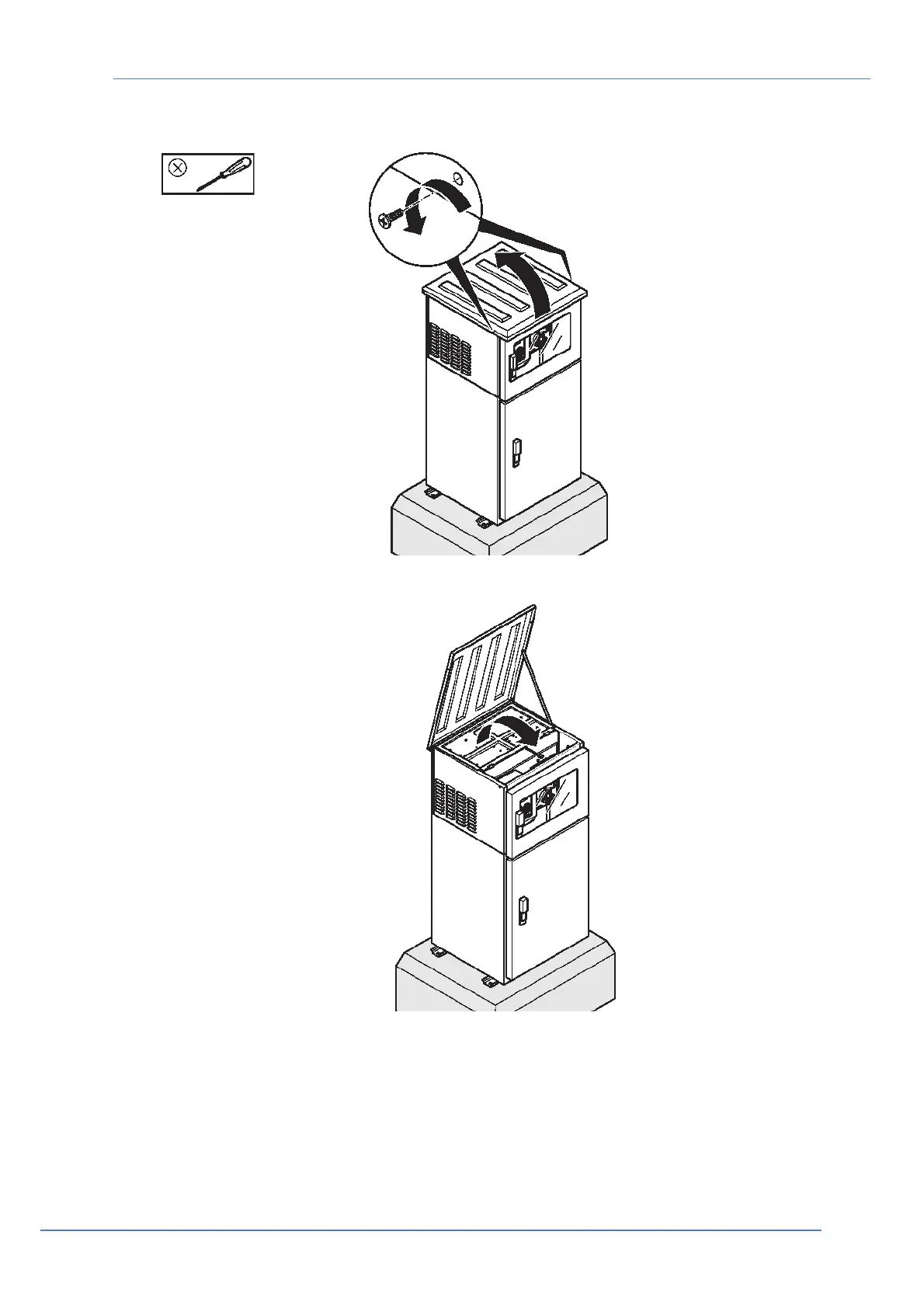

Figure 15 Loosen the lid screws and open the lid (SP5 C, SP5 S-SP5 S-MS)
Figure 16 Lift up the cover (SP5 C, SP5 S-SP5 S-MS)
