Assembly – Multipress

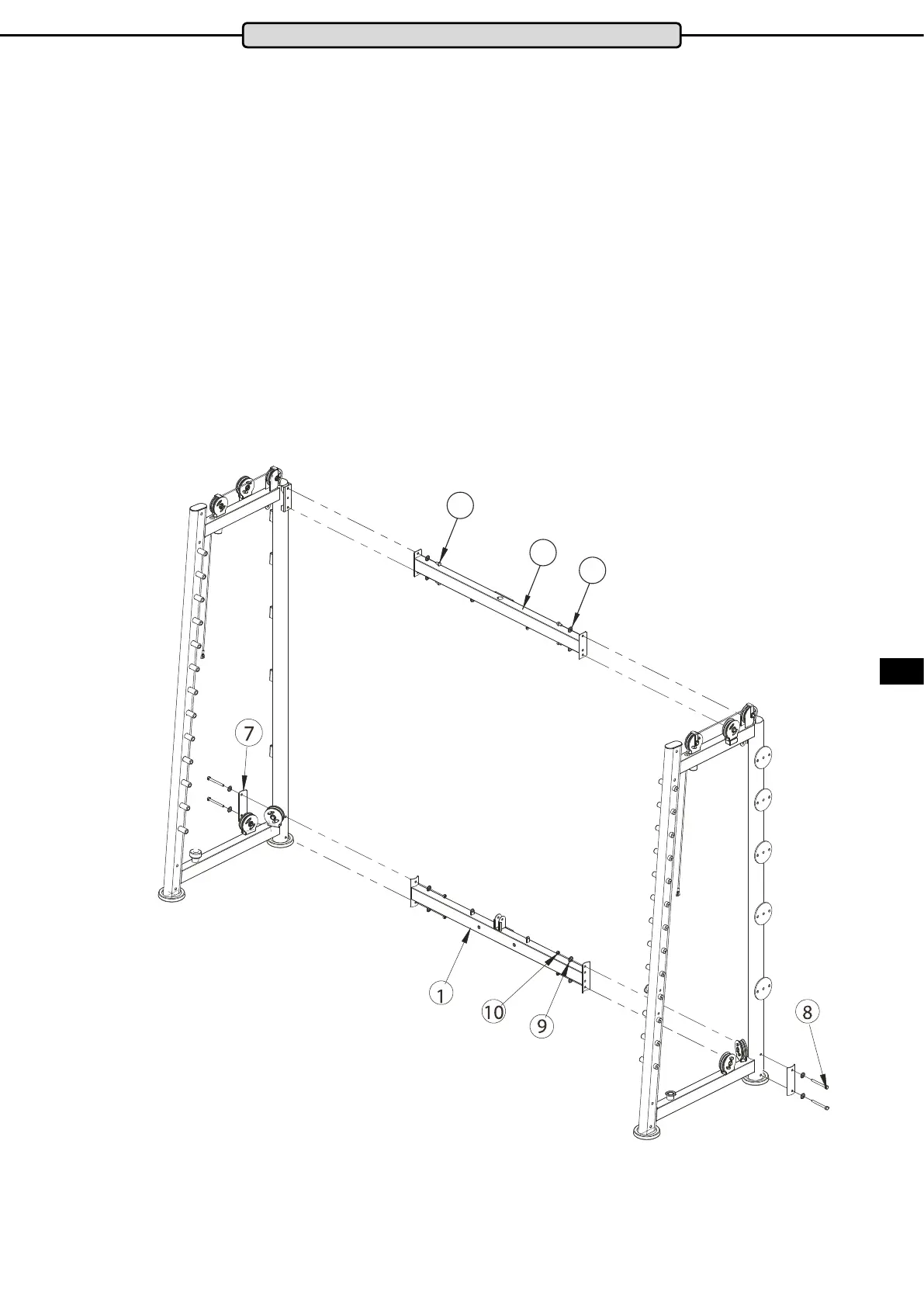

Assembly Step 2
Connect the left-hand side frame (2) the right-hand side frame (3) and the rear side frames to the base frame (1) at the
bottom. For this use on each side; 2 hexagonal head screws M10x100 (8), four washers Ø10 (9), two safety nuts M10 (10)
and a curved mounting plate (7). To stick the screws (8) through the frames (2) you will need to lift the traction weights (49)
mounted here in Step 1 as these will otherwise be blocking the drill holes.
With cross beam (28), connect the left-hand side frame (2) and the right-hand side frame (3) to the rear sides at the top. To
do this use two hexagonal head screws M10x20 (34) and two washers Ø10 (9) on each side.
NOTE:
Please only hand tightened all screws until all components are tting perfectly. Only after this, should the screws be rmly
tightened.
