MAYFLOWER ELECTRONICS ARC - Connections and Controls

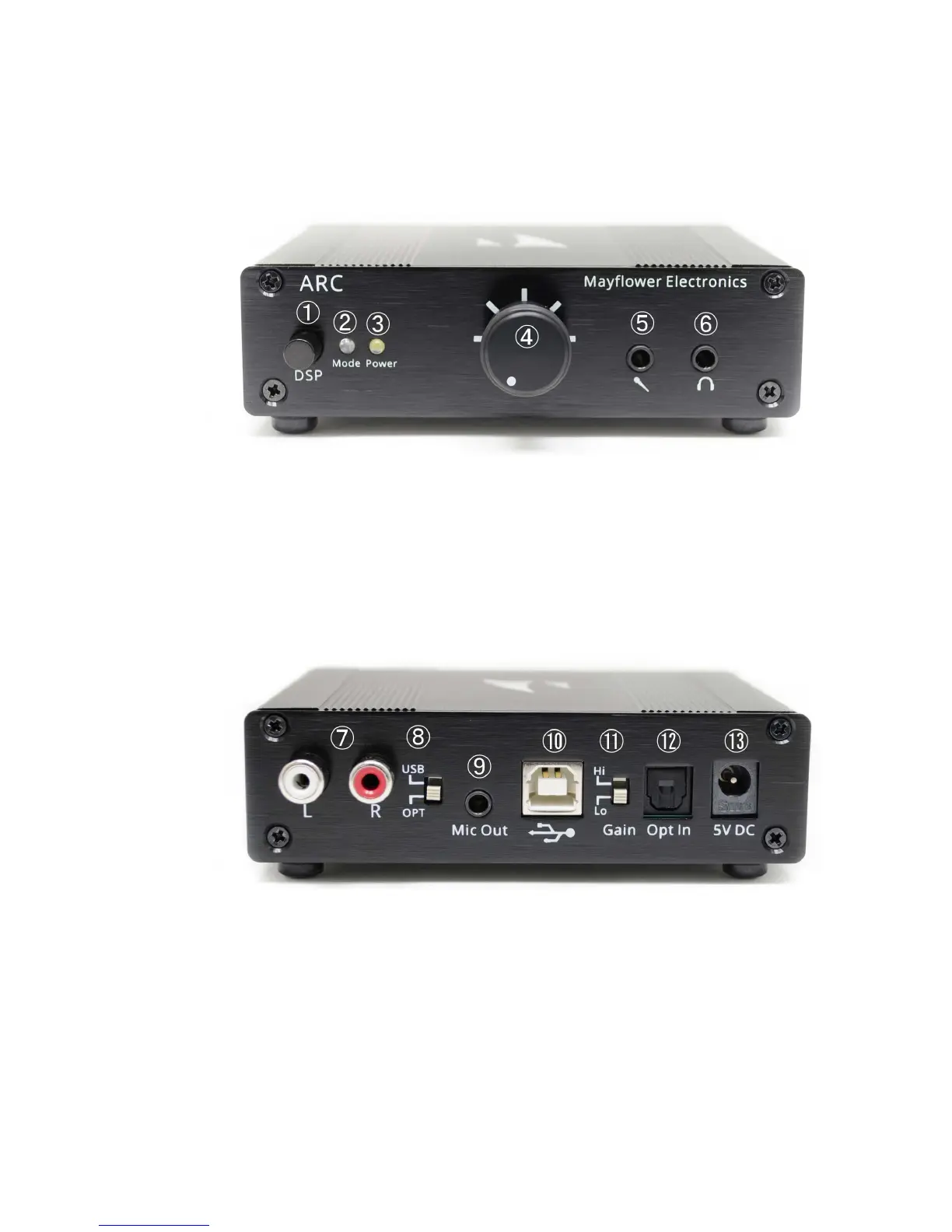

Connections + Controls
Front:
① DSP Mode Button
② DSP Mode LED
③ Power LED
④ Digital Volume Control + Power Switch
⑤ Microphone Input (3.5 mm)
⑥ Headphone Output (3.5mm)
Back:
⑦ RCA Speaker Pre-outs
⑧ Input Selector Switch
⑨ Microphone Analog Output
⑩ Full-size USB Connector
⑪ Output Gain Selector
⑫ TOSLINK Optical Connector
⑬ Power Supply Connector
Pg. 6
