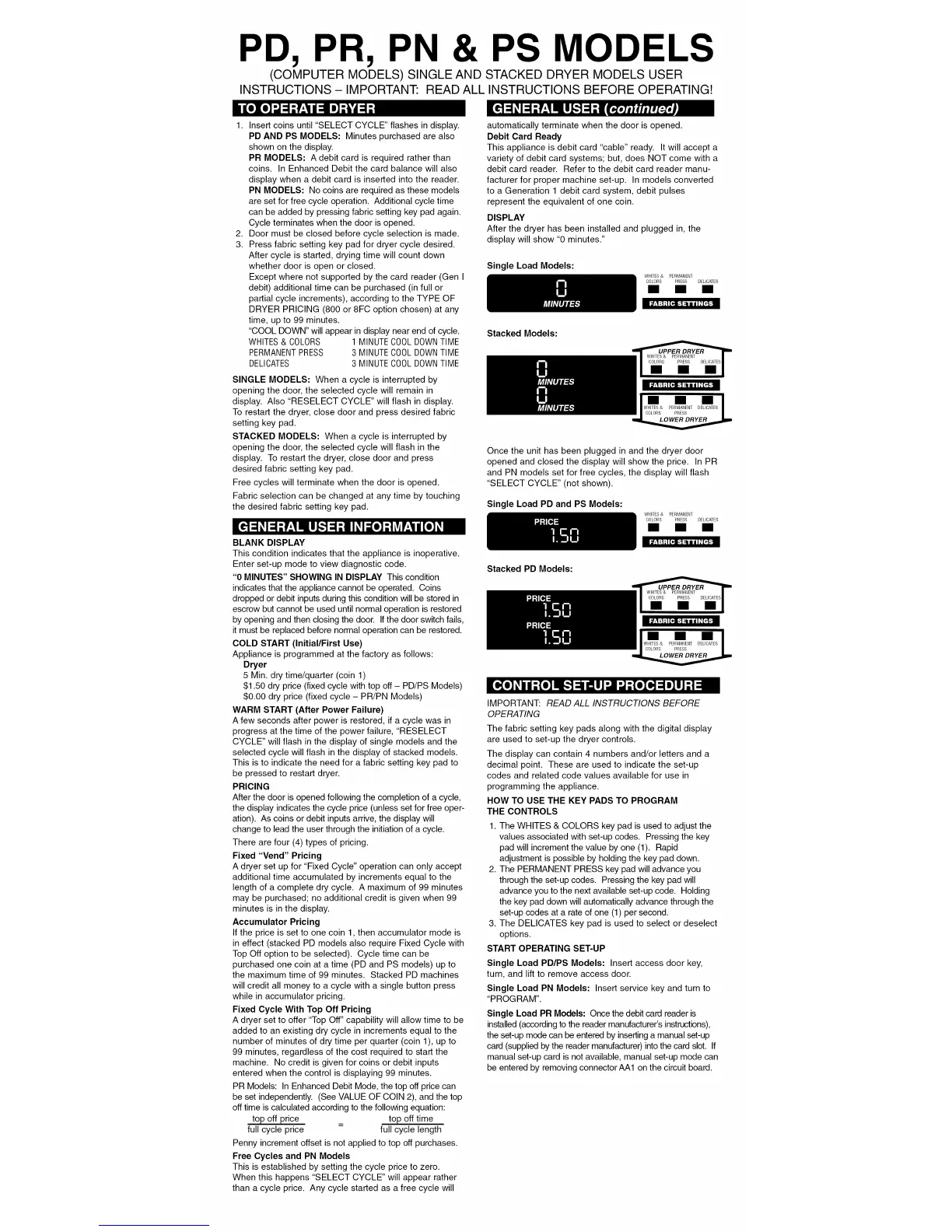

PD, PR, PN & PS MODELS
(COMPUTER MODELS) SINGLE AND STACKED DRYER MODELS USER
INSTRUCTIONS - IMPORTANT: READ ALL INSTRUCTIONS BEFORE OPERATING!
1. Insert coins until "SELECT CYCLE" flashes in display.
PD AND PS MODELS: Minutes purchased are also
shown on the display.
PR MODELS: A debit card is required rather than
coins. In Enhanced Debit the card balance will also
display when a debit card is inserted into the reader.
PN MODELS: No coins are required as these models
are set for free cycle operation. Additional cycle time
can be added by pressing fabric setting key pad again.
Cycle terminates when the door is opened.
2. Door must be closed before cycle selection is made.
3. Press fabric setting key pad for dryer cycle desired.
After cycle is started, drying time will count down
whether door is open or closed.
Except where not supported by the card reader (Gen I
debit) additional time can be purchased (in full or
partial cycle increments), according to the TYPE OF
DRYER PRICING (800 or 8FC option chosen) at any
time, up to 99 minutes.
"COOL DOWN" will appear in display near end of cycle.
WHITES& COLORS 1 MINUTE COOLDOWNTIME
PERMANENTPRESS 3 MINUTECOOLDOWNTIME
DELICATES 3 MINUTECOOLDOWNTIME
I f:1:1 ;1[,'1-1 i i | I_ [_!_"ll
SINGLE MODELS: When a cycle is interrupted by
opening the door, the selected cycle will remain in
display. Also "RESELECT CYCLE" will flash in display.
To restart the dryer, close door and press desired fabric
setting key pad.
STACKED MODELS: When a cycle is interrupted by
opening the door, the selected cycle will flash in the
display. To restart the dryer, close door and press
desired fabric setting key pad.
Free cycles will terminate when the door is opened.
Fabric selection can be changed at any time by touching
the desired fabric setting key pad.
BLANK DISPLAY
This condition indicates that the appliance is inoperative.
Enter set-up mode to view diagnostic code.
"0 MINUTES" SHOWING IN DISPLAY This condition
indicates that the appliance cannot be operated. Coins
dropped or debit inputs during this condition will be stored in
escrow but cannot be used until normal operation is restored
by opening and then closing the door. Ifthe door switch fails,
it must be replaced before normal operation can be restored.
COLD START (Initial/First Use)
Appliance is programmed at the factory as follows:
Dryer
5 Min. dry time/quarter (coin 1)
$1.50 dry price (fixed cycle with top off - PD/PS Models)
$0.00 dry price (fixed cycle - PR/PN Models)
WARM START (After Power Failure)
A few seconds after power is restored, if a cycle was in
progress at the time of the power failure, "RESELECT
CYCLE" will flash in the display of single models and the
selected cycle will flash in the display of stacked models.
This is to indicate the need for a fabric setting key pad to
be pressed to restart dryer.
PRICING
After the door is opened following the completion of a cycle,
the display indicates the cycle price (unless set for free oper-
ation). As coins or debit inputs arrive, the display will
change to lead the user through the initiation of a cycle.
There are four (4) types of pricing.
Fixed "Vend" Pricing
A dryer set up for "Fixed Cycle" operation can only accept
additional time accumulated by increments equal to the
length of a complete dry cycle. A maximum of 99 minutes
may be purchased; no additional credit is given when 99
minutes is in the display.
Accumulator Pricing
If the price is set to one coin 1, then accumulator mode is
in effect (stacked PD models also require Fixed Cycle with
Top Off option to be selected). Cycle time can be
purchased one coin at a time (PD and PS models) up to
the maximum time of 99 minutes. Stacked PD machines
will credit all money to a cycle with a single button press
while in accumulator pricing.
Fixed Cycle With Top Off Pricing
A dryer set to offer "Top Off" capability will allow time to be
added to an existing dry cycle in increments equal to the
number of minutes of dry time per quarter (coin 1), up to
99 minutes, regardless of the cost required to start the
machine. No credit is given for coins or debit inputs
entered when the control is displaying 99 minutes.
PR Models: In Enhanced Debit Mode, the top off price can
be set independently. (See VALUE OF COIN 2), and the top
off time is calculated according to the following equation:
top off price = top off time
full cycle price full cycle length
Penny increment offset is not applied to top off purchases.
Free Cycles and PN Models
This is established by setting the cycle price to zero.
When this happens "SELECT CYCLE" will appear rather
than a cycle price. Any cycle started as a free cycle will
automatically terminate when the door is opened.
Debit Card Ready
This appliance is debit card "cable" ready. It will accept a
variety of debit card systems; but, does NOT come with a
debit card reader. Refer to the debit card reader manu-
facturer for proper machine set-up. In models converted
to a Generation 1 debit card system, debit pulses
represent the equivalent of one coin.
DISPLAY
After the dryer has been installed and plugged in, the
display will show "0 minutes."
Single Load Models:
WHITES & PERMANENT
COLORS PRESS DELICATES
• • •
Stacked Models:
Once the unit has been plugged in and the dryer door
opened and closed the display will show the price. In PR
and PN models set for free cycles, the display will flash
"SELECT CYCLE" (not shown).
Single Load PD and PS Models:
WHITES & PERMANENT
COLORS PRESS DELICATES
• • •
I d:l :1:1[,'1-1 _mi ( 12[_,-'1
Stacked PD Models:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE
OPERATING
The fabric setting key pads along with the digital display
are used to set-up the dryer controls.
The display can contain 4 numbers and/or letters and a
decimal point. These are used to indicate the set-up
codes and related code values available for use in
programming the appliance.
HOW TO USE THE KEY PADS TO PROGRAM
THE CONTROLS
1. The WHITES & COLORS key pad is used to adjust the
values associated with set-up codes. Pressing the key
pad will increment the value by one (1). Rapid
adjustment is possible by holding the key pad down.
2. The PERMANENT PRESS key pad will advance you
through the set-up codes. Pressing the key pad will
advance you to the next available set-up code. Holding
the key pad down will automatically advance through the
set-up codes at a rate of one (1) per second.
3. The DELICATES key pad is used to select or deselect
options.
START OPERATING SET-UP
Single Load PD/PS Models: Insert access door key,
turn, and lift to remove access door.
Single Load PN Models: Insert service key and turn to
"PROGRAM".
Single Load PR Models: Once the debit card reader is
installed (according to the reader manufacturer's instructions),
the set-up mode can be entered by inserting a manual set-up
card (supplied bythe reader manufacturer) into the card slot. If
manual set-up card is not available, manual set-up mode can
be entered by removing connector AA1 on the circuit board.
To Next Page
