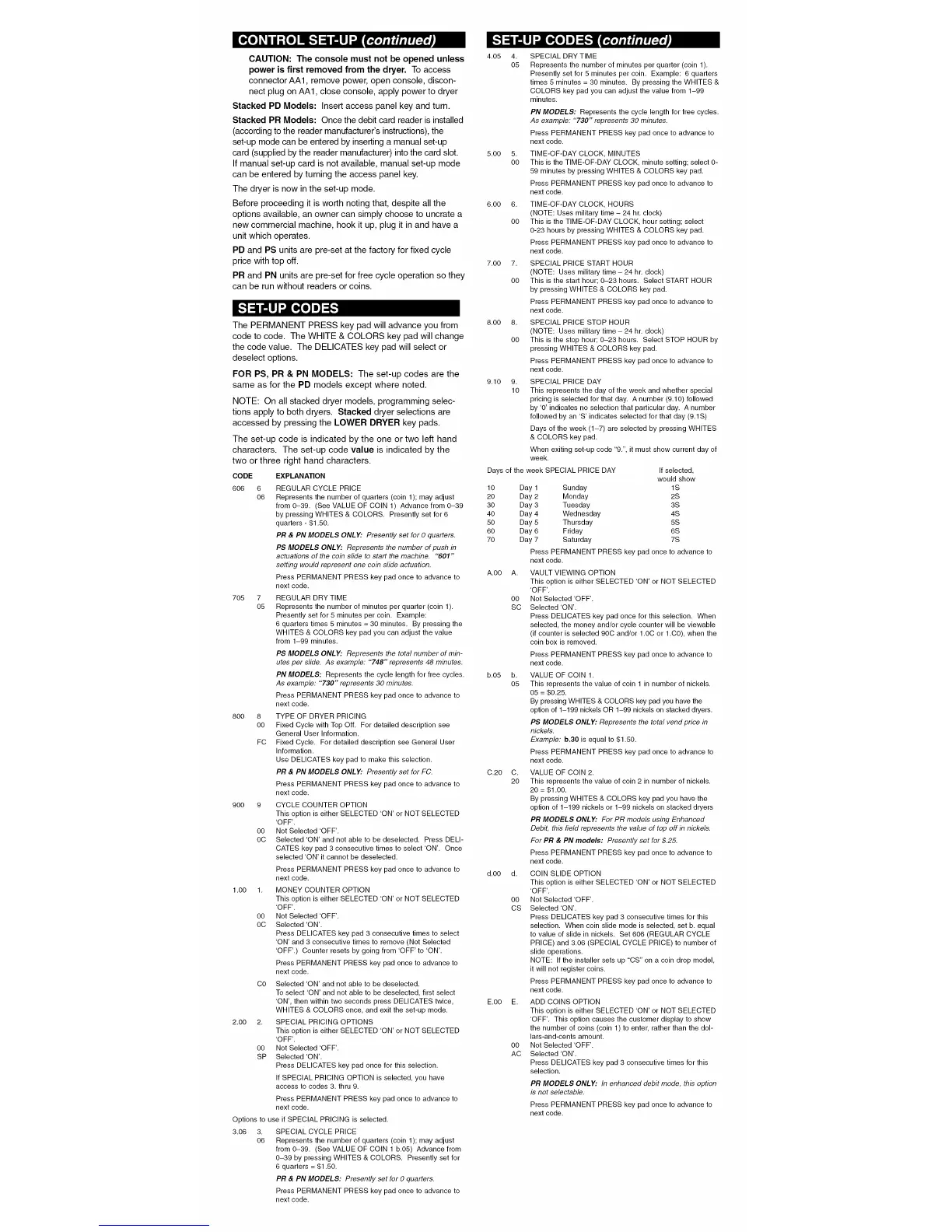

CAUTION: The console must not be opened unless
power is first removed from the dryer. To access
connector AA1, remove power, open console, discon-
nect plug on AA1, close console, apply power to dryer
Stacked PD Models: Insert access panel key and turn.
Stacked PR Models: Once the debit card reader is installed
(according to the reader manufacturer's instructions), the
set-up mode can be entered by inserting a manual set-up
card (supplied by the reader manufacturer) into the card slot.
If manual set-up card is not available, manual set-up mode
can be entered by turning the access panel key.
The dryer is now in the set-up mode.
Before proceeding it is worth noting that, despite all the
options available, an owner can simply choose to uncrate a
new commercial machine, hook it up, plug it in and have a
unit which operates.
PD and PS units are pre-set at the factory for fixed cycle
price with top off.
PR and PN units are pre-set for free cycle operation so they
can be run without readers or coins.
The PERMANENT PRESS key pad will advance you from
code to code. The WHITE & COLORS key pad will change
the code value. The DELICATES key pad will select or
deselect options.
FOR PS, PR & PN MODELS: The set-up codes are the
same as for the PD models except where noted.
NOTE: On all stacked dryer models, programming selec-
tions apply to both dryers. Stacked dryer selections are
accessed by pressing the LOWER DRYER key pads.
The set-up code is indicated by the one or two left hand
characters. The set-up code value is indicated by the
two or three right hand characters.
CODE EXPLANATION
606 6
06
REGULAR CYCLE PRICE
Represents the number of quarters (coin 1 ); may adjust
from 0-39. (See VALUE OF COIN 1) Advance from 0-39
by pressing WHITES & COLORS. Presently set for 6
quarters - $1.50.
PR & PN MODELS ONLY: Presently set for 0 quarters.
PS MODELS ONLY: Represents the number of push in
actuations of the coin slide to start the machine. "601"
setting would represent one coin slide actuation.
Press PERMANENT PRESS key pad once to advance to
next code.
7O5 7
O5
REGULAR DRY TIME
Represents the number of minutes per quarter (coin 1).
Presently set for 5 minutes per coin. Example:
6 quarters times 5 minutes = 30 minutes. By pressing the
WHITES & COLORS key pad you can adjust the value
from 1-99 minutes.
PS MODELS ONLY: Represents the total number of min-
utes per slide. As example: "748" represents 48 minutes.
PN MODELS: Represents the cycle length for free cycles.
As example: "730" represents 30 minutes.
Press PERMANENT PRESS key pad once to advance to
next code.
8OO 8
O0
FC
TYPE OF DRYER PRICING
Fixed Cycle with Top Off. For detailed description see
General User Information.
Fixed Cycle. For detailed description see General User
Information.
Use DELICATES key pad to make this selection.
PR & PN MODELS ONLY: Presently set for FC.
Press PERMANENT PRESS key pad once to advance to
next code.
900 9 CYCLE COUNTER OPTION
This option is either SELECTED 'ON' or NOT SELECTED
'OFF'.
O0 Not Selected 'OFF'.
OC Selected 'ON' and not able to be deselected. Press DELI-
CATES key pad 3 consecutive times to select 'ON'. Once
selected 'ON' it cannot be deselected.
Press PERMANENT PRESS key pad once to advance to
next code.
1.00
O0
OC
MONEY COUNTER OPTION
This option is either SELECTED 'ON' or NOT SELECTED
'OFF'.
Not Selected 'OFF'.
Selected 'ON'.
Press DELICATES key pad 3 consecutive times to select
'ON' and 3 consecutive times to remove (Not Selected
'OFF'.) Counter resets by going from 'OFF' to 'ON'.
Press PERMANENT PRESS key pad once to advance to
next code.
2.00
CO Selected 'ON' and not able to be deselected.
To select 'ON' and not able to be deselected, first select
'ON', then within two seconds press DELICATES twice,
WHITES & COLORS once, and exit the set-up mode.
2. SPECIAL PRICING OPTIONS
This option is either SELECTED 'ON' or NOT SELECTED
'OFF'.
O0 Not Selected 'OFF'.
SP Selected 'ON'.
Press DELICATES key pad once for this selection.
If SPECIAL PRICING OPTION is selected, you have
access to codes 3. thru 9.
Press PERMANENT PRESS key pad once to advance to
next code.
Options to use if SPECIAL PRICING is selected.
3.06 3. SPECIAL CYCLE PRICE
06 Represents the number of quarters (coin 1 ); may adjust
from 0-39. (See VALUE OF COIN 1 b.05) Advance from
0-39 by pressing WHITES & COLORS. Presently set for
6 quarters = $1.50.
PR & PN MODELS: Presently set for 0 quarters.
Press PERMANENT PRESS key pad once to advance to
next code.
4.05
5.00
6,00
7.00
8.00
4,
05
5,
00
6,
00
7,
00
8,
00
9.10 9.
10
SPECIAL DRY TIME
Represents the number of minutes per quarter (coin 1).
Presently set for 5 minutes per coin. Example: 6 quarters
times 5 minutes = 30 minutes. By pressing the WHITES &
COLORS key pad you can adjust the value from 1-99
minutes.
PN MODELS: Represents the cycle length for free cycles.
As example: "730" represents 30 minutes.
Press PERMANENT PRESS key pad once to advance to
next code.
TIME-OF-DAY CLOCK, MINUTES
This is the TIME-OF-DAY CLOCK, minute setting; select 0-
59 minutes by pressing WHITES & COLORS key pad.
Press PERMANENT PRESS key pad once to advance to
next code.
TIME-OF-DAY CLOCK, HOURS
(NOTE: Uses military time - 24 hr. clock)
This is the TIME-OF-DAY CLOCK, hour setting; select
0-23 hours by pressing WHITES & COLORS key pad.
Press PERMANENT PRESS key pad once to advance to
next code.
SPECIAL PRICE START HOUR
(NOTE: Uses military time - 24 hr. clock)
This is the start hour; 0-23 hours. Select START HOUR
by pressing WHITES & COLORS key pad.
Press PERMANENT PRESS key pad once to advance to
next code.
SPECIAL PRICE STOP HOUR
(NOTE: Uses military time - 24 hr. clock)
This is the stop hour; 0-23 hours. Select STOP HOUR by
pressing WHITES & COLORS key pad.
Press PERMANENT PRESS key pad once to advance to
next code.
SPECIAL PRICE DAY
This represents the day of the week and whether special
pricing is selected for that day. A number (9.10) followed
by '0' indicates no selection that particular day. A number
followed by an 'S' indicates selected for that day (9.1S)
Days of the week (1-7) are selected by pressing WHITES
& COLORS key pad.
When exiting set-up code "9.", it must show current day of
week.
Days of the week
10 Day 1
20 Day 2
30 Day 3
40 Day 4
50 Day 5
60 Day 6
70 Day 7
A.O0
b.05
C.20
d.O0
E.O0
SPECIAL PRICE DAY If selected,
would show
Sunday 1S
Monday 2S
Tuesday 3S
Wednesday 4S
Thursday 5S
Friday 6S
Saturday 7S
Press PERMANENT PRESS key pad once to advance to
next code.
A. VAULT VIEWING OPTION
This option is either SELECTED 'ON' or NOT SELECTED
'OFF'.
O0 Not Selected 'OFF'.
SC Selected 'ON'.
Press DELICATES key pad once for this selection. When
selected, the money and/or cycle counter will be viewable
(if counter is selected 90C and/or 1.0C or 1.CO), when the
coin box is removed.
Press PERMANENT PRESS key pad once to advance to
next code.
b,
05
VALUE OF COIN 1.
This represents the value of coin 1 in number of nickels.
05 = $0.25.
By pressing WHITES & COLORS key pad you have the
option of 1-199 nickels OR 1-99 nickels on stacked dryers.
PS MODELS ONLY: Represents the total vend price in
nickels.
Example: b.30 is equal to $1.50.
Press PERMANENT PRESS key pad once to advance to
next code.
C,
20
VALUE OF COIN 2.
This represents the value of coin 2 in number of nickels.
20 = $1.00.
By pressing WHITES & COLORS key pad you have the
option of 1-199 nickels or 1-99 nickels on stacked dryers
PR MODELS ONLY: For PR models using Enhanced
Debit, this field represents the value of top off in nickels.
For PR & PN models: Presently set for $.25.
Press PERMANENT PRESS key pad once to advance to
next code.
d,
oo
CS
COIN SLIDE OPTION
This option is either SELECTED 'ON' or NOT SELECTED
'OFF'.
Not Selected 'OFF'.
Selected 'ON'.
Press DELICATES key pad 3 consecutive times for this
selection. When coin slide mode is selected, set b. equal
to value of slide in nickels. Set 606 (REGULAR CYCLE
PRICE) and 3.06 (SPECIAL CYCLE PRICE) to number of
slide operations.
NOTE: If the installer sets up "CS" on a coin drop model,
it will not register coins.
Press PERMANENT PRESS key pad once to advance to
next code.
E. ADD COINS OPTION
This option is either SELECTED 'ON' or NOT SELECTED
'OFF'. This option causes the customer display to show
the number of coins (coin 1) to enter, rather than the dol-
lars-and-cents amount.
O0 Not Selected 'OFF'.
AC Selected 'ON'.
Press DELICATES key pad 3 consecutive times for this
selection.
PR MODELS ONLY: In enhanced debit mode, this option
is not selectable.
Press PERMANENT PRESS key pad once to advance to
next code.
