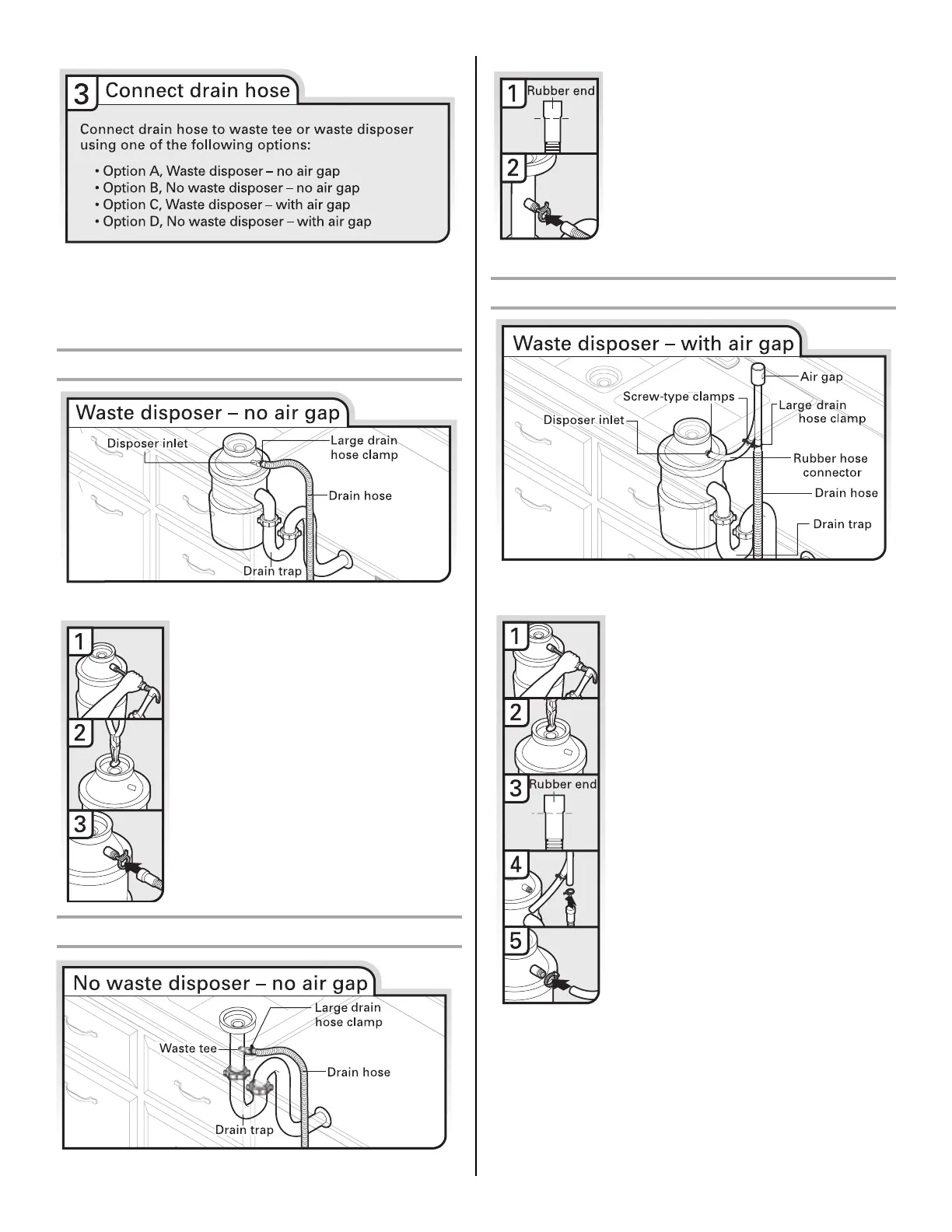

IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the floor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the floor.
Option A, Waste disposer – no air gap
Helpful Tip: Remove disposer knockout plug.
Option B, No waste disposer – no air gap
Option C, Waste disposer – with air gap
Helpful Tip: Remove disposer knock-out plug.
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Attach drain hose to disposer inlet
with large drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
1. Fit rubber end of drain hose to waste
tee and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach rubber end of drain hose to
waste tee with a large drain hose
clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut,
use a 1¹⁄₂" to 2" (3.8 to 5 cm) screw-
type clamp (not provided).
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
4. Attach drain hose to air gap with
large drain hose clamp (provided).
Use pliers to squeeze clamp open
and move into position. If the drain
hose was cut, use a 1¹⁄₂" to 2" (3.8 to
5 cm) screw-type clamp (not
provided).
5. Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap to
disposer inlet.

Maytag MDB4949SDE Specifications

General

Style	built-in dishwashers
Color	black
Load Capacity	14
Number of Cycles	5
Cycle Selections	powerblast, auto, normal, quick, rinse
Options/Settings	heated dry, hi temp wash, sani rinse®, control lock, 1-24 hour delay
Drying Type	heated drying
Noise level	50 decibels adjusted
Control Type	electronic
Delay Start	yes
Child Lock	yes
Load Sensor	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	yes
Water Softener	no
Food Disposer	yes
Sanitize Settings	no
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	25.25 inches
Height	33.5 inches
Width	23.9 inches
Net Weight	89.1 pounds
