Maytag MDB4949SDE User Manual

3
INSTALLATION REQUIREMENTS

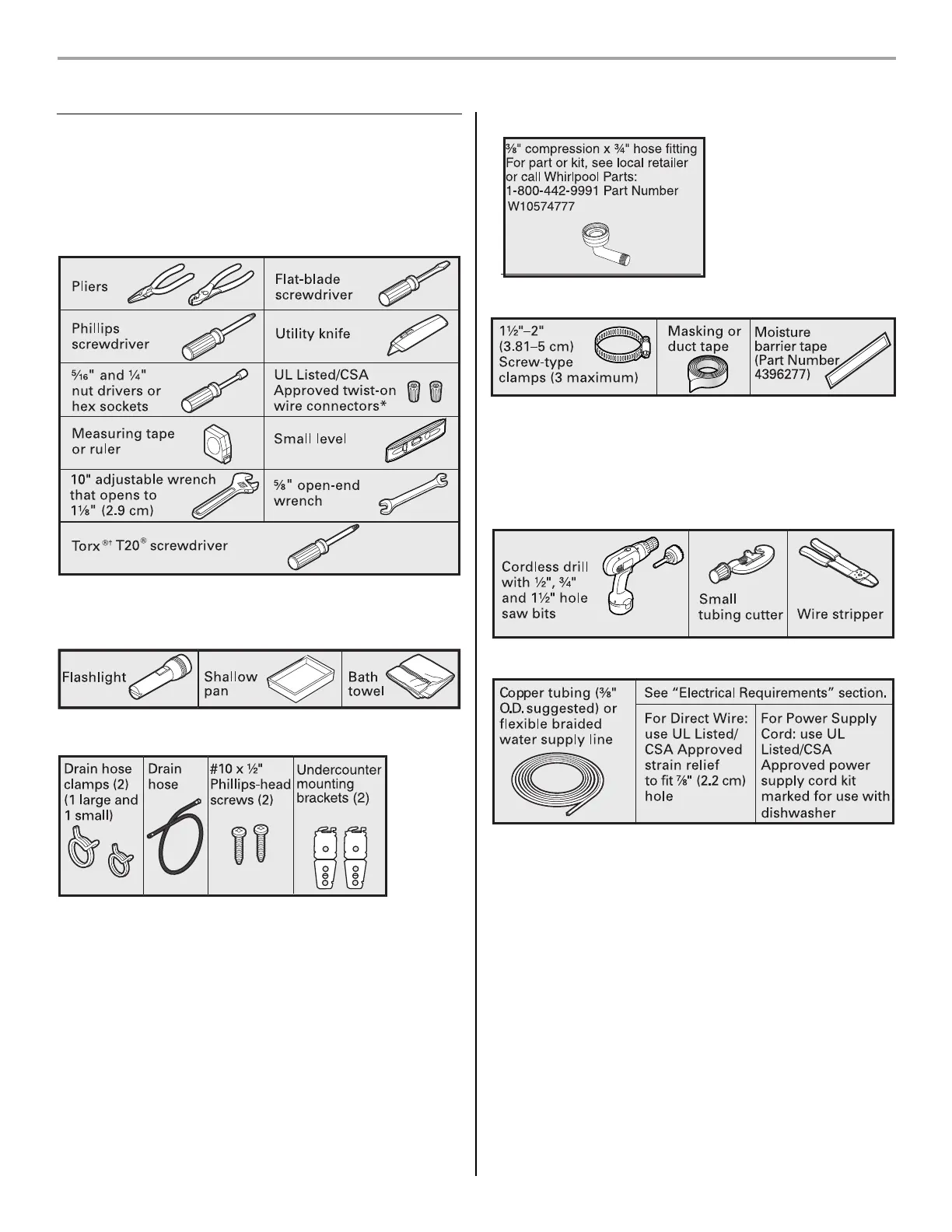

Tools and Parts
Gather the recommended tools and parts before starting
installation. Read and follow the instructions provided with any
tools listed here.
All Installations
Tools needed:
*Must be the proper size to connect your household wiring
to 16-gauge wiring in dishwasher.
Other useful items you may need:
Parts supplied:
Make sure all these parts are included in the literature package.
Parts needed:
Other parts you may also need:
NOTE: Parts available for purchase in plumbing supply stores.
Check local codes. Check existing electrical supply. See
“Electrical Requirements” section. It is recommended that
electrical connections be made by a licensed electrical installer.
In addition, for first-time installations
Tools needed:
Parts needed:
†®TORX and T20 are registered trademarks of Saturn Fasteners, Inc.

Maytag MDB4949SDE Specifications

General

Style	built-in dishwashers
Color	black
Load Capacity	14
Number of Cycles	5
Cycle Selections	powerblast, auto, normal, quick, rinse
Options/Settings	heated dry, hi temp wash, sani rinse®, control lock, 1-24 hour delay
Drying Type	heated drying
Noise level	50 decibels adjusted
Control Type	electronic
Delay Start	yes
Child Lock	yes
Load Sensor	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	yes
Water Softener	no
Food Disposer	yes
Sanitize Settings	no
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	25.25 inches
Height	33.5 inches
Width	23.9 inches
Net Weight	89.1 pounds
