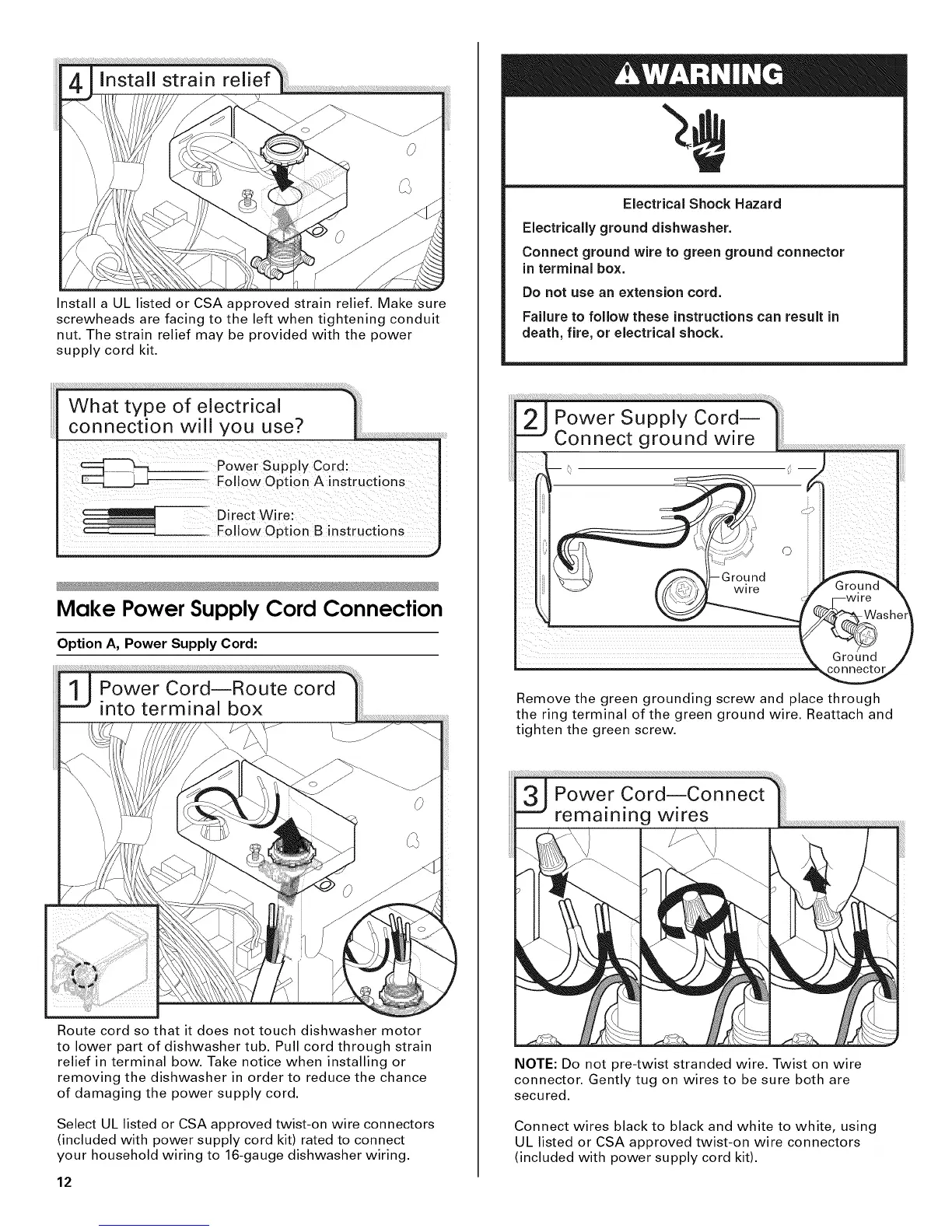

InstallaULlistedorCSAapprovedstrainrelief.Makesure
screwheadsarefacingtotheleftwhentighteningconduit
nut.Thestrainreliefmaybeprovidedwiththepower
supplycordkit.
• PowerSupplyCord:
" . - Follow Option A instructions
Direct Wire:
_ Follow Option B instructions
Make Power Supply Cord Connection
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor
to lower part of dishwasher tub. Pull cord through strain
relief in terminal bow. Take notice when installing or
removing the dishwasher in order to reduce the chance
of damaging the power supply cord.
Select UL listed or CSA approved twist-on wire connectors
(included with power supply cord kit) rated to connect
your household wiring to 16-gauge dishwasher wiring.
12
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Remove the green grounding screw and place through
the ring terminal of the green ground wire. Reattach and
tighten the green screw.
NOTE: Do not pre-twist stranded wire. Twist on wire
connector. Gently tug on wires to be sure both are
secured.
Connect wires black to black and white to white, using
UL listed or CSA approved twist-on wire connectors
(included with power supply cord kit).
