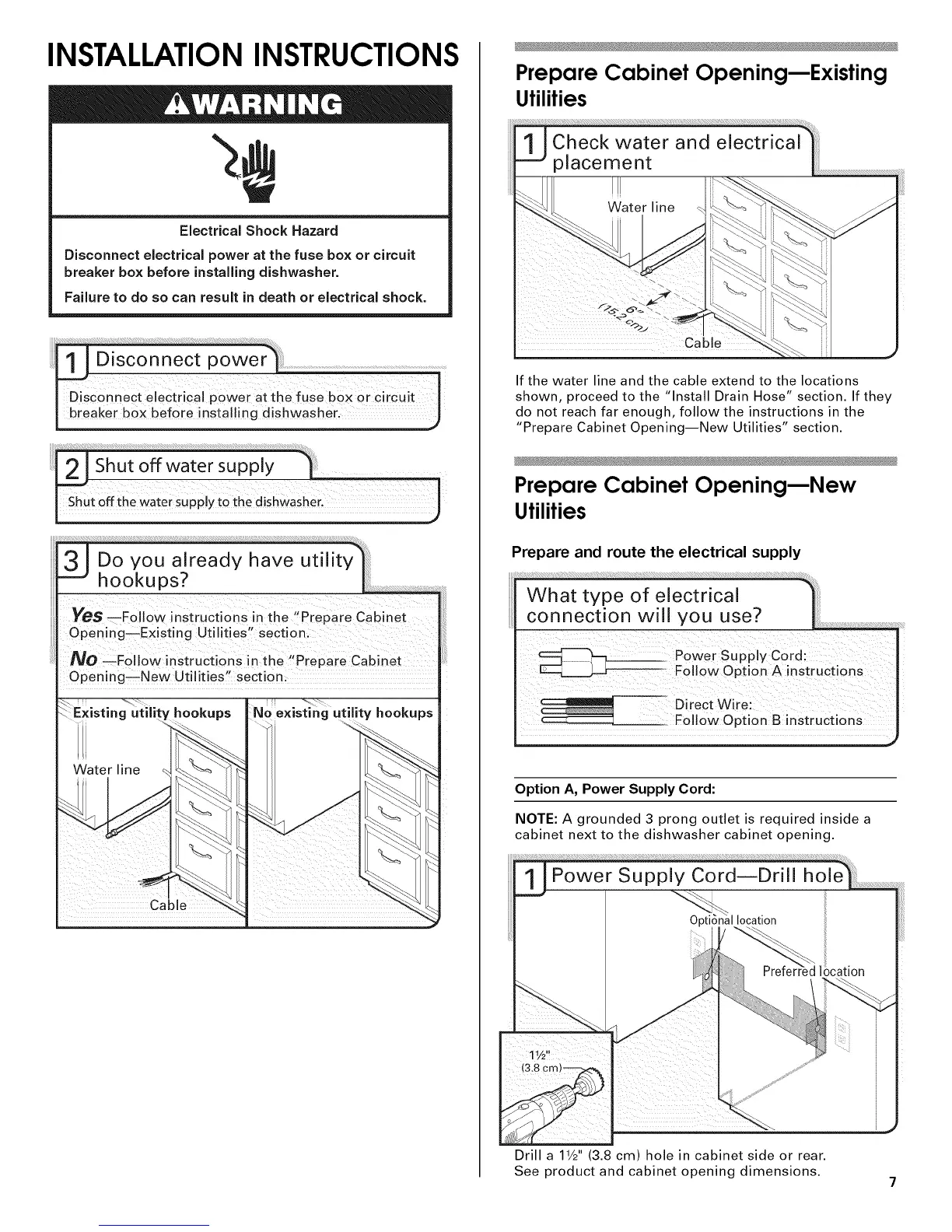

INSTALLATIONINSTRUCTIONS
"a,
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
i__; __;;;;;;;_;;_t ¸__;;;_ _:_:;:__;j___;;; _;_;_;_;j____;j;_ ; _ j;__;;f_:;::::;;__;;;;;;;;;;;;__ :_;_ _;;;;;;;;;;;.
1l_!J Disco n nect p owe r
I Disc0nne_t electrical power at the fuSe box or circuit i
! breaker box before installing dishwasher, J
Yes _F0!low instructions in the '!Prepare Cabinet
Opening_Existing Utilities!' secti0nl
NO _F011ow instruCti0ns in the i,Prepare Cabinet ....
Opening_New Utilities" secti0ni
Prepare Cabinet Opening--Existing
Utilities
If the water line and the cable extend to the locations
shown, proceed to the "Install Drain Hose" section. If they
do not reach far enough, follow the instructions in the
"Prepare Cabinet Opening--New Utilities" section.
Prepare Cabinet Opening--New
Utilities
Prepare and route the electrical supply
Option A, Power Supply Cord:
NOTE: A grounded 3 prong outlet is required inside a
cabinet next to the dishwasher cabinet opening.
Drill a 11/2"(3.8 cm) hole in cabinet side or rear.
See product and cabinet opening dimensions.
7
To Next Page
