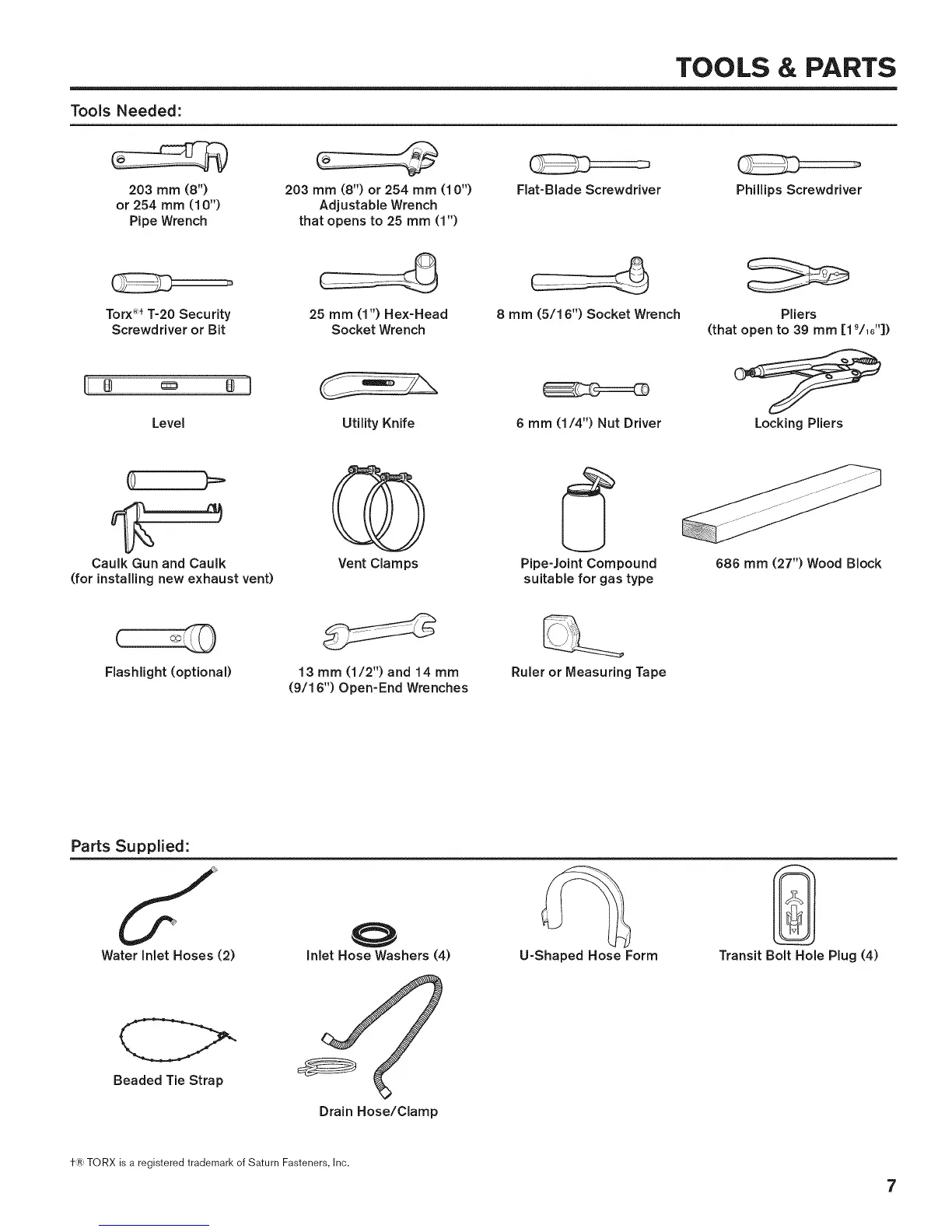

Tools Needed:
203 mm (8")
or 254 mm (10")
Pipe Wrench
Torx _ T-20 Security
Screwdriver or Bit
Level
TOOLS & PARTS
203 mm (8") or 254 mm (10")
Adj ustable Wrench
that opens to 25 mm (1")
25 mm (1") Hex-Head
Socket Wrench
Utility Knife
Fiat-Blade Screwdriver
8 mm (5/16") Socket Wrench
6 mm (1/4") Nut Driver
Phillips Screwdriver
Pliers
(that open to 39 mm [19/16"])
Locking Pliers
Caulk Gun and Caulk Vent Clamps Pipe-Joint Compound
(for installing new exhaust vent) suitable for gas type
686 mm (27") Wood Block
Flashlight (optional)
13 mm (1/2") and 14 mm
(9/16") Open-End Wrenches
Ruler or Measuring Tape
Parts Supplied:
Water Inlet Hoses (2)
Beaded Tie Strap
Inlet Hose Washers (4)
Drain Hose/Clamp
U-Shaped Hose Form Transit Bolt Hole Plug (4)
t-_:' TORX is a registered trademark of Saturn Fasteners, Inc.
7
