450266-2 Maytag Co. 5

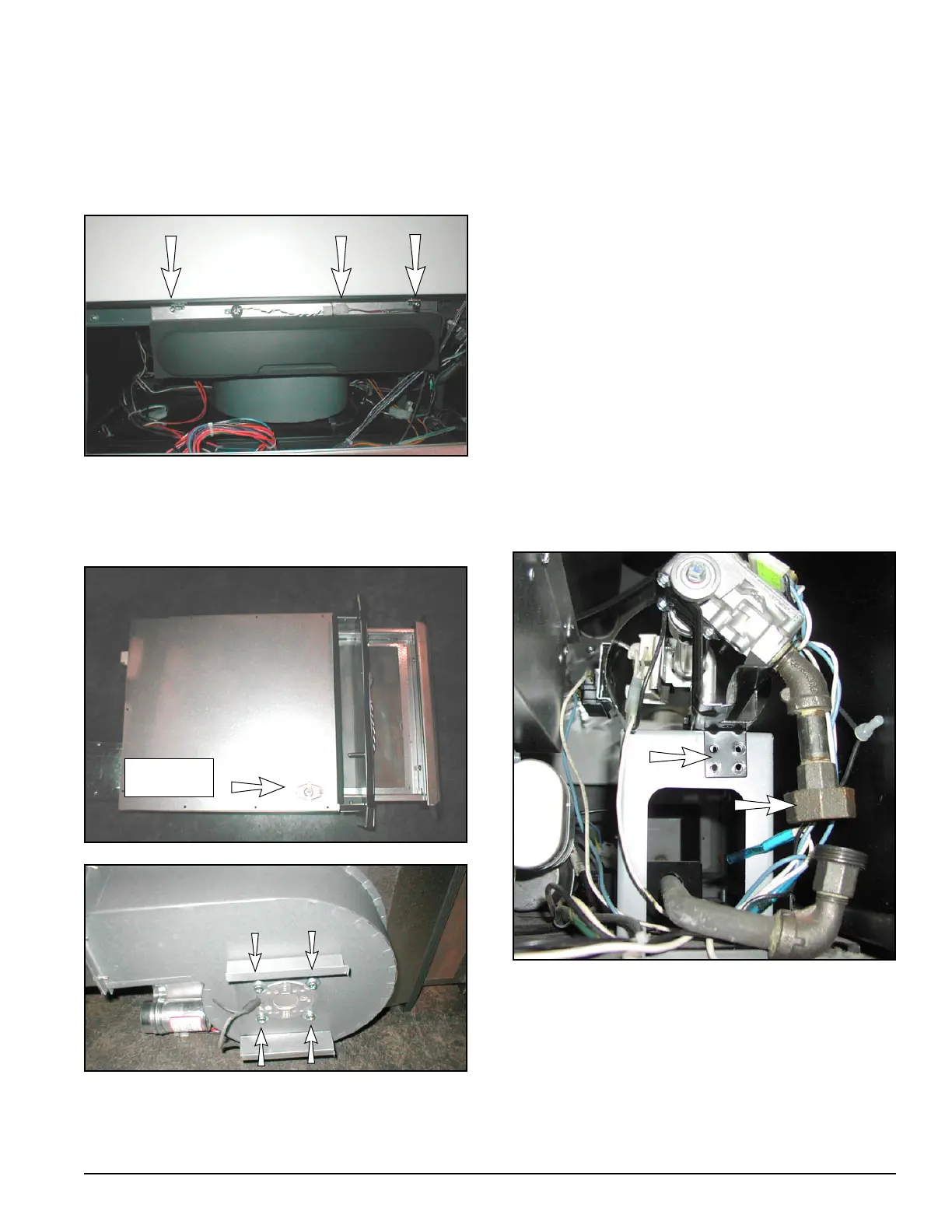

Unplug two connections on the exhaust hi-limit at
the left of the lint box. The lint box may now be pulled
out through the front of the dryer.
Unplug the motor harness.
Remove two screws just above the lint drawer and
pull the lint box down from the front and out slightly.
Unplug the exhaust temperature probe.
LINT BOX/BLOWER ASSEMBLY REMOVAL:
EXHAUST
HI-LIMIT
To remove motorized impellor assembly, remove lint
housing cover, lint screen, and the four screws
shown with arrows. Pull the motorized impellor
assembly out through the opening.
GAS VALVE/IGNITION SYSTEM REMOVAL:
Be sure to shut off the gas main and then proceed
to remove electrical connections and screws
indicated. Remove lower front panel. Disconnect
union and screws noted with arrows.
The gas valve and burner orifice can now be carefully
pulled toward the front of the dryer.
Be sure to pull the assembly straight back so as not
to strike the very fragile carbon ignitor. With the
assembly partly out of the oven, the ignitor and the
two gas valve electrical connections can be
disconnected. At this point the assembly can be
removed from the dryer.
Replace assembly in the reverse order but make
sure the tab at the rear of the assembly engages
into the oven base slot.
Inspect all wires to be sure all lead directly toward
the front of the dryer. Be sure no wires are caught
on the burner tube or ignitor.
