450266-2 Maytag Co. 9

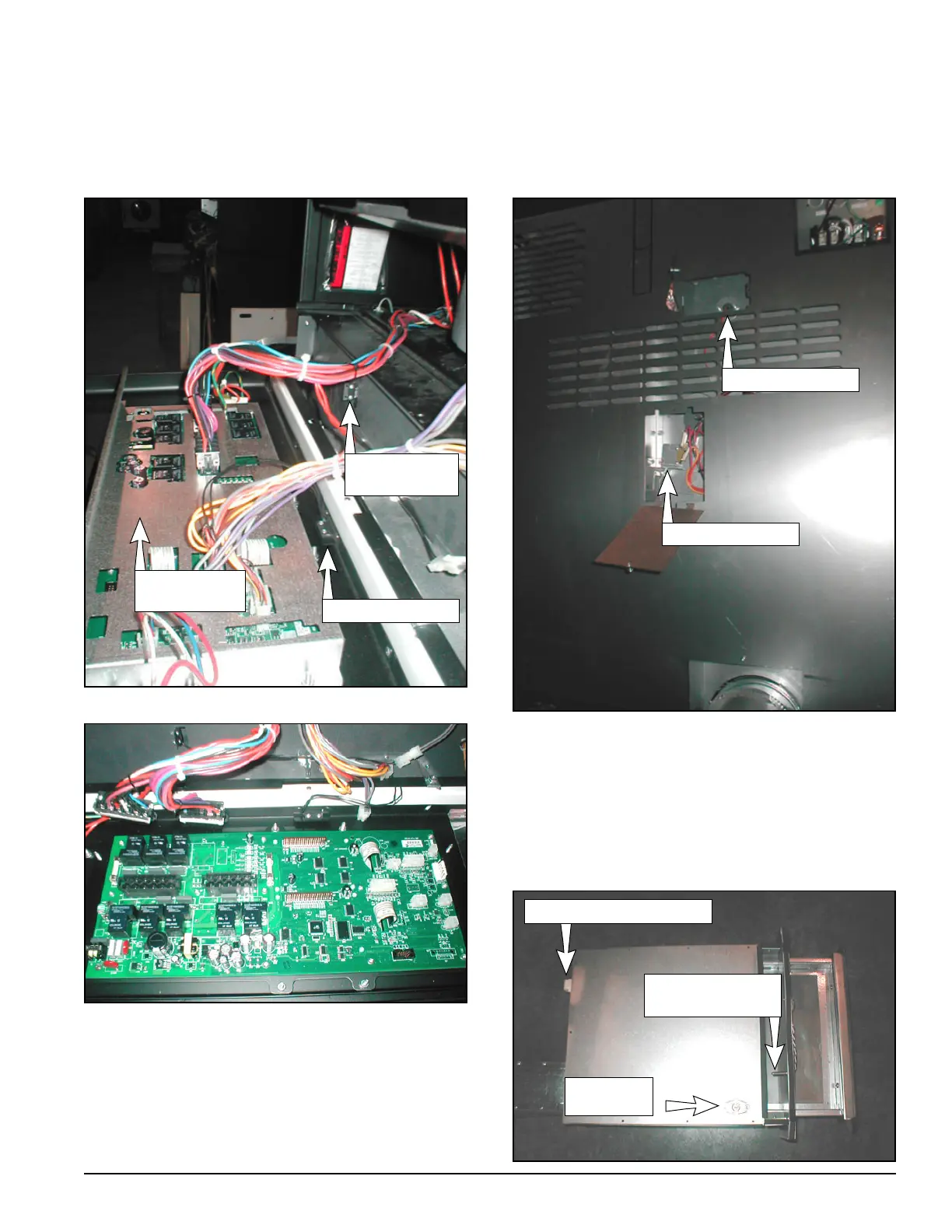

Electrical Component Locations
ROTATIONAL
SENSOR
DOOR SWITCH
COMPUTER
COVER
SAIL SWITCH AND AXIAL PROBE ASSEMBLY:
Located behind back guard. Access doors are
provided. Back guard does not have to be removed.
AXIAL PROBE
SAIL SWITCH
EXHAUST PROBE, EXHAUST HI-LIMIT,
AND LINT DRAWER SWITCH:
Temperature probe and exhaust hi-limit are
accessible without the lint box being removed. The
lint drawer switch can be removed after the lint box
is and the cover has been removed.
EXHAUST
HI-LIMIT
TEMPERATURE
PROBE
LINT DRAWER SWITCH
ELECTRICAL PANEL:
The electrical panel is located behind the front middle
panel.
