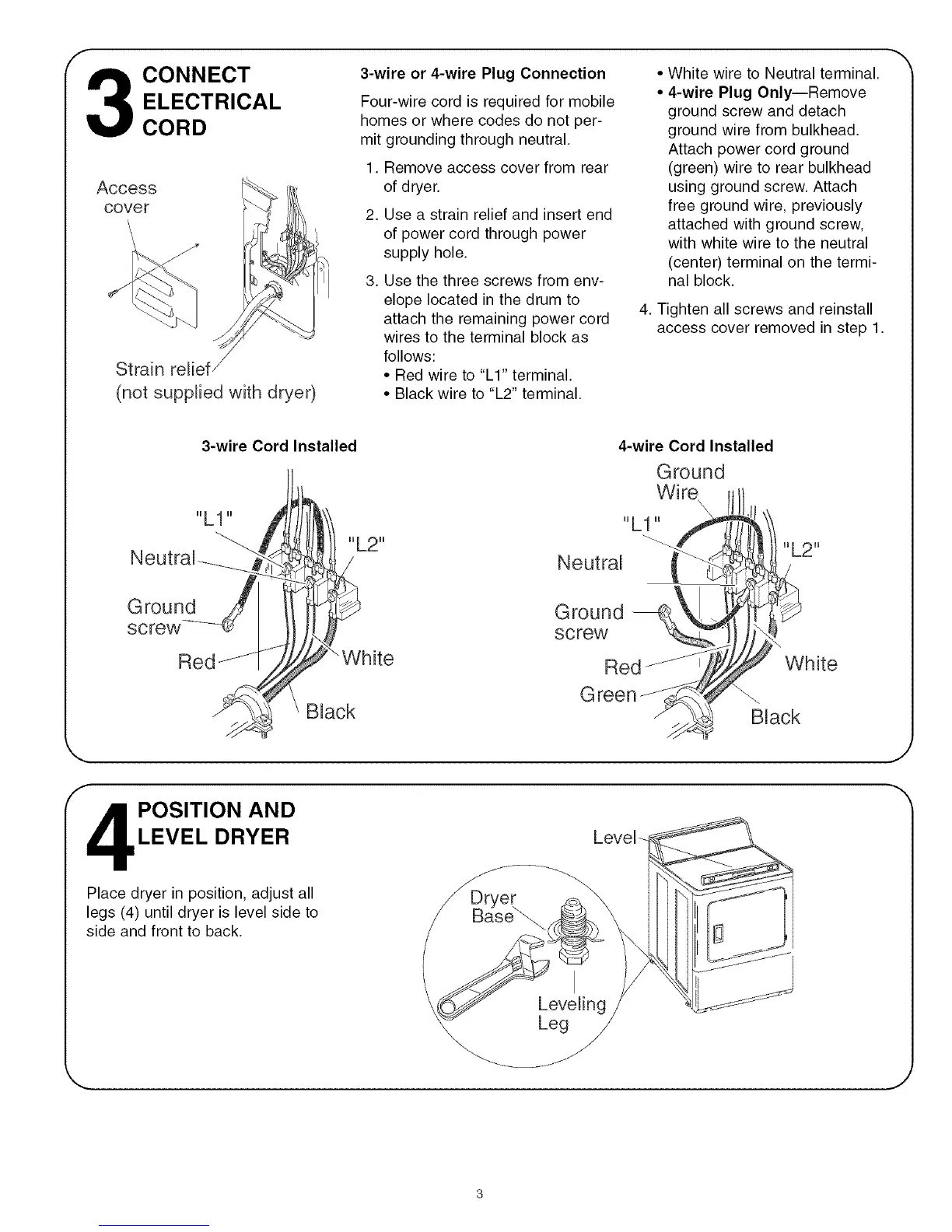

f
CONNECT
ELECTRICAL
CORD
Access
cover
Strain relief/
(not supplied with dryer)
3-wire or 4-wire Plug Connection
Four-wire cord is required for mobile
homes or where codes do not per-
mit grounding through neutral.
1. Remove access cover from rear
of dryer.
2. Use a strain relief and insert end
of power cord through power
supply hole.
3. Use the three screws from env-
elope located in the drum to
attach the remaining power cord
wires to the terminal block as
follows:
• Red wire to "LI" terminal.
• Black wire to '%2" terminal.
White wire to Neutral terminal.
4-wire Plug Only--Remove
ground screw and detach
ground wire from bulkhead.
Attach power cord ground
(green) wire to rear bulkhead
using ground screw. Attach
free ground wire, previously
attached with ground screw,
with white wire to the neutral
(center) terminal on the termi-
nal block.
4. Tighten all screws and reinstall
access cover removed in step 1.
3-wire Cord Installed
Ground
screw
4-wire Cord Installed
Ground
Wire,
"L1 "'
Neutral
White
Ground
screw
Red
Black
f
POSITION AND
LEVEL DRYER
Place dryer in position, adjust all
legs (4) until dryer is level side to
side and front to back.
Base_
White
Black
J
Leveling
Leg /
J
