5

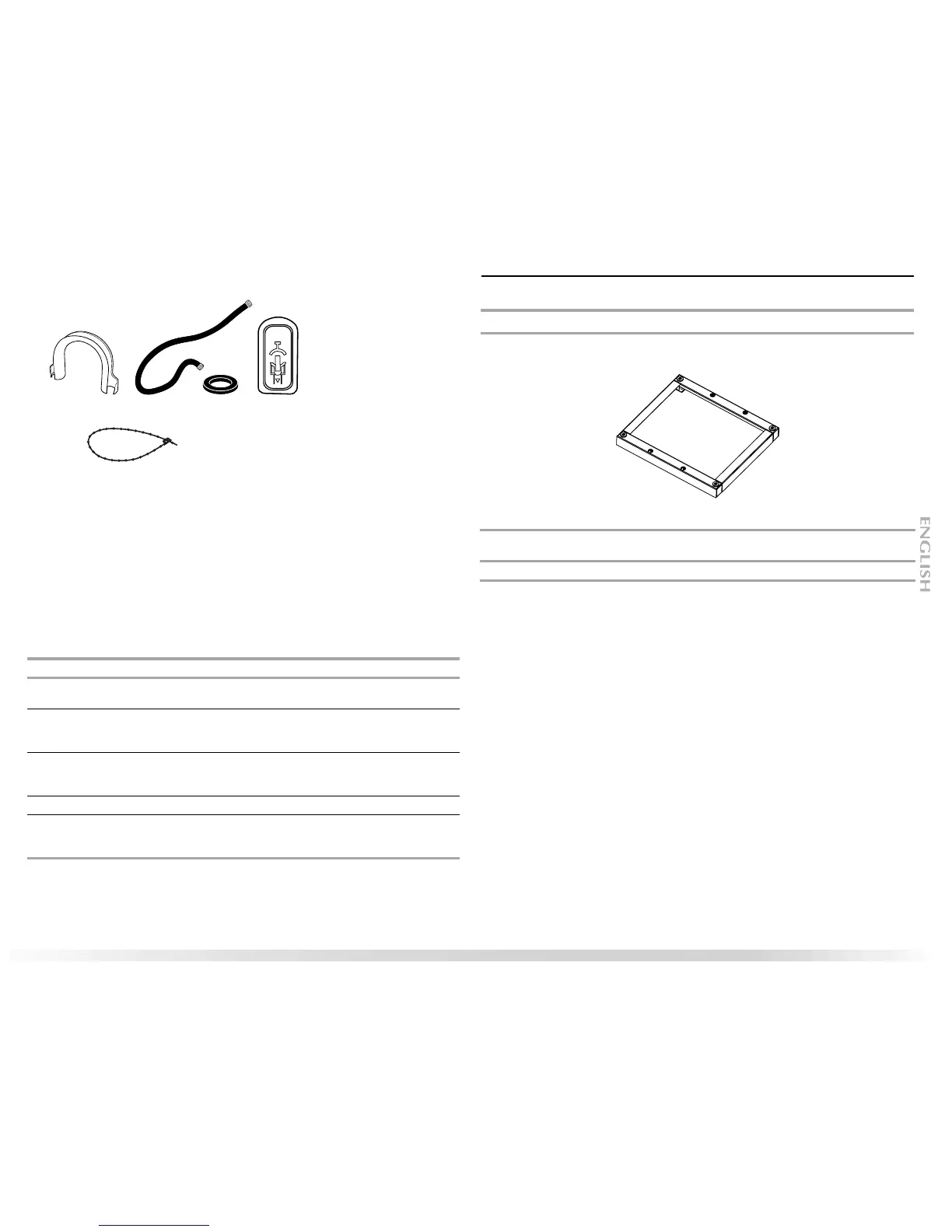

Parts supplied
Parts supplied for PD Models:
■ Service door lock cam
Parts supplied PR Models:
■ Card reader bezel
■ Card reader wire harness
■ Screws (2)
Alternate Parts
Your installation may require additional parts. If you are interested in purchasing one of the
items listed here, call the toll-free number on the cover or in the “Assistance or Service”
section.
Options
Pedestal
You have the option of purchasing pedestals, separately for this washer. The pedestal will add
to the total height of the washer.
Optional pedestal
A. U-shaped hose form
B. Water inlet hoses (2)
C. Inlet hose washers (4)
D. Transit bolt hole plug (4)
E. Beaded tie strap
If You Have You Will Need to Buy
Laundry tub or standpipe
taller than 96" (2.4 m)
Sump pump system (if not already available)
Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm) tall drain tub or
utility sink and sump pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part Number 285834; additional drain hose,
Part Number 8318155; and connector kit, Part
Number 285835
Drain hose too short 4 ft (1.2 m) drain hose extension kit, Part Number 285863
Water faucets beyond reach
of fill hoses
2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
AB C
D
E
Pedestal Height Approximate height
with washer
Color Model Number
2⁷⁄₈" (7.3 cm) 47.5" (120.7 cm) White WHP040
