Alternate parts: (Not supplied with washer)
Your installation may require additional parts. To order, please
refer to toll-free numbers on the back page of your “Use and
Care Guide”.
If you have: You will need:
Overhead sewer Standard 20 gal. (76 L) 39" (990 mm)
tall drain tub or utility sink, sump
pump and connectors (available from
local plumbing suppliers)
1" (25 mm) standpipe 2" (51 mm) diameter to 1" (25 mm)
diameter Standpipe Adapter
Part Number 3363920
Connector Kit Part Number 285835
Drain hose too short Extension Drain Hose Part
Number 285863
Connector Kit Part Number 285835
Lint clogged drain Drain Protector Part Number 367031
Connector Kit Part Number 285835
Floor drain system Siphon Break Kit Part Number 285834
Connector Kit (x2) Part Number 285835
Extension Drain Hose Part
Number 285863
Optional tools:
Parts supplied:
NOTE: All parts supplied for installation are in the washer
basket.
4" min
(102 mm)
Wood block
Adjustable or open end
wrenches 1/2" (13 mm)
and 9/16" (14 mm)
Ruler or measuring tape
Level
Pliers that open to
1
9
⁄
16
" (39.5 mm)
Flashlight Bucket
Cable tie
Drain hose with clamp
and form (may be shipped
unassembled)

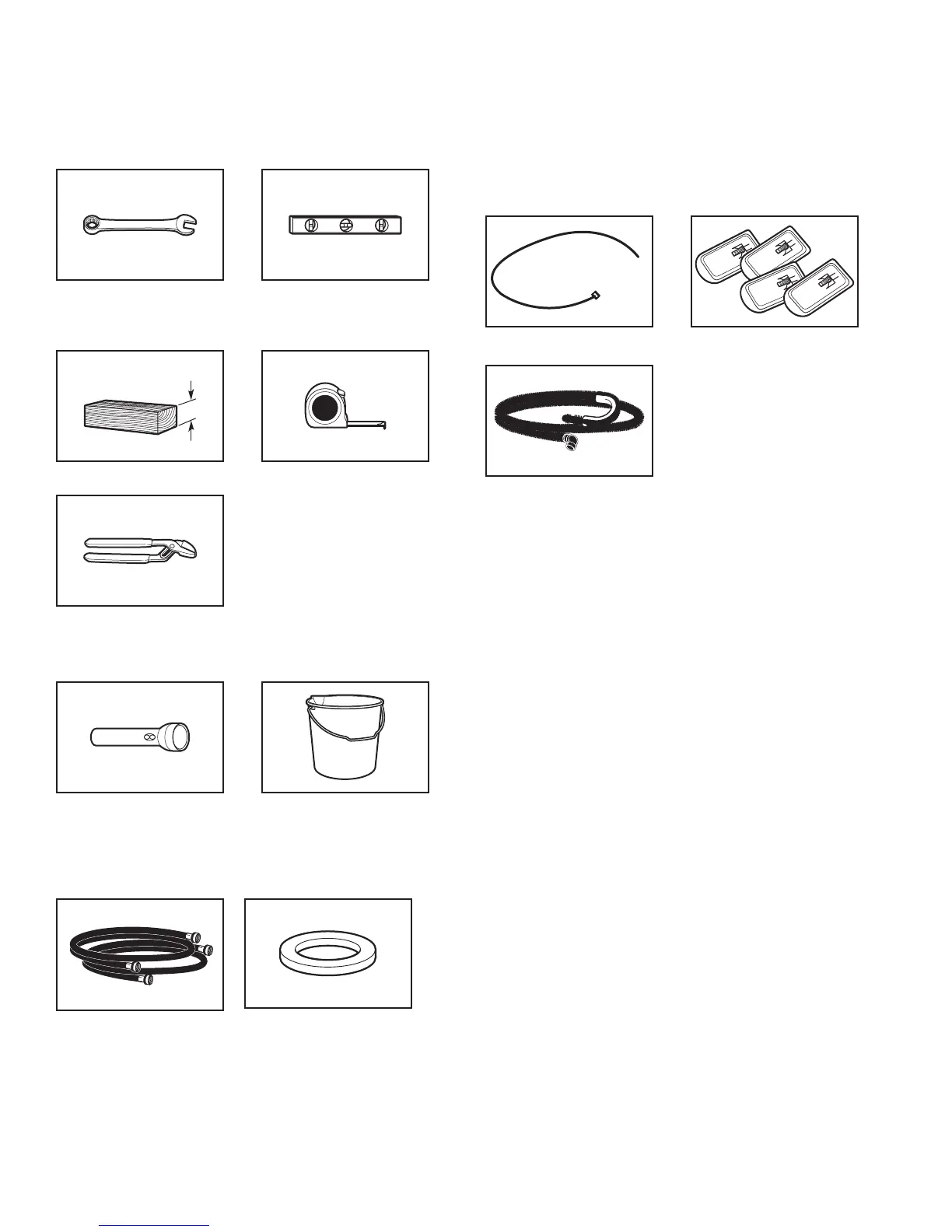

Tools needed:
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather required tools and parts before starting installation.
Transport bolt hole
plugs (4)
Available Accessories:
An optional matching pedestal is available for your washer.
Please contact your retailer for ordering information, or see
the “Assistance or Service” page on the back of your “Use and
Care Guide”.
Parts needed: (Not supplied with washer)
Water inlet hoses (2)
Flat inlet hose washers (4)
