Maintenance and Care
Owner Maintenance
Form No. 8Q94-EA-02G

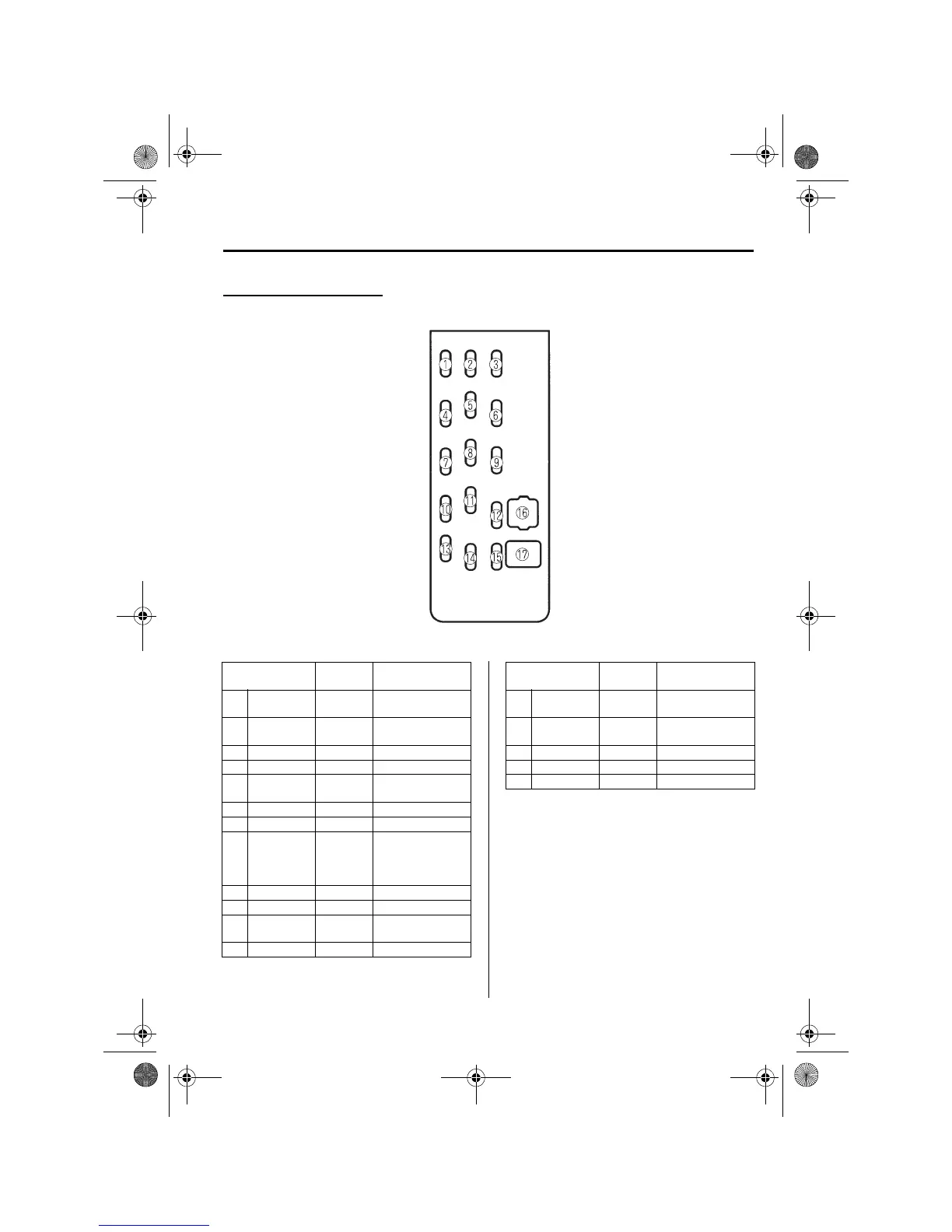

Fuse panel (Driver’s side)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1 S/WRM 15 A
For protection of
various circuits
2 H/CLN 20 A
For protection of
various circuits
3 RADIO 15 A Audio system
4 A/C 15 A Air conditioner
5 R.WIPER 10 A
For protection of
various circuits
6 —— —
7 —— —
8 ROOM 10 A
Interior lights,
Trunk light,
Luggage
compartment light
9MIRR DEF 10 A —
10 —— —
11
DOOR
LOCK
30 A Power door lock
12 P/WIND 30 A —
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
13 WIPER 20 A
Windshield wiper
and washer
14 ENGINE 10 A
Engine control
unit
15 METER 10 A Instrument cluster
16 —— —
17 P/WIND 30 A Power windows
