Mazda 2003 Protege - Engine Compartment Fuse Block; Fuse Panel Description

8-40
Maintenance and Care
Owner Maintenance
Form No. 8Q94-EA-02G
▼

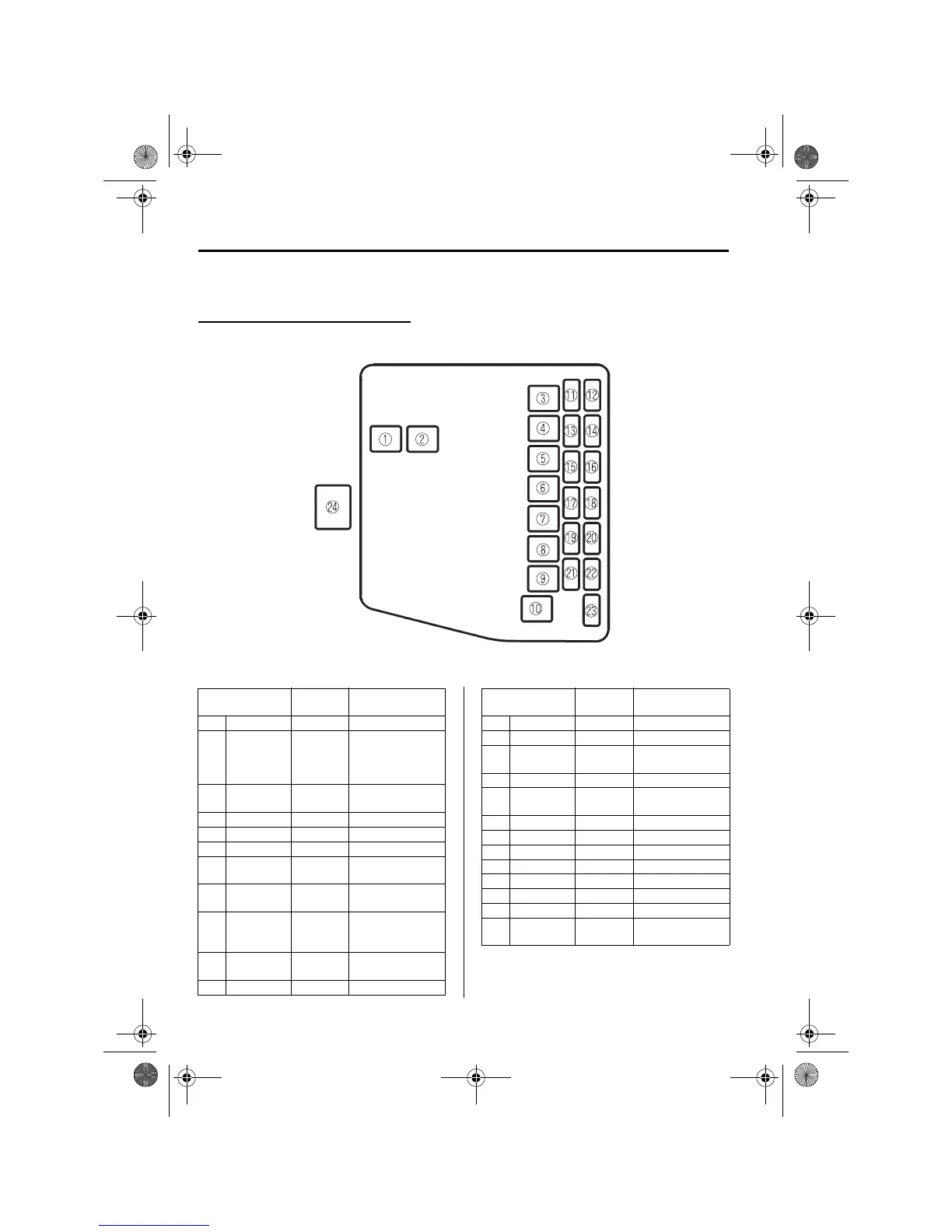

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1HEATER 40 A Heater
2 ABS 60 A
Antilock brake
system, For
protection of
various circuits
3 IG KEY 60 A
For protection of
various circuits
4 PTC 30 A —
5GLOW 40 A —
6 —— —
7
COOLING
FAN
30 A Cooling fan
8 BTN 40 A
Interior lights,
Power door lock
9 AD FAN 30 A
Additional
cooling fan for air
conditioner
10
INJ OR
FIP
30 A
Engine control
unit
11 A/C 10 A Air conditioner
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
12 ST.SIG 10 A Starter signal
13 HORN 15 A Horn
14 HAZARD 15 A
Hazard warning
flashers
15 TAIL 15 A Taillights
16
HEAD
C/U
7.5 A
For protection of
various circuits
17 FOG 15 A —
18 FOG 15 A Fog lights
19 STOP 15 A Brake lights
20 HEAD-R 15 A Headlight-right
21 HEAD-L 15 A Headlight-left
22 —— —
23 HEAD HI 15 A —
24 MAIN 100 A
For protection of
all circuits
