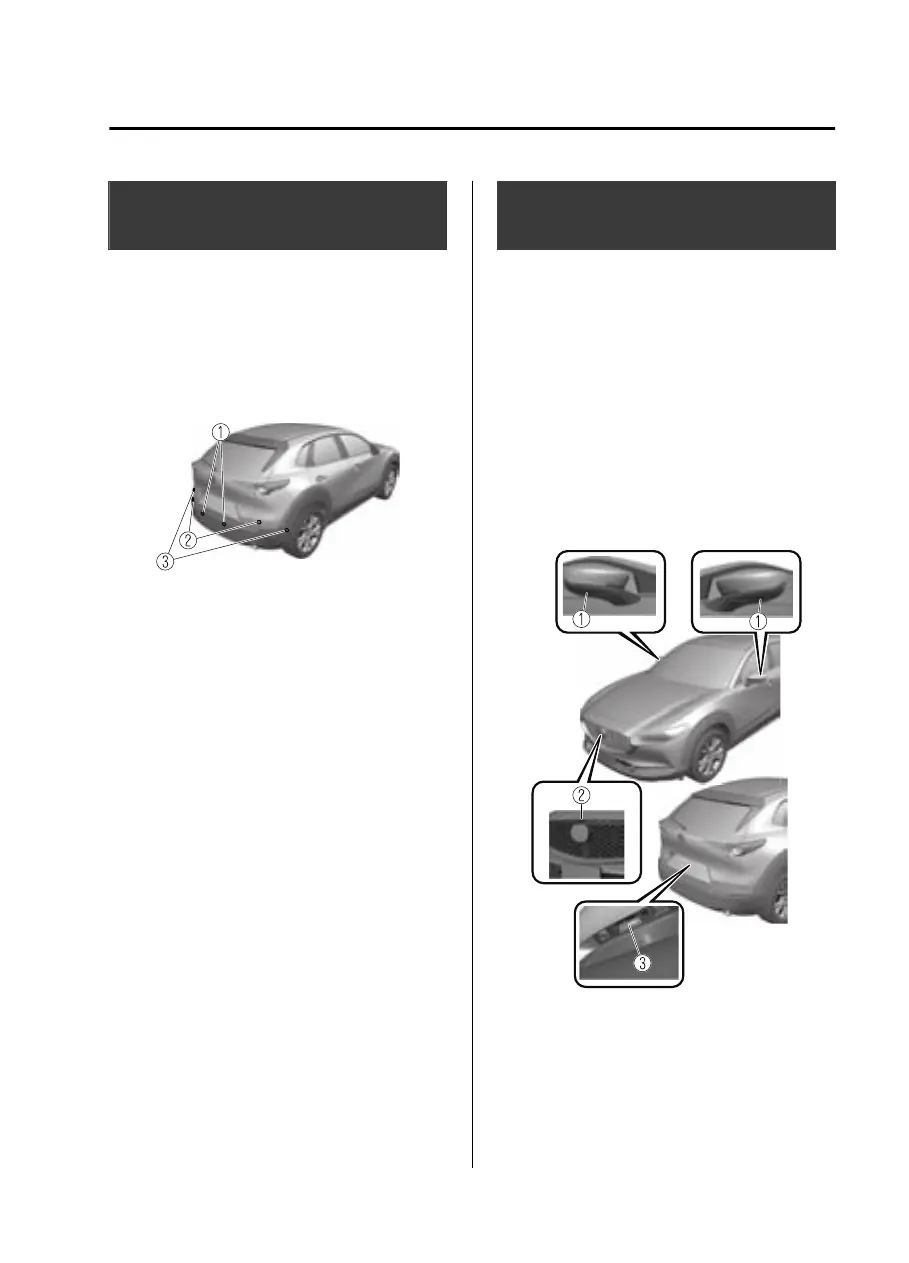

Rear/Rear corner/Rear
Side Ultrasonic Sensor
*
▼
Rear/Rear corner/Rear Side
Ultrasonic Sensor
The ultrasonic sensors function by
emitting ultrasonic waves which are
reflected
o
obstructions at the rear
and the returning ultrasonic waves are
picked up by the ultrasonic sensors.
1. Rear ultrasonic sensor
2. Rear corner ultrasonic sensor
3. Rear side ultrasonic sensor
The ultrasonic sensors are mounted in
the rear bumper.
Front Camera/Side
Cameras/Rear Camera
*
▼
Front Camera/Side Cameras/Rear
Camera
Your vehicle is equipped with a front
camera, side cameras, and a rear
camera. The 360°View Monitor uses
each camera.
Refer to 360°View Monitor on page
4-165.
The front camera, side cameras, and
rear camera shoot images of the area
surrounding the vehicle.
Each camera is installed to the
following positions.
1. Side cameras
2. Front camera
3. Rear camera
When Driving
i-ACTIVSENSE
*Some models.
4-207
