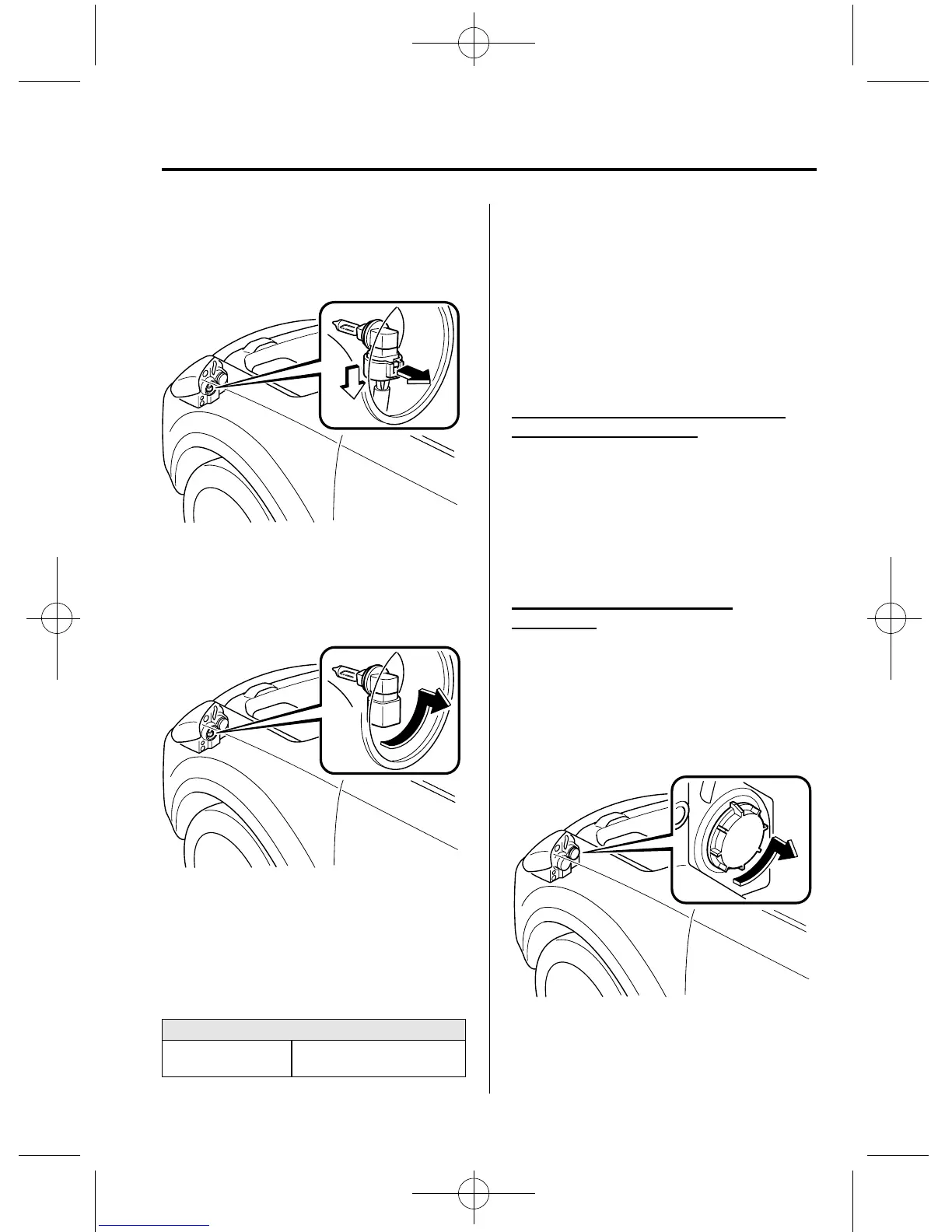

5. Disconne ct the electrical connector
from the bulb by pulling the tab on the
connector with your finger and pulling
the connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remo ve the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
8. Install the coolant reservoir. If you are
unsure of how tight the bolts should be,
have them inspected at an Aut horized
Mazda Dealer.
Bolt tightening torque
N·m (kgf·m, ft·lbf)
6.9―11.8
(0.7―1.2, 5.1―8.7)
NOTE
l
To replace the bulb, contact an Authorized
Mazda Dealer
l
If the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
l
Use the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Running lights/Parking lights (With
xenon fusion headlights)
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Parking lights (With halogen
headlights)
1. Make sure the igni tion is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Turn the cover counterclockwise and
remove it.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-43
