B–42
ENGINE

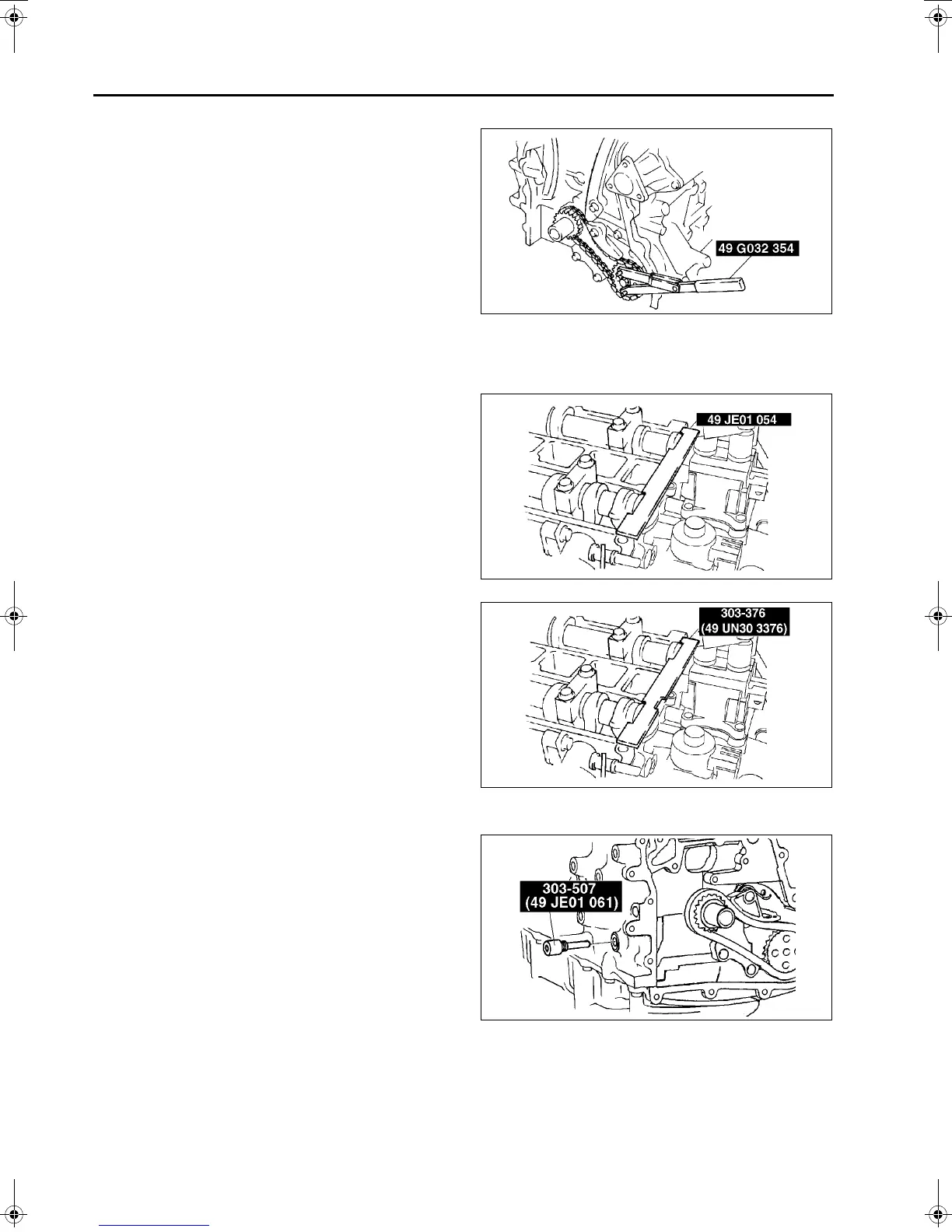

Oil Pump Sprocket Assembly Note
1. Hold the oil pump sprocket using the SST.
Timing Chain Aassembly Note
1. Install the SST to the camshaft, then align the No. 1 camshaft position with the TDC.
Europe
Except Europe
2. Remove the cylinder block lower blind plug.
3. Install the SST as shown.
4. Turn the crankshaft clockwise so that the
crankshaft is in the No.1 cylinder TDC position.
5. Install the timing chain.
AME2224E340
AME2224E329
AME2224E328
AMJ2224E666
