Mazda Mazda5 - Manual Type

Black plate (202,1)

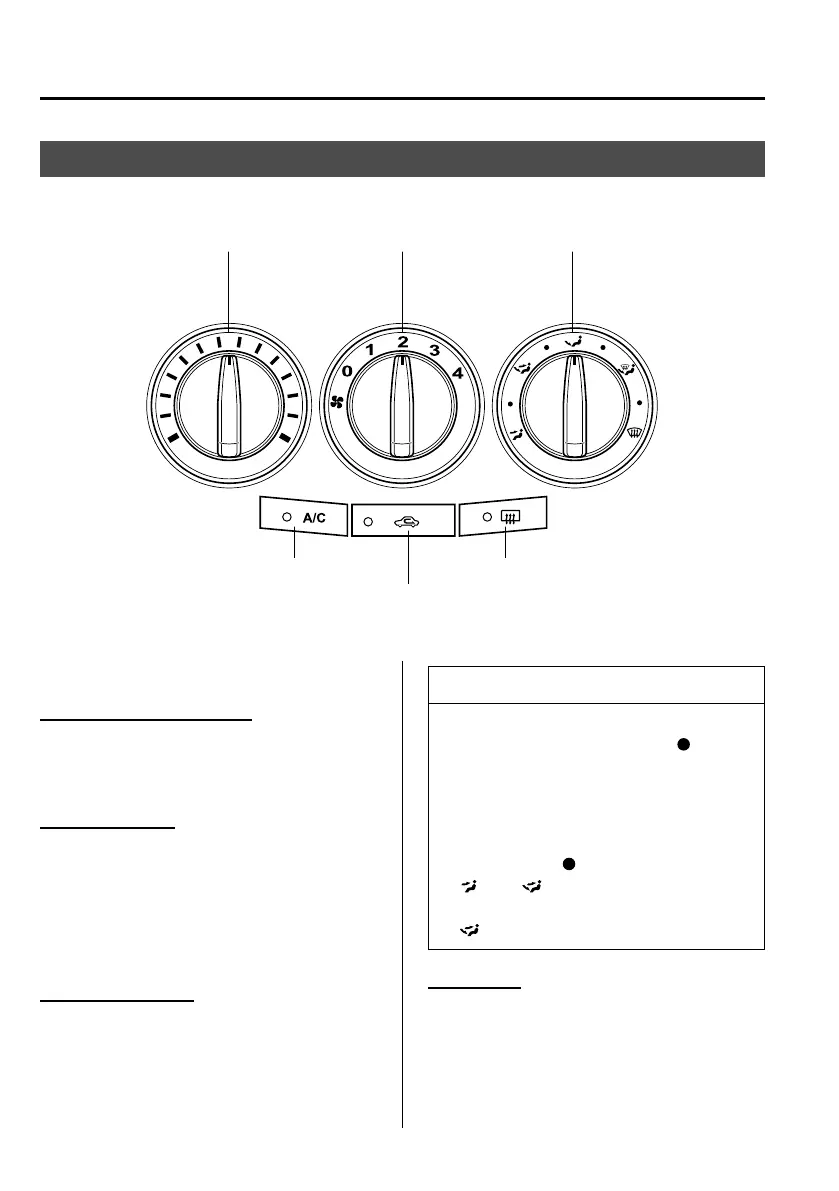

Manual Type
Temperature control dial Fan control dial Mode selector dial
A/C switch Rear window defroster switch
Air intake selector
qControl Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
Fan control dial
This dial allows variable fan speeds.
0―Fan off
1―Low speed
2―Medium low speed
3―Medium high speed
4―High speed
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-6).
NOTE
l
The mode selector dial can be set at
the intermediate positions (
)
between each mode. Set the dial to
an inte rmediate position if you want
to slightly adjust the airflow amount.
l
For example, when the mode selector
dial is at the
position between the
and positions, airflow from
the floor vent is less than that of the
position.
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illumi nate when the fan
control dial is set at position 1, 2, 3, or 4.
6-8
Interior Comfort
Air-Conditioning System
