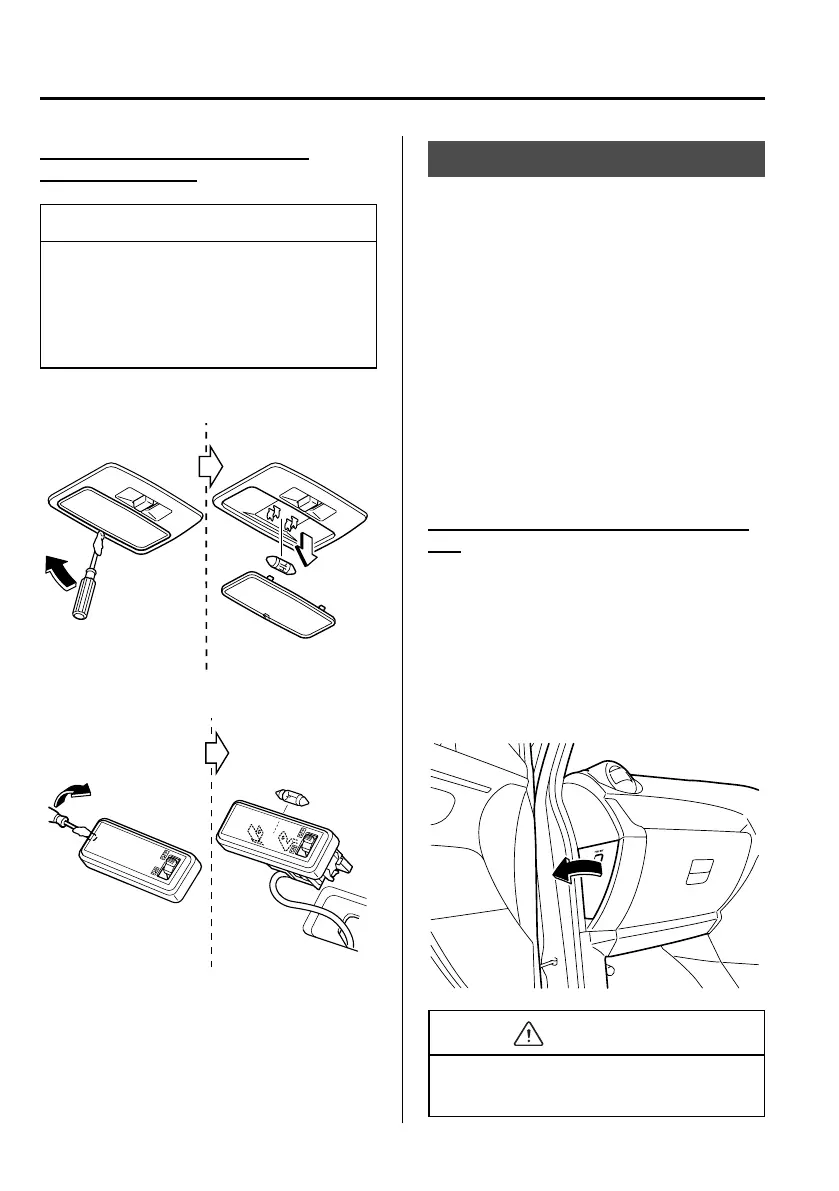

Overhead light (Rear), Luggage
compartment light
NOTE
Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
Overhead light (Rear)
Luggage compartment light
Install the new bulb in the reverse order of
the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that syst em and consult an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.
qFuse Replacement
Replacing the fuses on the passenger's
side
If the electrical system does not work,
first inspect the fuses on the passenger's
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off.
8-42
Maintenance and Care
Owner Maintenance
