CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor gen erator set).
(SKYACTIV-G 2.0)

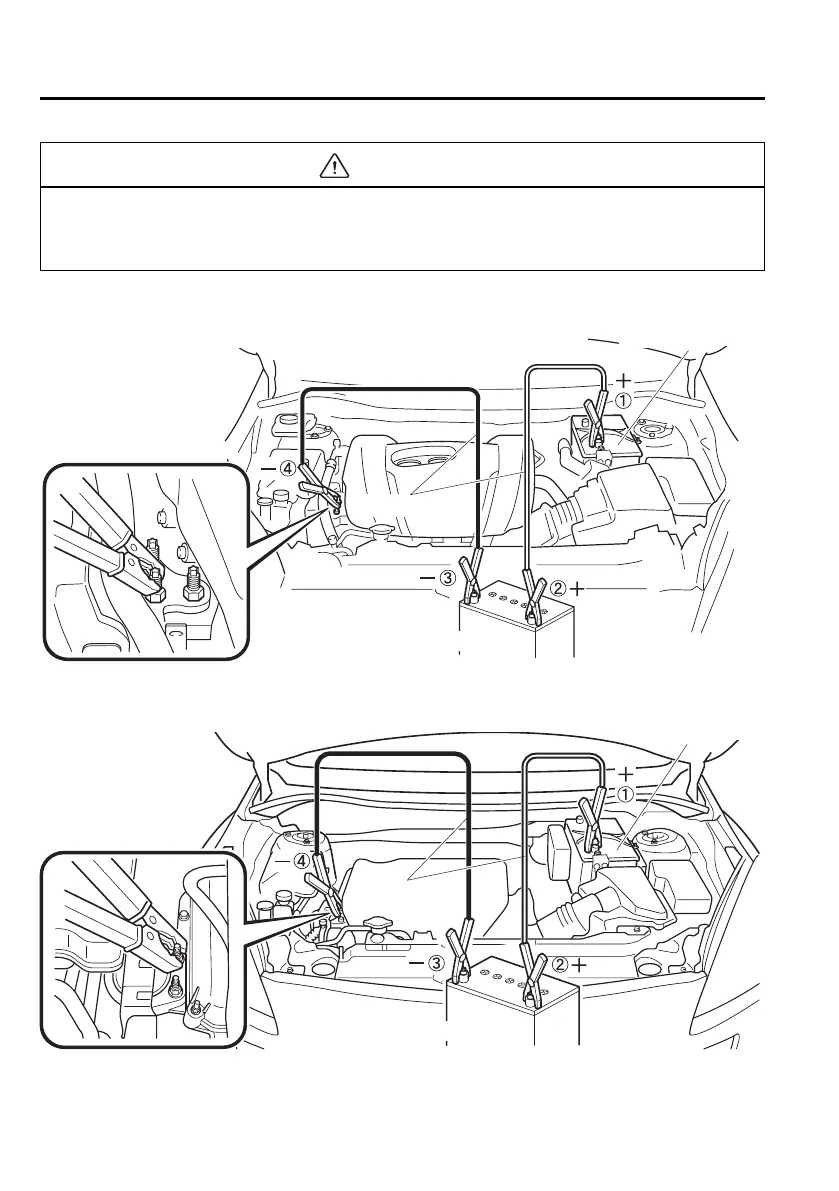

Connect leads in numerical order and disconnect in reverse order.
Jumper leads
Booster battery
Discharged battery
(MZR 2.0)
Jumper leads
Connect leads in numerical order and disconnect in reverse order.
Discharged battery
Booster battery
7-18
In Case of an Emergency
Emergency Starting
