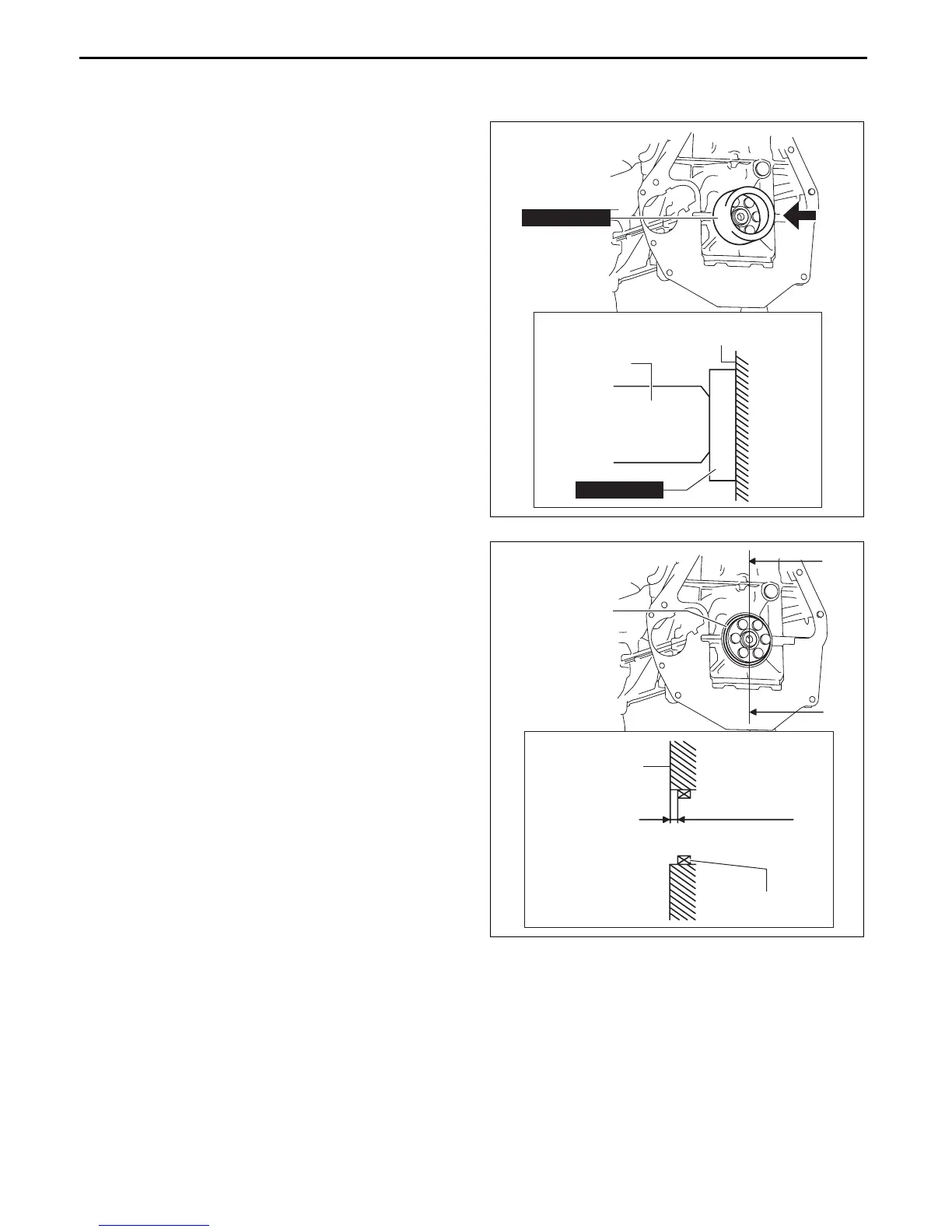

Rear Oil Seal Assembly Note
1. Apply clean engine oil to the inner surface of a new rear oil seal.
2. Insert the rear oil seal into the cylinder block by hand.
3. Tap the oil seal in evenly using the SST and a
hammer.
Rear oil seal press on amount
0—0.5 mm {0—0.019 in}
A
HAMMER
CYLINDER BLOCK
VIEW FROM A
49 S033 101
49 S033 101
bpe1ze00000056
B
B
SECTION B-B
REAR OIL SEAL
REAR OIL SEAL
CYLINDER BLOCK
0—0.5 mm
{0—0.019 in}
bpe5ue00000006
1A36-1U-12L.book 52 ページ ２０１２年１２月１０日 月曜日 午前９時２５分

Mazda SKYACTIV-G 2.5 Specifications

General

Fuel System	Direct injection
Compression Ratio	13.0:1
Aspiration	Naturally aspirated
Fuel Type	Gasoline
Engine Type	Inline 4 Cylinder
Displacement	2.5L (2488 cc)
Max Torque	186 lb-ft
Valvetrain	DOHC
