01-10–58
3. Tighten bolt A of the 5 bolts shown in the figure to
the specified torque first.
Tightening torque
8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
Note
• The tightening order for the remaining 3
bolts is optional.
Thermostat Assembly Note
1. Install the thermostat with the jiggle pin aligned
with the notch of the water outlet.
End Of Sie

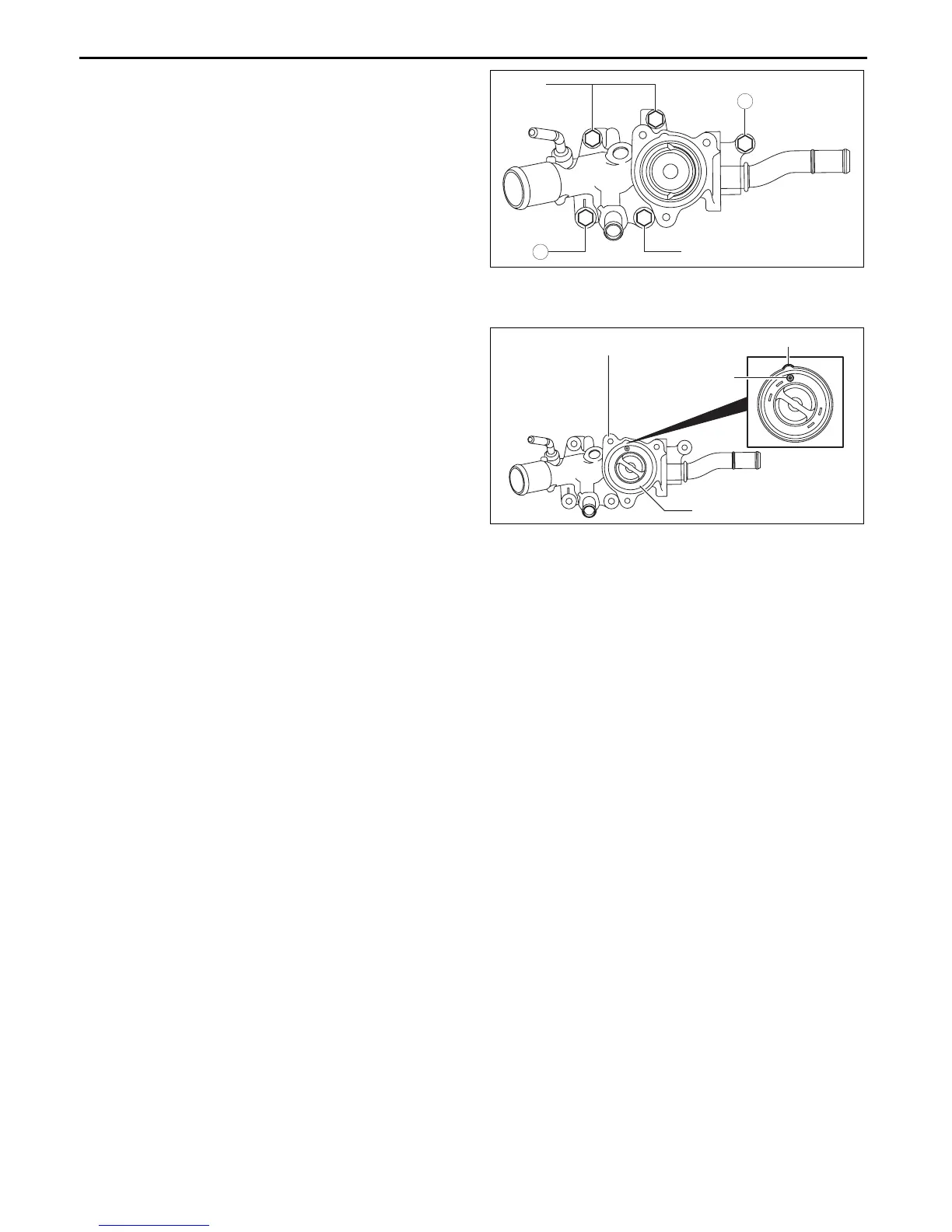

BOLT
A
A
BOLT
bpe1ze00000022
THERMOSTAT
WATER OUTLET
NOTCH
JIGGLE-PIN
bpe1ze00000023
