4 Transport, installation and commissioning
Commissioning
Page
4 - 30
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
► Fit the MB-MO-SE1 analyser into the pipework, using the tri-clamp flange and the
centre ring. Downstream the gas flow it must always be located behind the oxygen
analyser.
► Plug in the RJ45 connector for each analyser. Be sure that colours match.
4.2.8 Final inspection
The final inspection and specification test will be performed by an MBRAUN technician if
the installation was carried out by MBRAUN.
If the operating company performs the installation on its own, MBRAUN recommends
conducting a complete system and specification test before the system is put into opera-
tion.
4.3 Commissioning
If the delivered system is to be integrated into an existing system, or if the operating com-
pany intends to integrate additional components into the system the operating company
is responsible for ensuring compliance with the European Machine Directive 2006/42/EC.

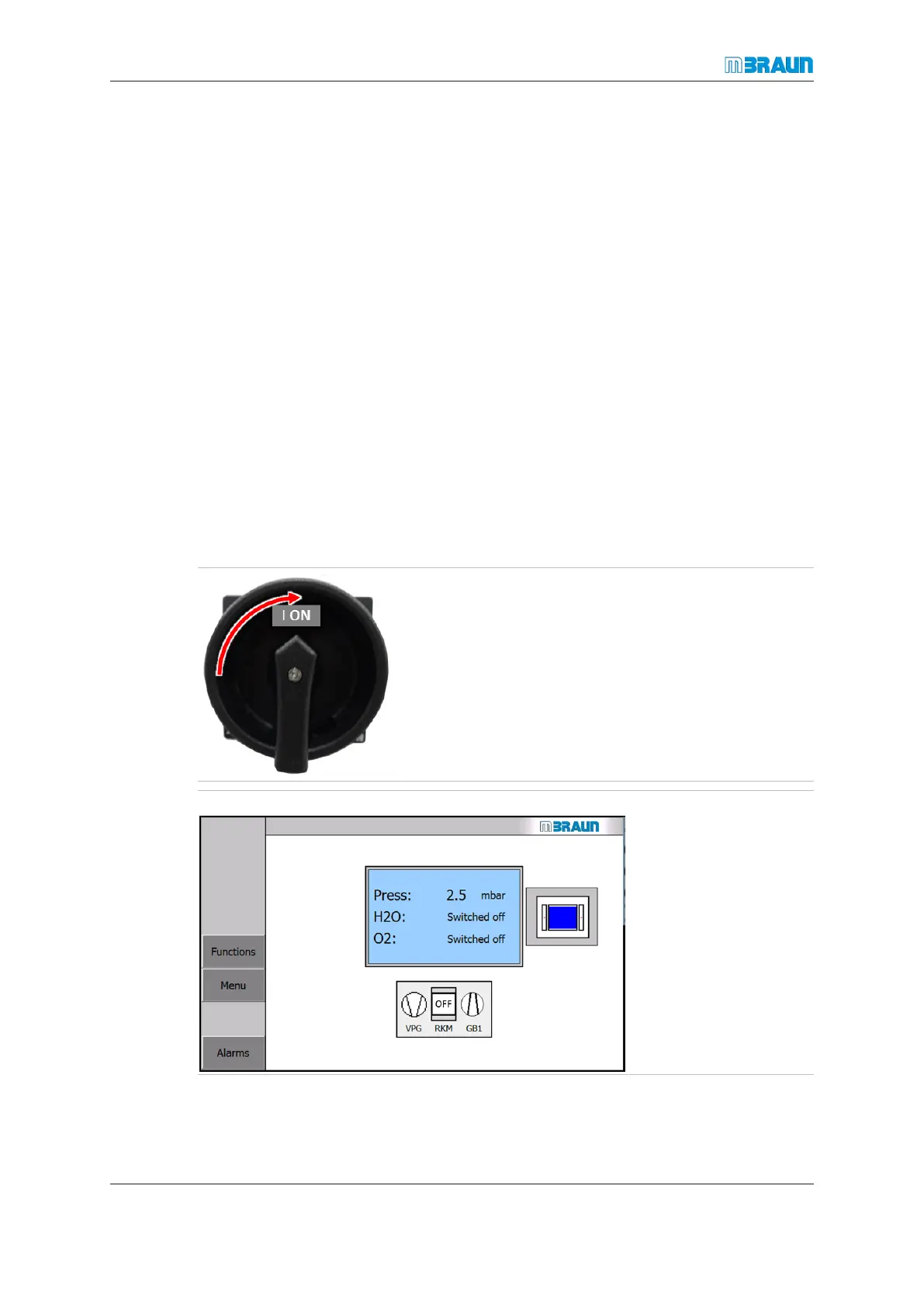

4.3.1 Switching on the system
The main switch is located at the electrical cabinet.
► Turn main switch to position I (on).
ð The system performs a self-test.
► If the self-test fails, check the Siemens PLC power
supply and connections.
► If the power supply and connections are functioning
properly, but the self-test still fails, call MBRAUN Ser-
vice.
Start Screen
Depending on how the
system is equipped, the
start screen may look dif-
ferent.
The following information
is displayed:
¡ Analysers are
plugged in, but
switched off.
¡ Circulation is switched
off.
