Intended Use
This "Mc Crypt MCB-1002" is an audio mixing desk for use in the home or semi-pro-
fessional environments. This appliance can mix low-level audio signals from various
sources of music. The appliance is positioned between the audio signal sources to
be mixed/controlled and an audio amplifier.
The product consists of a mixing desk and a power pack.
The power pack product has been approved for connection to 230 Volt / 50 Hz alter-
nating voltage only. You should only use the adaptor plug supplied or a 9V battery to
power the mixing desk. It may only be used in closed, dry rooms. Contact with moi-
sture must be avoided at all times.
The above described conditions could damage the product and could cause; short-
circuiting, fire and electric shock, etc. No part of the product should be altered or
modified and the housing should not be opened!
The safety instructions should be followed at all times!
Product Description
• Voltage supply via an adaptor plug or battery
• 2 mono inputs, 3 stereo inputs and 2 stereo cinch inputs
• Seperate adjustable input controls on each stereo channel for microphone and
LINE inputs
• INSERT function on mono inputs
• 3-band tone regulation
• Peak indicator for all inputs
• Seperated output regulation for monitor output and FX output
• Phantom power for condenser microphone
• MAIN, monitor and FX output
• 1 stereo output for recording the mixer signal
• Headphone connection
57

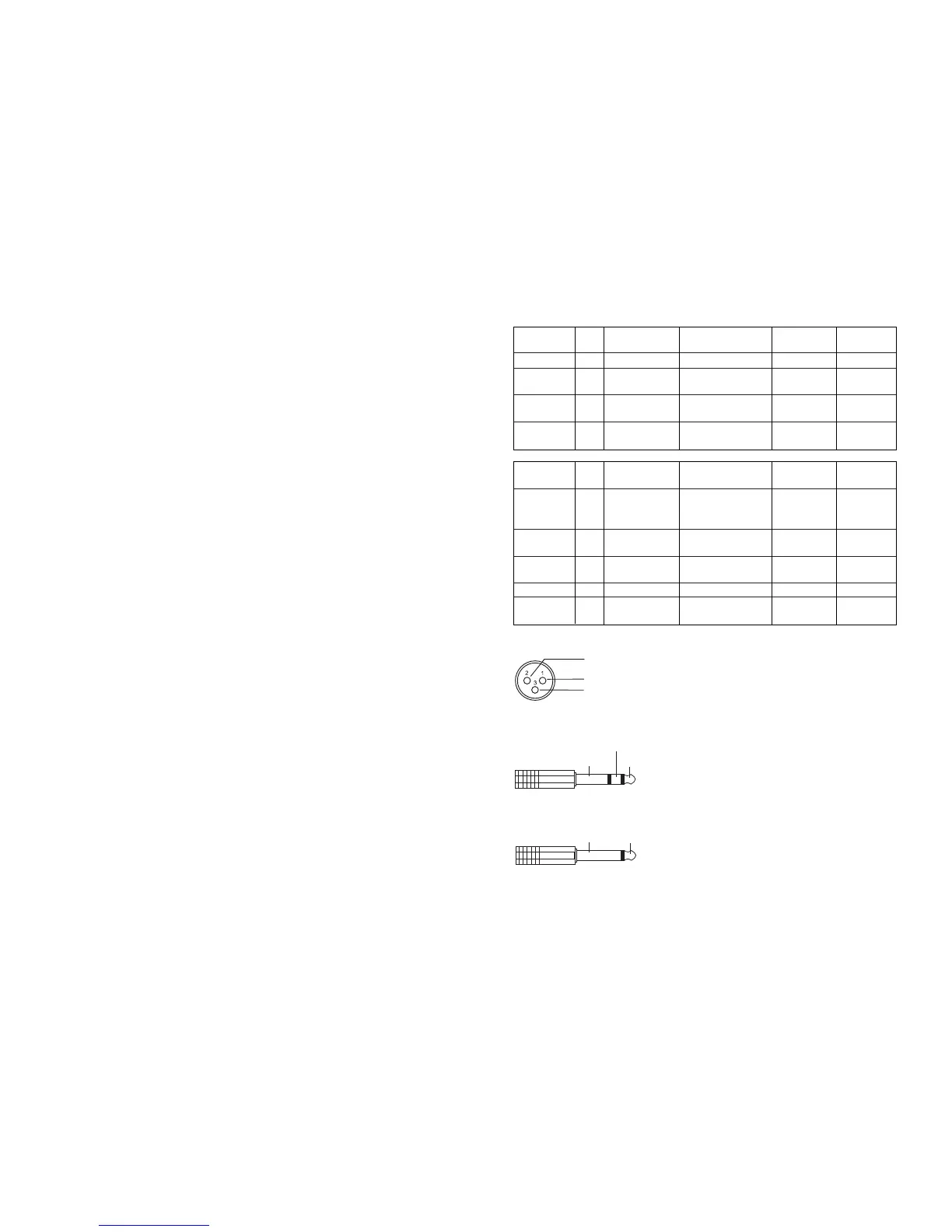

Inputs Am- Type Connection Input Input
ount Impedance level
Microphone 5 symmetrical XLR 2 kOhm -60 dB
Mono LINE 2 symmetrical 3-pole 6,3mm 47 kOhm -40 dB
inputs jack socket
Stereo LINE 3 unsymmetrical 2 x. 6,3mm 2 pole. 10 kOhm -10 dB
inputs jack socket
Stereo cinch 2 unsymmetrical 4 x. cinch sockets 10 kOhm -10 dB
inputs
outputs Am Type Connection Output
Output
ount Impedance level
Stereo 1 symmetrical 2 x. 3-pole 100 Ohm +10 dB
Master 6.3mm
Output: jack socket
FX SEND 1 asymmetrical 2-pole 6,3mm 75 Ohm +4 dB
jack socket
MON 1 asymmetrical 2-pole 6,3mm 75 Ohm +4 dB
jack socket
REC-OUT 1 asymmetrical 4 cinch sockets 1 kOhm -6 dB
Headphones 1 asymmetrical 3-pole 6,3mm 100 Ohm 3 mW
jack socket 36 Ohm
XLR socket
Symmetrical jack plug
Asymmetrical jack plug
(2) Plus + (HOT)
(1) Masse (GROUND)
(3) Negativ - (Cold)
(2) Plus + (HOT)
(1) Ground (GROUND)
(2) Negativ - (Cold)
Ring = Signal (-)
Tip = Signal (+)
Shank = Ground
Shank = Ground
Tip = Signal (+)
