Connecting the Speaker Outputs
The line towards the satellite speakers must be a bifilar cable. Make sure that the cables are not
damaged by sharp edges.
Only use speakers with sufficient load capacity (see “Technical Data”).
Observe that the speakers have the correct polarity.
The installed satellite end stage was developed for operation with speaker impedances of at
least 4 Ohm. Never connect speakers with a lower impedance.
Also observe the connection values in the chapter “Technical Data”.

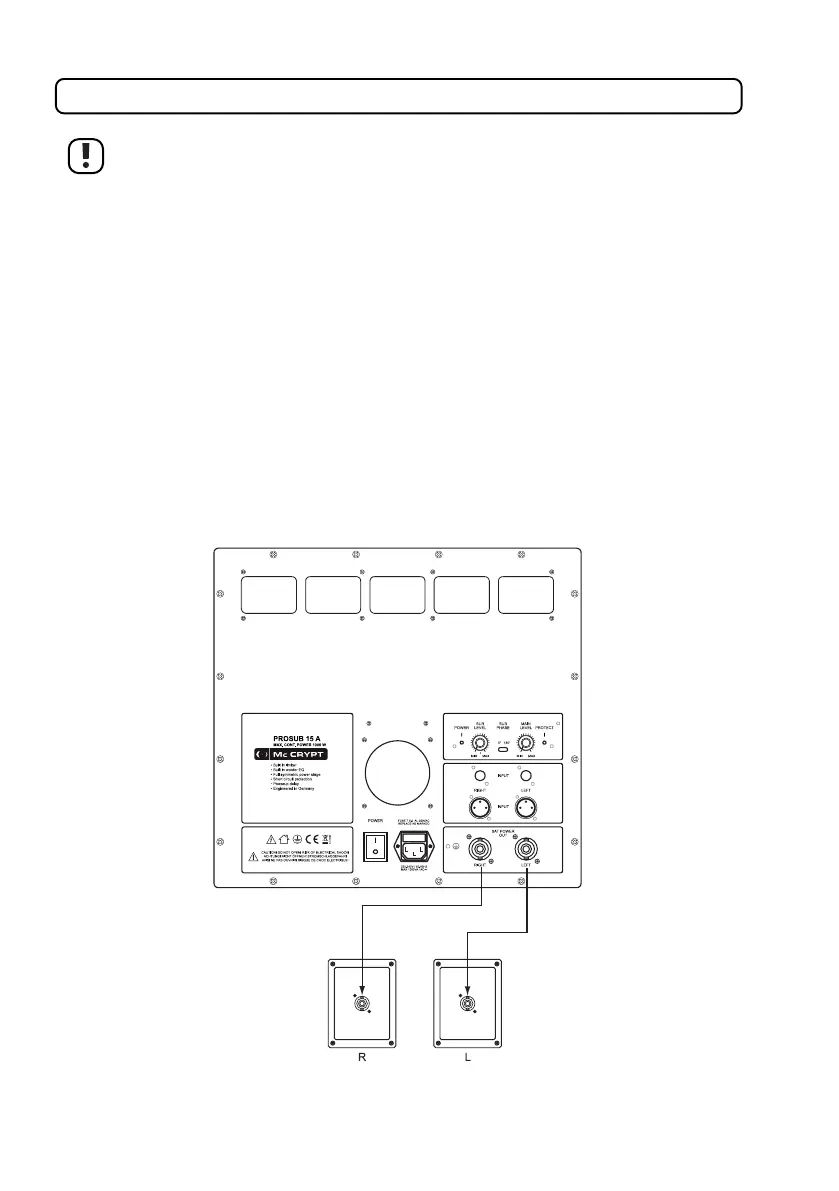

• Connect the SAT POWER OUT (10) connections to the speaker inputs of the satellite speakers.
• Connect the SAT POWER OUT RIGHT connection to the right satellite speaker connection and the SAT POWER
OUT LEFT connection to the left satellite speaker connection.
Plug assignment of the SPK connections:
(1+) positive connection
(1-) negative connection
