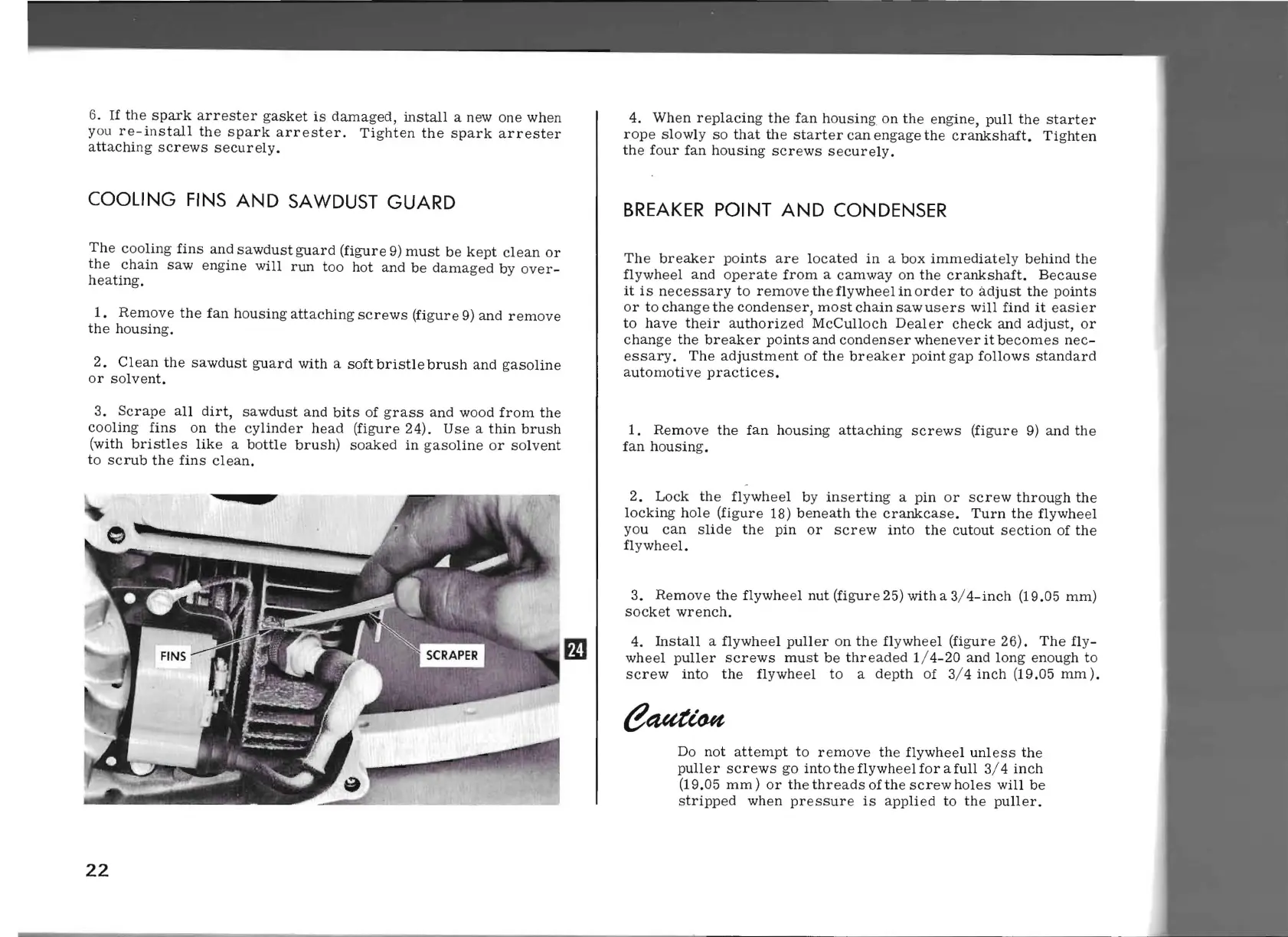

6.
If
the
spark
arrester
gasket
is
damaged,
install
a new
one
when
you
re-install
the
spark
arrester.
Tighten
the
spark
arrester
attaching
screws
securely.
COOLI
NG
FI
NS
AN D
SAWDUST
GUARD
The
cooling
fins
and
sawdust
guard
(figure
9)
must
be
kept
clean
or
the
chain
saw
engine
will
run
too
hot and
be
damaged
by
over-
heating.
1.
Remove
the
fan
housing
attaching
screws
(figure
9)
and
remove
the
housing.
2.
Clean
the
sawdust
guard
with
a
soft
bristle
brush
and
gasoline
or
solvent.
3.
Scrape
all
dirt,
sawdust
and
bits
of
grass
and
wood
from
the
cooling
fins
on
the
cylinder
head
(figure
24).
Use
a
thin
brush
(with
bristles
like
a
bottle
brush)
soaked
in
gasoline
or
solvent
to
scrub
the
fins
clean.
m
4.
When
replacing
the
fan
housing
on
the
engine,
pull
the
starter
rope
slowly
so
that
the
starter
can
engage
the
crankshaft.
Tighten
the
four
fan
housing
screws
securely.
BREAKER
POINT AND
CONDENSER
The
breaker
pOints
are
located
in
a
box
immediately
behind
the
flywheel
and
operate
from
a
camway
on
the
crankshaft.
Because
it
is
necessary
to
remove
the
flywheel
in
order
to
adjust
the
pOints
or
to
change
the
condenser,
most
chain
saw
users
will
find
it
easier
to
have
their
authorized
McCulloch
Dealer
check
and
adjust,
or
change
the
breaker
pOints and
condenser
whenever
it
becomes
nec-
essary.
The
adjustment
of
the
breaker
point
gap
follows
standard
automotive
practices.
1.
Remove
the
fan
housing
attaching
screws
(figure
9)
and
the
fan
housing.
2.
Lock
the
flywheel
by
inserting
a
pin
or
screw
through
the
locking
hole
(figure
18)
beneath
the
crankcase.
Turn
the
flywheel
you
can
slide
the
pin
or
screw
into
the
cutout
section
of
the
flywheel.
3.
Remove
the
flywheel
nut
(figure25)witha3
/
4-inch
(19.05
mm)
socket
wrench.
4.
Install
a
flywheel
puller
on
the
flywheel
(figure
26).
The
fly-
wheel
puller
screws
must
be
threaded
1/
4-20
and
long
enough
to
screw
into
the
flywheel
to
a
depth
of 3/ 4
inch
(19.05
mm).
eauttfm
Do
not
attempt
to
remove
the
flywheel
unless
the
puller
screws
go
into
the
flywheelfor
a
full
3/ 4
inch
(19.05
mm)
or
the
threads
ofthe
screw
holes
will
be
stripped
when
pressure
is
applied
to
the
puller.
22
