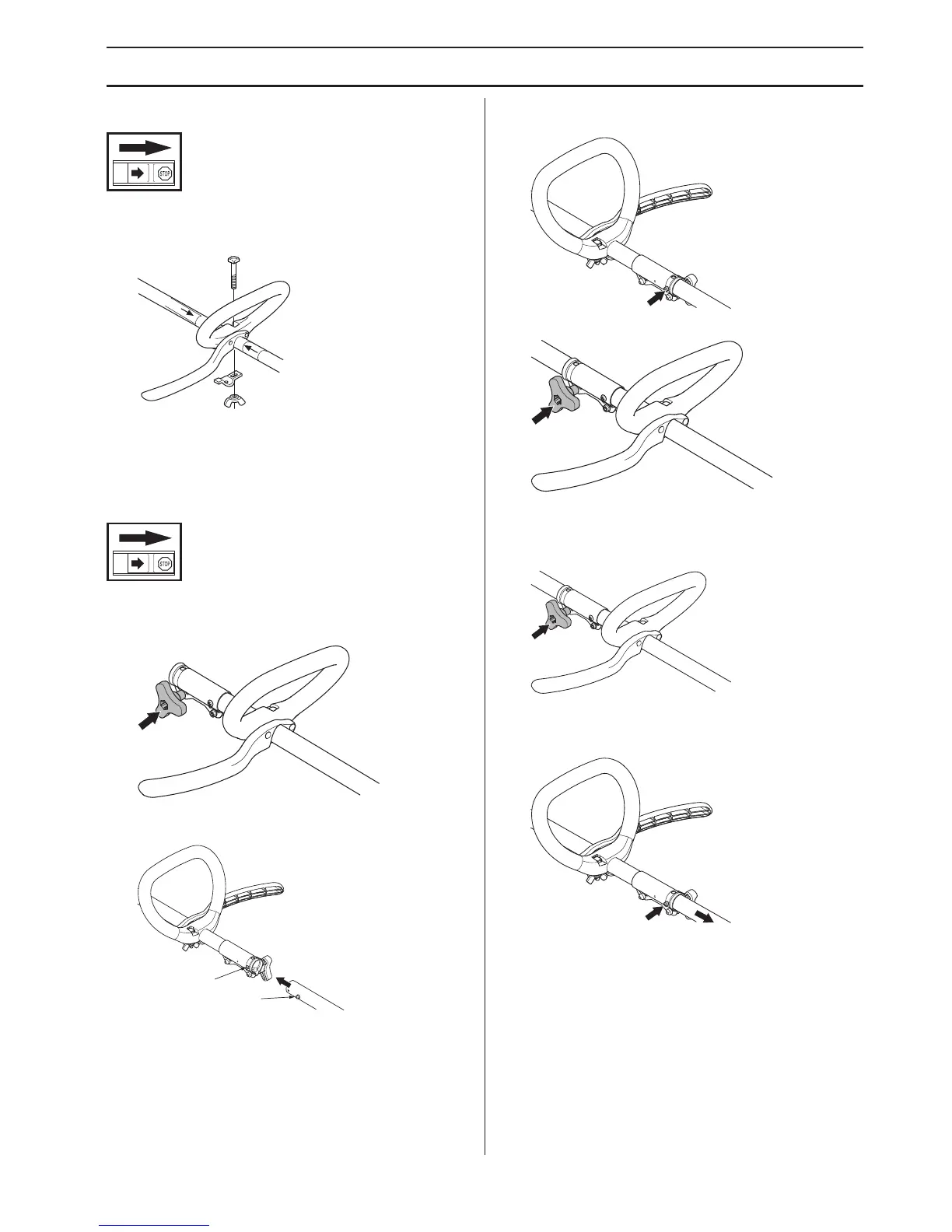

ASSEMBLY
English
11
Fitting the P-barrier
Clip the loop handle with the P-barrier onto the shaft. Note
that the loop handle must be fitted between the arrows on
the shaft.
Fit the bolt, securing plate and wing nut as shown in
the diagram. Tighten the wing nut.
Assembling and dismantling the
two-piece shaft
Assembly:
Loosen the coupling by turning the knob.
Align the tab of the attachment (A) with the hole in the
coupling (B).
Push the attachment into the coupling until the
attachment snaps into place.
Before using the unit, tighten the knob securely.
Dismantling:
Loosen the coupling by turning the knob (at least 3
times).
Push and hold the button (C). While securely holding
the engine end, pull the attachment straight out of the
coupling.
B
A
C
