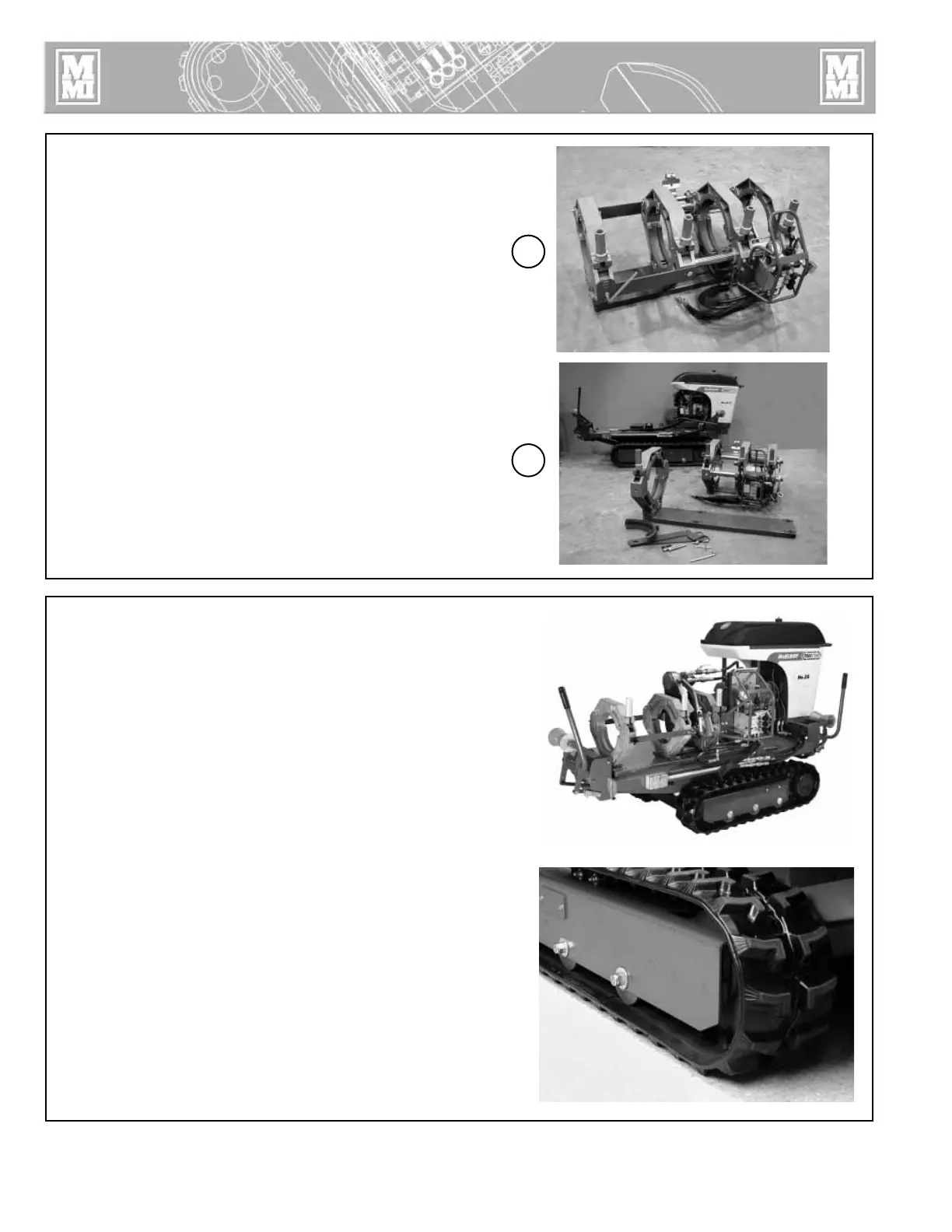

Chassis
The carriage assembly is mounted on a track driven chassis for
easy loading and movement along the pipe line.
The engine powers an alternator, used to power the heater, and a
hydraulic pump, which powers the fusion machine and the track
drive. A belt drive is used to transfer the power. The hydraulic
reservoir is mounted above the engine. The fuel tank and battery
are installed between the tracks.
TX01854-11-15-00
PH01966-11-15-00
PH01959-11-15-00
Carriage Assembly
The carriage assembly consists of two fixed jaws and two
hydraulically operated movable jaws bolted to the skid. For
remote operation the carriage can be set in ditch and connected
to the machine with optional hydraulic extension hoses.The
carriage assembly (A) can be disconnected from the chassis (B)
and removed for remote operation. The optional extension hose
kit is required for this operation.
For tight installations the outer fixed jaw and skid can be removed
from the carriage for an even more compact fusion unit.
TX01891-11-15-00
Overview
2 - 2
PH01940-11-15-00
PH01953-11-15-00
A
B
