Crusader
MC-8
COMPRESSOR
[ "'°' 16-38
MAINTENANCE
DATE__,J=ul_J_.Ly, ___:___:_19....:..__::_73 __ ] MANUAL

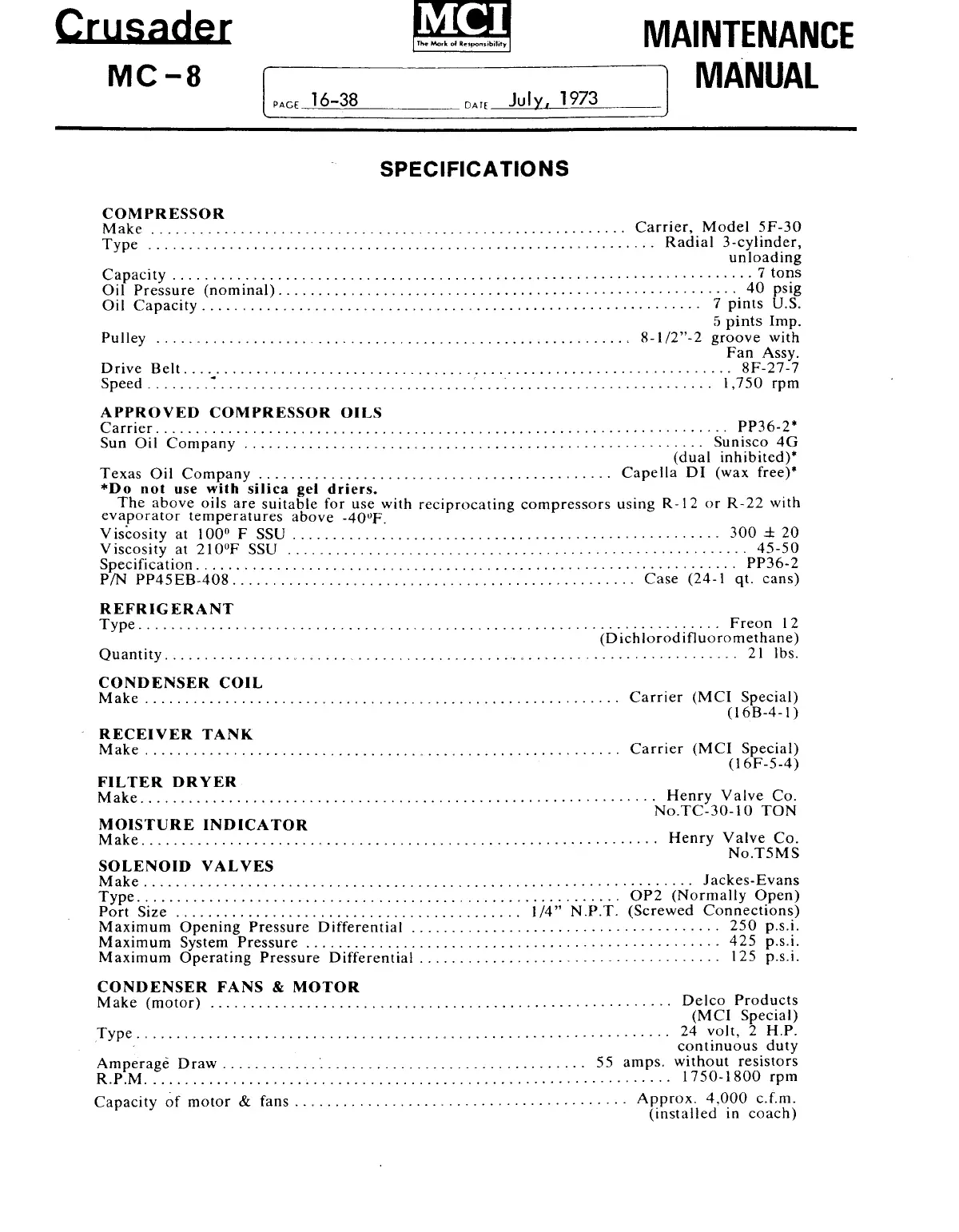

SPECIFICATIONS
Make ........................................................... Carrier, Model 5F-30
Type ............................................................... Radial 3-cylinder,
unloading
Capacity ........................................................................ 7 tons
Oil Pressure (nominal) ......................................................... 40 psig
Oil Capacity..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 pints U.S.
5 pints Imp.
Pulley ........................................................... 8-1/2"-2 groove with
Fan Assy.
Drive Belt. ................................................................... 8F-27-7
Speed ....... -~ ................................... : ......................... 1,750 rpm
APPROVED COMPRESSOR OILS
Carrier ....................................................................... PP36-2*
Sun Oil Company . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sunisco 4G
(dual inhibited)*
Texas Oil Company ............................................ Capella DI (wax free)*
*Do not use with silica gel driers.
The above oils are suitable for use with reciprocating compressors using R-12 or R-22 with
evaporator temperatures above -40"F.
Viscosity at l00° F SSU ..................................................... 300 ± 20
Viscosity at 2I0°F SSU ......................................................... 45-50
Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PP36-2
PIN PP45EB-408 .................................................. Case (24-1 qt. cans)
REFRIGERANT
Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Freon 1 2
(Dichlorodifluoromethane)
Quantity. . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 lbs.
CONDENSER COIL
Make ........................................................... Carrier (MCI Special)
(16B-4-1)
RECEIVER TANK
Make ........................................................... Carrier (MCI Special)
(16F-5-4)
FILTER DRYER
Make ................................................................ Henry Valve Co.
No.TC-30-10 TON
MOISTURE INDICATOR
Make ................................................................ Henry Valve Co.
No.T5MS
SOLENOID VALVES
Make .................................................................... Jackes-Evans
Type ............................................................ OP2 (Normally Open)
Port Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I /4" N .P. T. (Screwed Connections)
Maximum Opening Pressure Differential ...................................... 250 p.s.i.
Maximum System Pressure ................................................... 425 p.s.i.
Maximum Operating Pressure Differential ..................................... 125 p.s.i.
CONDENSER FANS & MOTOR
Make (motor) ......................................................... Delco Products
(MCI Special)
Type .................................................................. 24 volt, 2 H.P.
· · continuous duty
Amperage Draw ............ · ................................. 55 amps. without resistors
R.P.M ................................................................. 1750-1800 rpm
Capacity of motor & fans ......................................... Approx. 4.000 c.f.m.
(installed in coach)
