MAINTENANCE
Crusader
MC-8
[.,
0
,_1_-7
___
DAIE_M~ay~,
_19_74
__
] ·
MANUAL

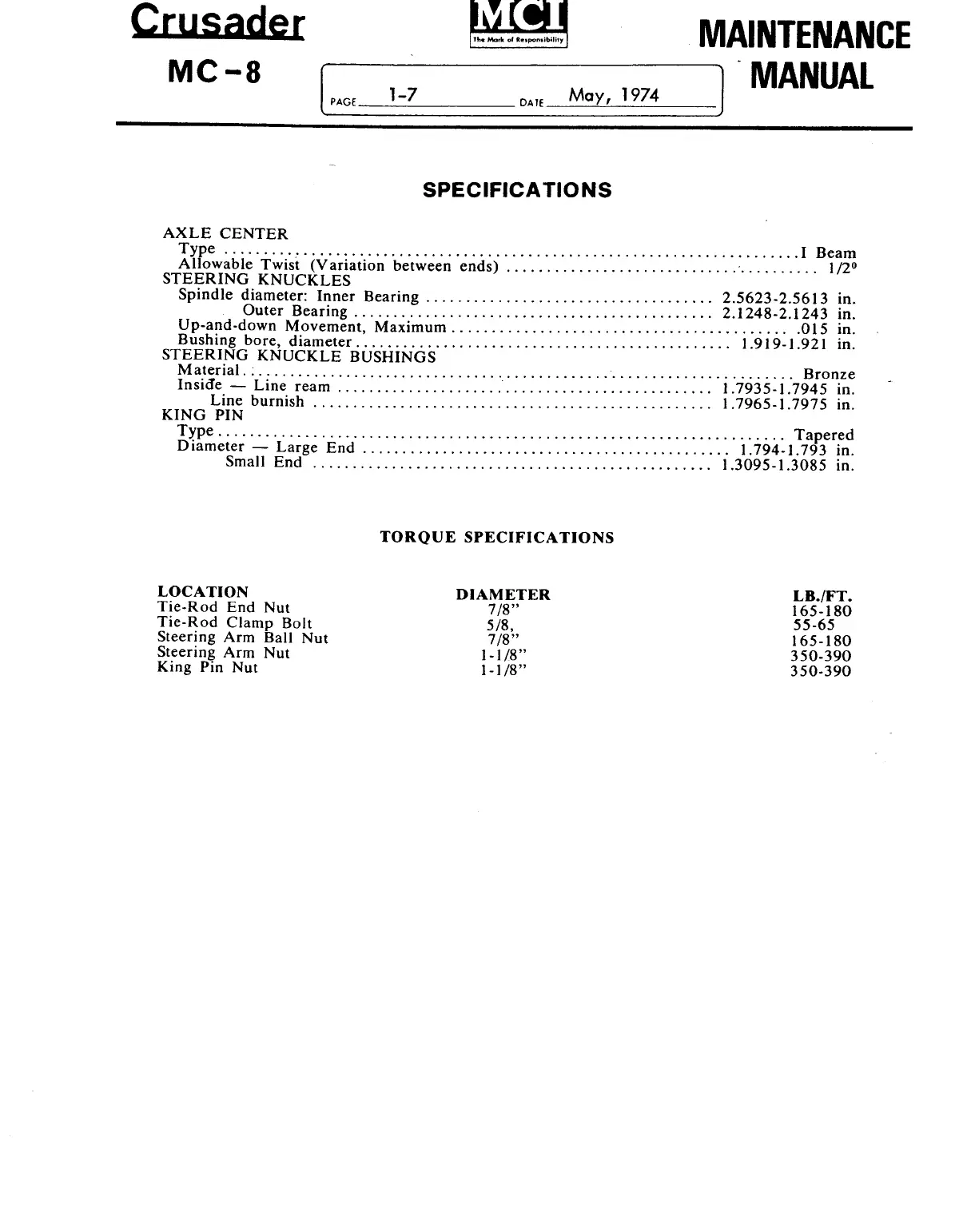

SPECIFICATIONS
AXLE
CENTER
Type
.........
_.
..............................................................
I
Beam
Allowable
Twist
(Variation
between
ends)
.......................................
1/2°
STEERING
KNUCKLES
Spindle
diameter:
Inner
Bearing
....................................
2.5623-2.5613
in.
Outer
Bearing
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1248-2.1243
in.
Up-and-down
Movement,
Maximum
...........................................
015
m.
Bushing
bore,
diameter.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.919-1.921 m.
STEERING
KNUCKLE
BUSHINGS
Material.
:
...................................................................
Bronze
Inside
-
Line
ream
...............................................
1.7935-1.7945
in.
Line
burnish
..................................................
1.7965-1.7975
in.
KING
PIN
Type
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tapered
Diameter
-
Large
End
..............................................
1.794-1.793
in.
Small
End
..................................................
1.3095-1.3085
in.
LOCATION
Tie-Rod
End
Nut
Tie-Rod
Clamp
Bolt
Steering
Arm
Ball
Nut
Steering
Arm
Nut
King Pin
Nut
TORQUE
SPECIFICATIONS
DIAMETER
7
/8"
5/8,
7
/8"
1-1/8"
1-1/8"
LB./FT.
165-180
55-65
165-180
350-390
350-390
