Packing Instructions

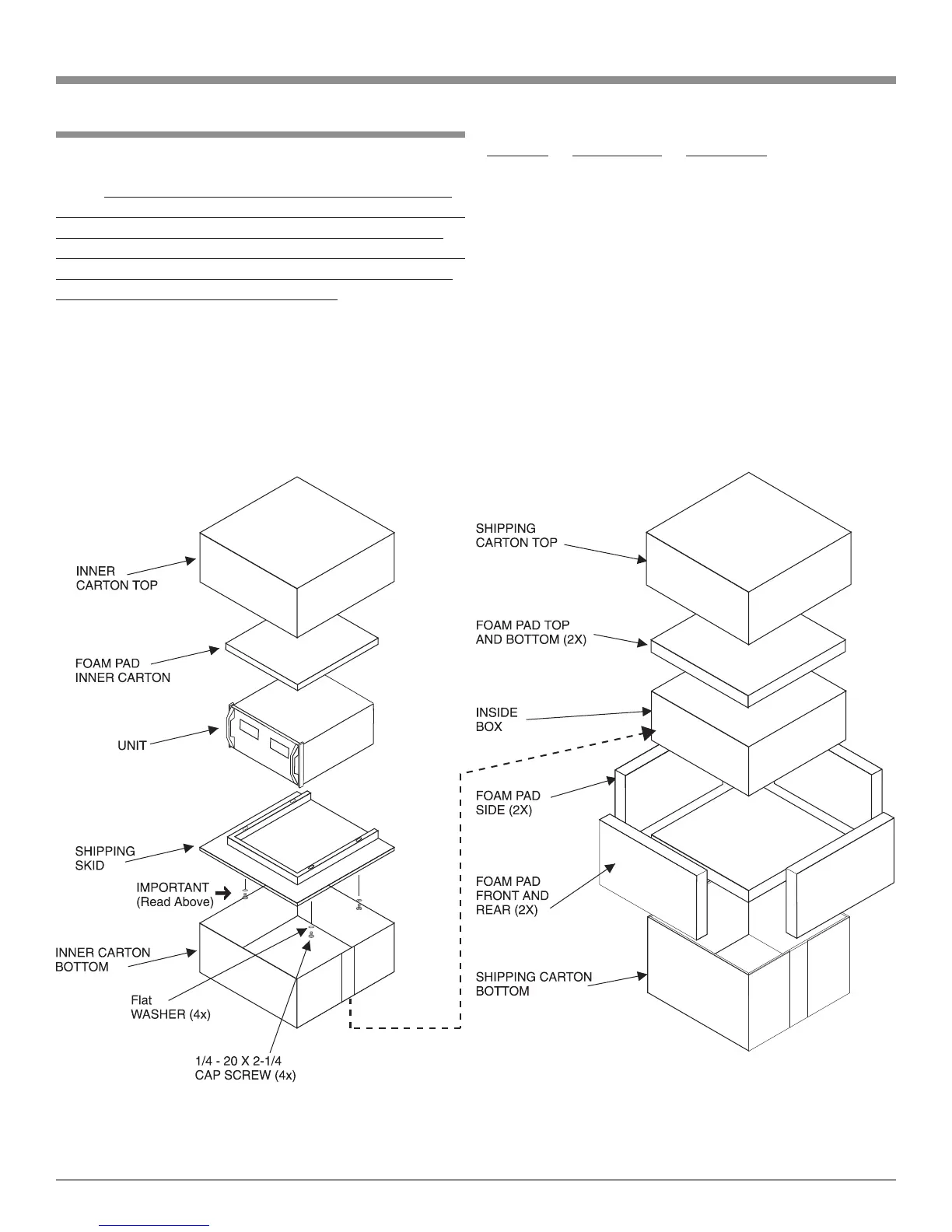

In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
below. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. Four 1/4 - 20x2-1/4
inch screws and washers must be used to fasten the unit
securely to the bottom pad and wood skid. This will ensure
the proper equipment location on the bottom pad. Failure
to do this will result in shipping damage.
Use the original shipping carton and interior parts only
if they are all in good serviceable condition. If a shipping
carton or any of the interior part(s) are needed, please
call or write Customer Service Department of McIntosh
Laboratory. Refer to page 3. Please see the Part List for the
correct part numbers.
Quantity Part Number Description
1 034052 Shipping carton top
1 034051 Shipping carton bottom
2 034054 Foam Pad (top and bottom)
2 034186 Foam Pad (front and rear)
2 034187 Foam Pad (sides)
1 034136 Inner carton top
1 034137 Inner carton bottom
1 034188 Foam Pad (inner carton)
1 034264 Shipping skid
4 401212 1/4 - 20x2-1/4 cap screw
4 104058 Flat washer
