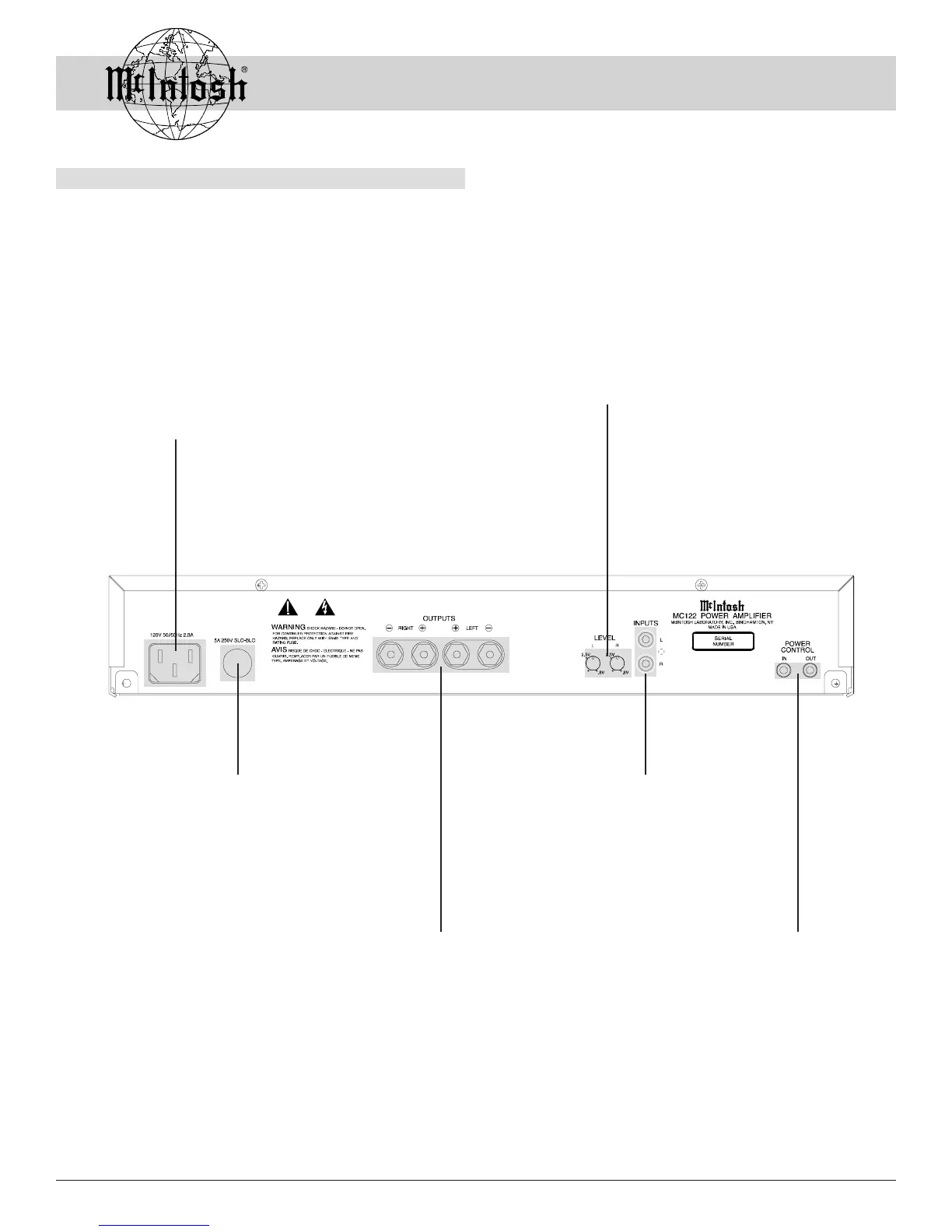

MC122 Rear Panel Controls and
Connections
Connect the MC122 power
cord to a live AC outlet. Refer
to information on the back
panel to determine the correct
voltage
Input LEVEL controls
for Right and Left
channels
POWER CONTROL IN
receives turn on/off sig-
nals from a McIntosh
component and the
POWER CONTROL
OUT sends that turn on/
off signal to the next
McIntosh component.
INPUTs for audio
cables from a
preamplifier or
control center au-
dio output
OUTPUT Connections for
4 or 8 ohm loudspeakers
Main Fuse holder,
refer to infromation
on the back panel
of your MC122 to
determine the cor-
rect fuse size and
rating
