McIntosh MCD12000 User Manual

6
WLAN ANT 1
WLAN ANT 2

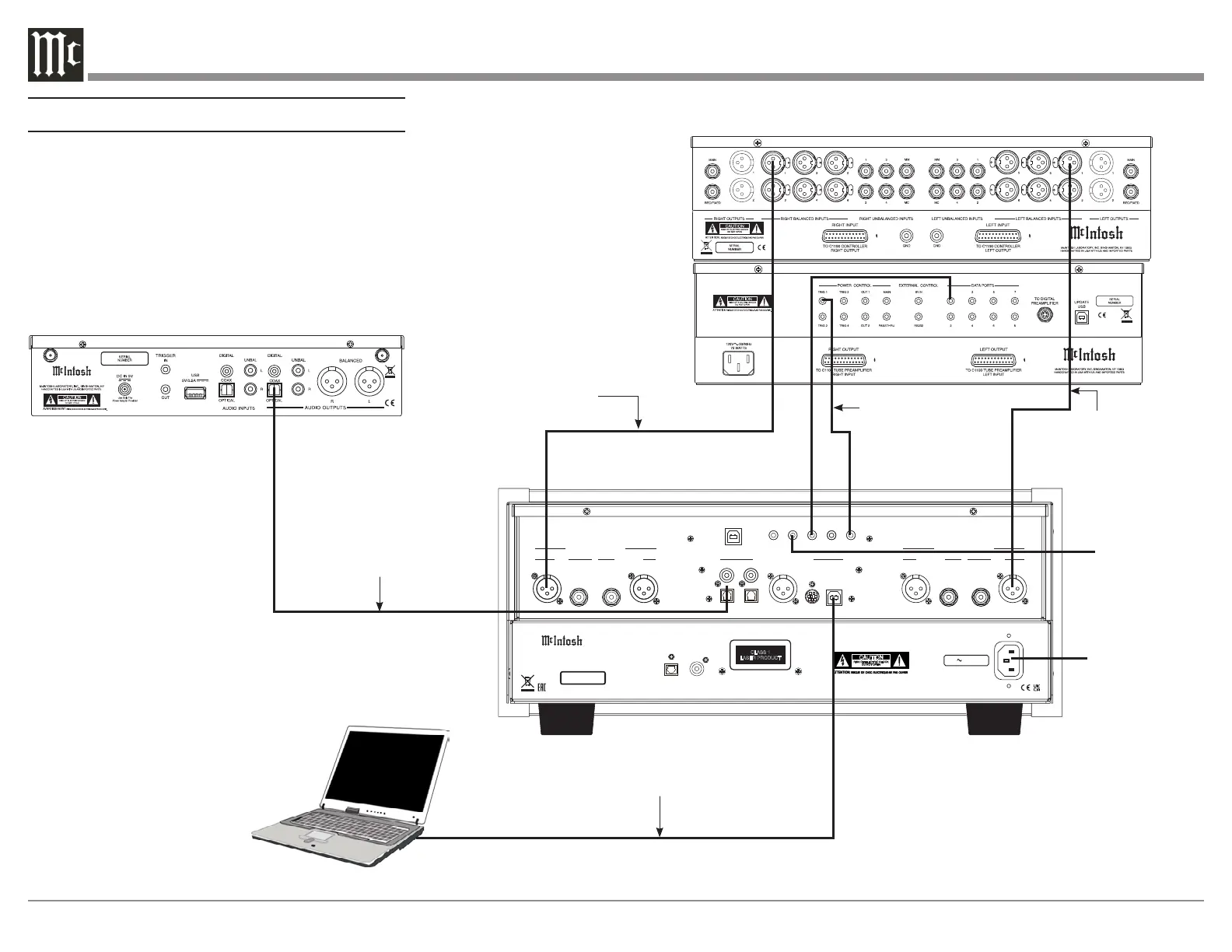

Connection Diagram
Here are some common connections for the
MCD12000:
/
120V 50 60Hz 50W
COAXIAL
OPTICAL
DIGITAL
AUDIO OUTPUTS
SERIAL
NUMBER
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
McINTOSH LABORATORY, INC.,
BINGHAMTON, NY
SACD/CD PLAYER
MCD12000
CLASS 1
LASER PRODUCT
Product complies with CRF Title 21, Ch. 1,
Subchapter ‘J’, Sections 1010.2, 1010.3, 1040.10
and 1040.11, in effect at date of manufacture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
UNBALANCEDBALANCED UNBALANCED
BALANCED
RIGHT AUDIO OUTPUTS
BALANCED
UNBALANCED BALANCEDUNBALANCED
LEFT AUDIO OUTPUTS
SERVICE
DATA IN OUT IN
POWER
CONTROL
DIGITAL AUDIO INPUTS
MCT
AES/EBU
IR INRS232
TUBE SOLID STATE
TUBESOLID STATE
COAX 1
OPTICAL 1
COAX 2
OPTICAL 2
USB
IR Sensor
Connect to
AC Power
Outlet
USB Cable to Computer
Digital signals can be sent to
Optical or COAX Inputs
Output can be sent via
Balanced or Unbalanced
cables (Right Balanced Tube)
Output can be sent via
Balanced or Unbalanced
cables (Right Balanced
Tube)
Connect a
Power Control
(Trigger) cable from
Preamp to Power
Control IN
