7
4. Next, take the Outer Platter and slowly lower it
onto the Inner Platter making sure to keep the
Outer Platter parallel to the Turntable surface as
it is being lowered. Refer to figure 3.
Place the Turntable in the location where it will be
used. Please keep in mind; the turntable should be the
greatest possible distance from the system loudspeak-
ers to reduce the chance of acoustic feedback. To
minimize the possibility of the cartridge stylus jump-
ing record grooves, place the turntable on a mechani-
cally stable surface such as wall shelving anchored to
wall studs. Perform the following assembly steps:
Note: It is recommended the installation and
adjustment of the McIntosh MT2 Precision
Turntable be performed by the Professionals
at your McIntosh Dealer.
1. Remove the protective mesh from the Turntable
Vertical Bearing Shaft. Refer to figure 1.
2. Using the supplied cloth gloves, place the belt
onto the circumference of the inner platter and
then onto the pulley of the motor. Rotate the in-
ner platter by hand while seating the belt into it.
Refer to figure 2.

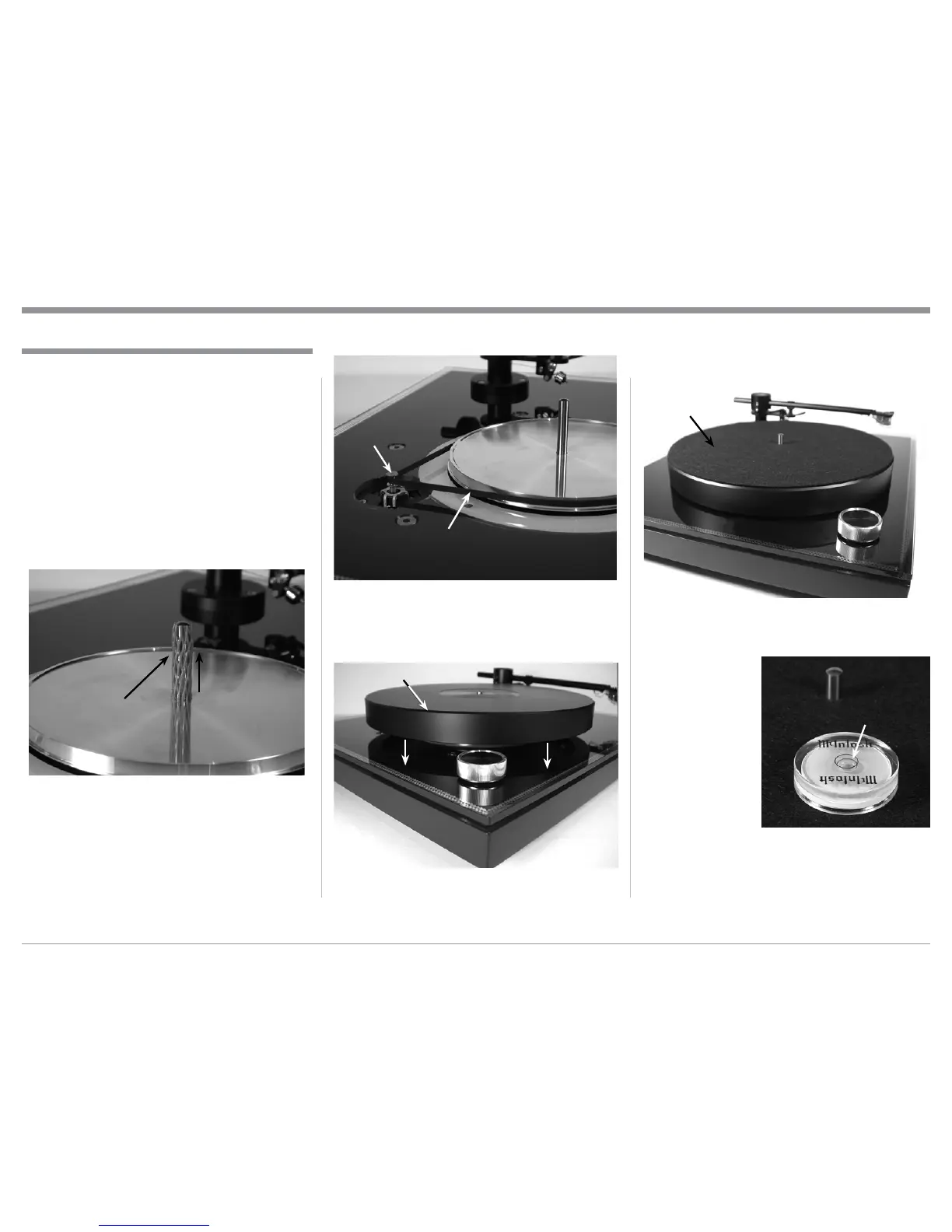

Assembling the Turntable
Figure 2
Motor Pulley
Belt
Figure 1
Remove
Protective
Mesh
5. Locate the Record Mat and place it on top of the
platter. Refer to figure 4.
6. Locate the McIntosh Bubble Level and place it on
the Record Mat. Refer to figure 5.
If the Bubble is
not in the center
circle of the
Bubble Level,
adjust the height
of the Turntable
Feet (by rotat-
ing them clock-
wise or counter
clockwise) until
it is level. Refer
to figures 6 and
7 on the next page.
Figure 3
Outer Platter
Figure 4
Record Mat
Assembling the Turntable
Bubble
Level
Figure 5
To Next Page
