McIntosh MX150 - Installation and Panel Connections

7
Dimensions

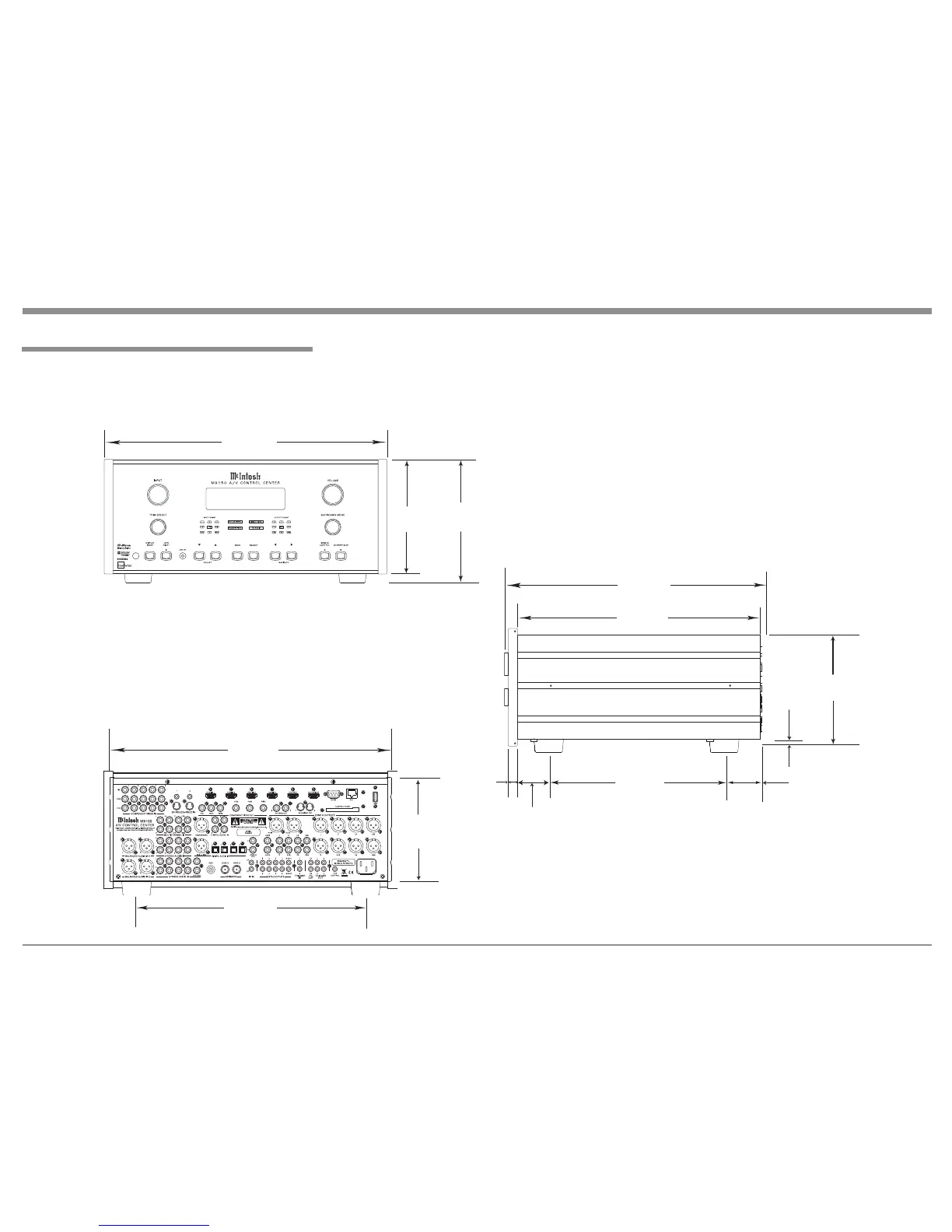

The following dimensions can assist in determining
the best location for your MX150.
Dimensions
Front View of the MX150
Rear View of the MX150
17-1/2"
44.45cm
7 -5/8"
19.37cm
7 -1/8"
18.10cm
Blu-ray HD Audio
29%
6-3/8"
16.19cm
13 -1/4"
33.66cm
17-1/8"
43.50cm
Side View of the MX150
16-1/2"
41.91cm
3/16"
0.48cm
13/16"
2.06cm
6-9/16"
16.67cm
10-9/16"
26.83cm
14-1/2"
36.83cm
2"
5.08cm
1-15/16"
4.92cm
