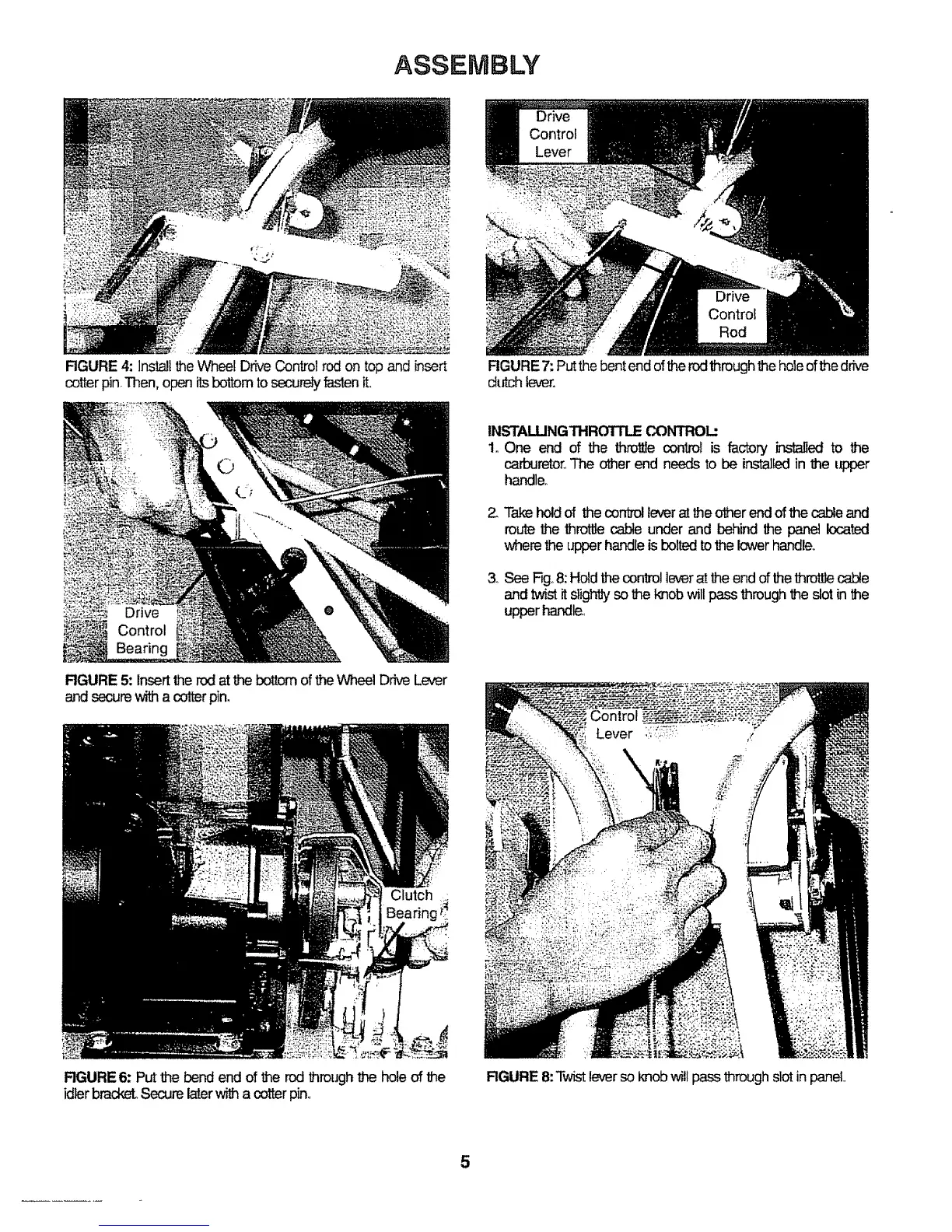

ASSEMBLY
RGURE 4: InstalltheWheel Drive Controlrod on top and insert
cotterpin.Then, open itsbottom to secureiyfastenit,
RGURE 5: Insert the rodat the bottomoftheWheelDrive Lever
andsecure witha cotterpin,
FIGURE6: Put the bend end of the rodthrough the hole of the
idler brade'L Securelaterwith a cotterpin_
RGURE 7:Putthebentend ofthe rodthroughthe holeof the dr_¢e
dt_ch lever.
INSTALUNGTHROTTLE CONTROL:
1. One end of the throt_econtrolis factory installedto the
carburetor,,The other end needs to be installedin the t_3per
handle_
2_Takeholdof the controlfeverat the other end of the cableand
routethe throttle cable under and behind the panel located
wherethe upper handleis boltedto thelowerhandle°
3,.See Flgo8:Holdthecontrol leverat the end of the throttlecable
and twistitslightly so the knob will pass through the slot inthe
upper handle,,
5
RGURE 8:Tw_"tleverso knobwillpass throughslot in panel,,
