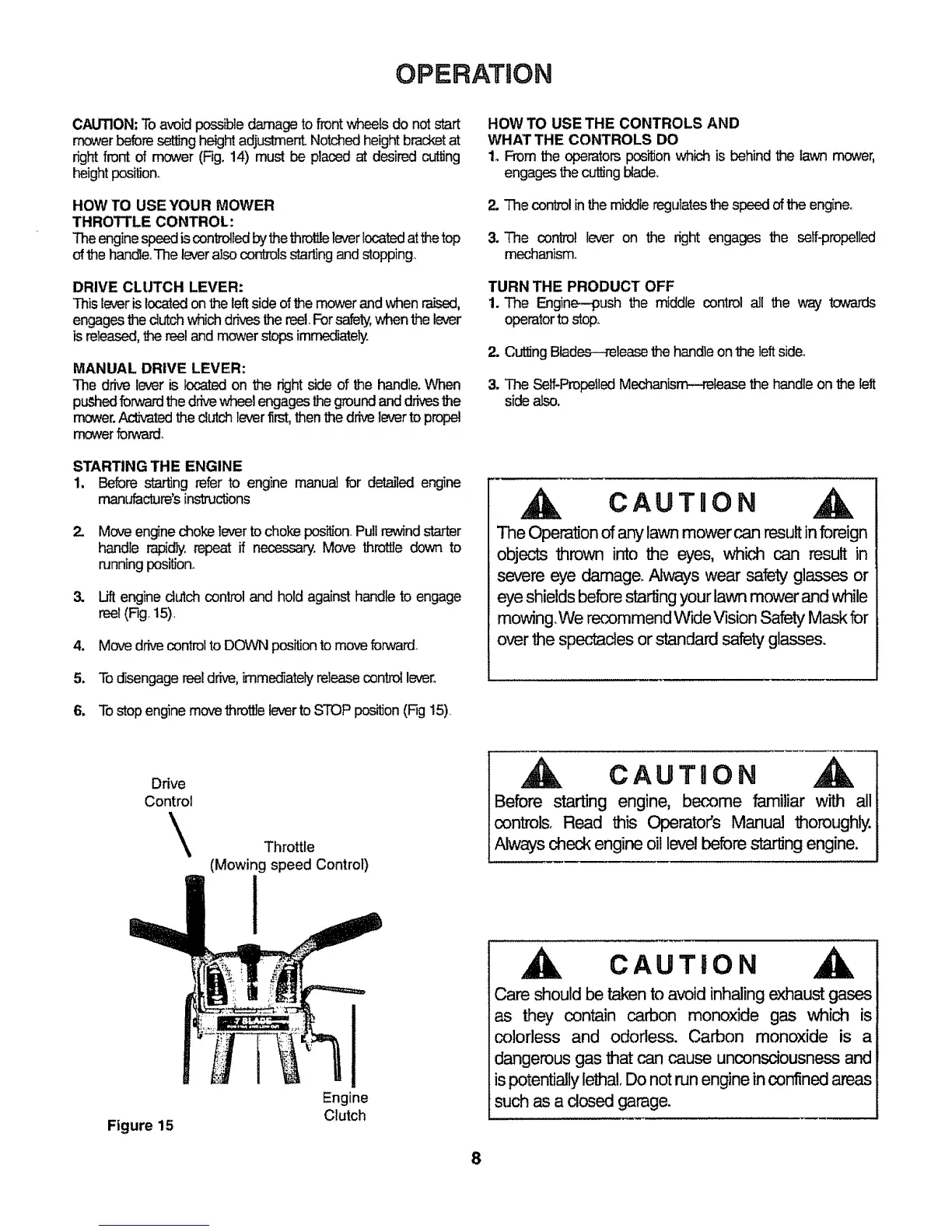

OPERATION
CAUllON; To avoid possible damage to front wheels do not start
mowerbeforesettingheightadjustment Notchedheightbracketat
right front of mower (Fig, 14) must be placed at desired cutting
heightposition.
HOW TO USE YOUR MOWER
THROTTLE CONTROL:
Theenginespeediscontrolledbythethrottleleverlocatedatthe top
ofthe handleoTheleveralsocontrolssta_ng andstopping,
DRIVE CLUTCH LEVER:
This leveris locatedon the leftsideof the mowerand whenraised,
engagestheclutchwhichdrives thereel,Forsafety,when the lever
is released,thereeland mower stopsimmediately.
MANUAL DRIVE LEVER:
The drive lever is located on the right side of the handle. When
pLied forwardthedrivewheelengagesthegroundanddrivesthe
mower.Activatedthe clutchleverfirst,thenthe driveleverto propel
mowerforward,
STARTING THE ENGINE
1. Before starling refer to engine manual for detailed engine
mant_cture's inst_ctions
2. Move enginechoke leverto chokeposi_on.Pull rewindstarter
handle rapidly,repeat if necessary, Move throttledown to
runningposition.
& Lift engine dutch control and hold against handle to engage
reel (Fig.t5)
4. Move drivecontroltoDOWN positiontomove forward
5. Todisengageree!drive,immediatelyreleasecontrollever.
6, Tostop enginemovethrotUeleverto STOP position(Fig 15)
HOW TO USE THE CONTROLS AND
WHAT THE CONTROLS DO
1. From the operators pos_onwhich is behind the lawn mower,
engagesthecuttingblade.
2. The controlin themiddleregulatesthespeedof the engine,
3. The control lever on the right engages the self-propelled
mechanism.
TURN THE PRODUCT OFF
1. The Engine--gush the middle control all the way towards
operatorto stop
2. Cutting Blades--._leese the handleon the leftside.
3. The Self-PropelledMechanism--release the handleon the left
sidealso.
CAUTHON
The Operation of any lawn mower can result in foreign
objects thrown into the eyes, which can result in
severe eye damage, Always wear safety glasses or
eye shields before starting your lawn mower and while
mowing. We recommend Wide Vision Safety Mask for
over the spectacles or standard safety glasses.
Drive
Control
\
Throttle
(Mowing speed Control)
CAUTHON
Before starting engine, become familiar with all
controls. Read this Operator's Manual thoroughly.
Always check engine oil level before starting engine.
Figure 15
Engine
Clutch
CAUTION
Care should be taken to avoid inhaling exhaust gases
as they contain carbon monoxide gas which is
colorless and odorless. Carbon monoxide is a
dangerous gas that can cause unconsciousness and
is potentially lethal Do not run engine in confined areas
such as a dosed garage.
8
